Xilinx Platform Cable USB II User Manual

Platform Cable USB II
DS593 (v1.2.1) March 17, 2011 www.xilinx.com
24
Note: The propagation delay from TCK to TDO is 26 ns. Because Figure 26 shows a propagation delay of 37 ns, the difference of 11 ns
is attributable exclusively to input delays in the cable. At 12 MHz, there is still sufficient setup time before the cable samples prior to the
next negative TCK transition.
X-Ref Target - Figure 25

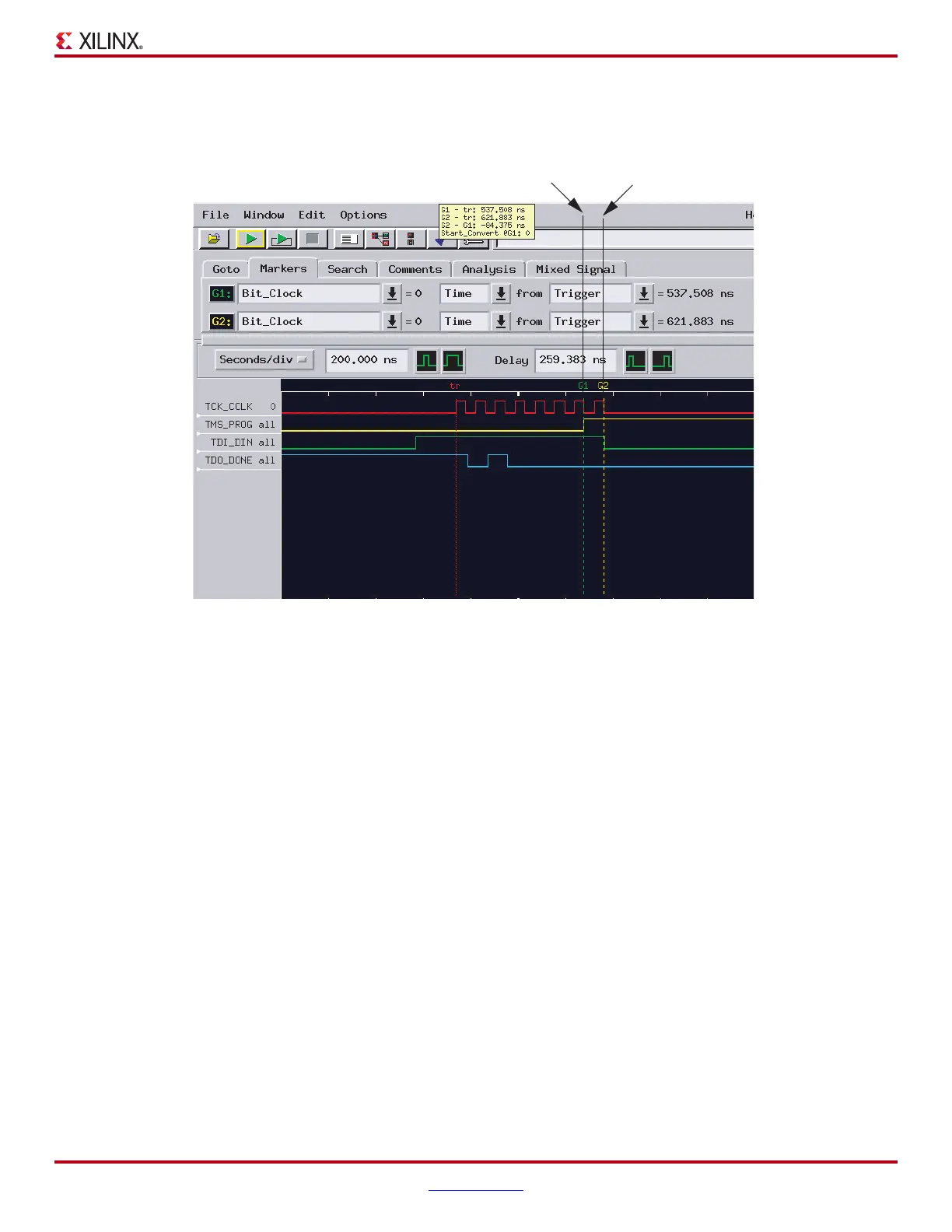

Figure 25: TDI_DIN_MOSI and TMS_PROG_SS Timing with Respect to TCK_CCLK_SCK
TMS_PROG changes on Negative
Edge of TCK_CCLK (G1)
TDI_DIN Changes
on Negative Edge
of TCK_CCLK (G2)
DS593_25_021408

Xilinx Platform Cable USB II Specifications

General

Target Interface	JTAG
Supported Devices	Xilinx FPGAs and CPLDs
Operating System Support	Windows, Linux
Manufacturer	Xilinx
Model	Platform Cable USB II
Host Interface	USB
Interface	USB
Cable Length	1.8 meters
