Platform Cable USB II

DS593 (v1.2.1) March 17, 2011 www.xilinx.com

X-Ref Target - Figure 26

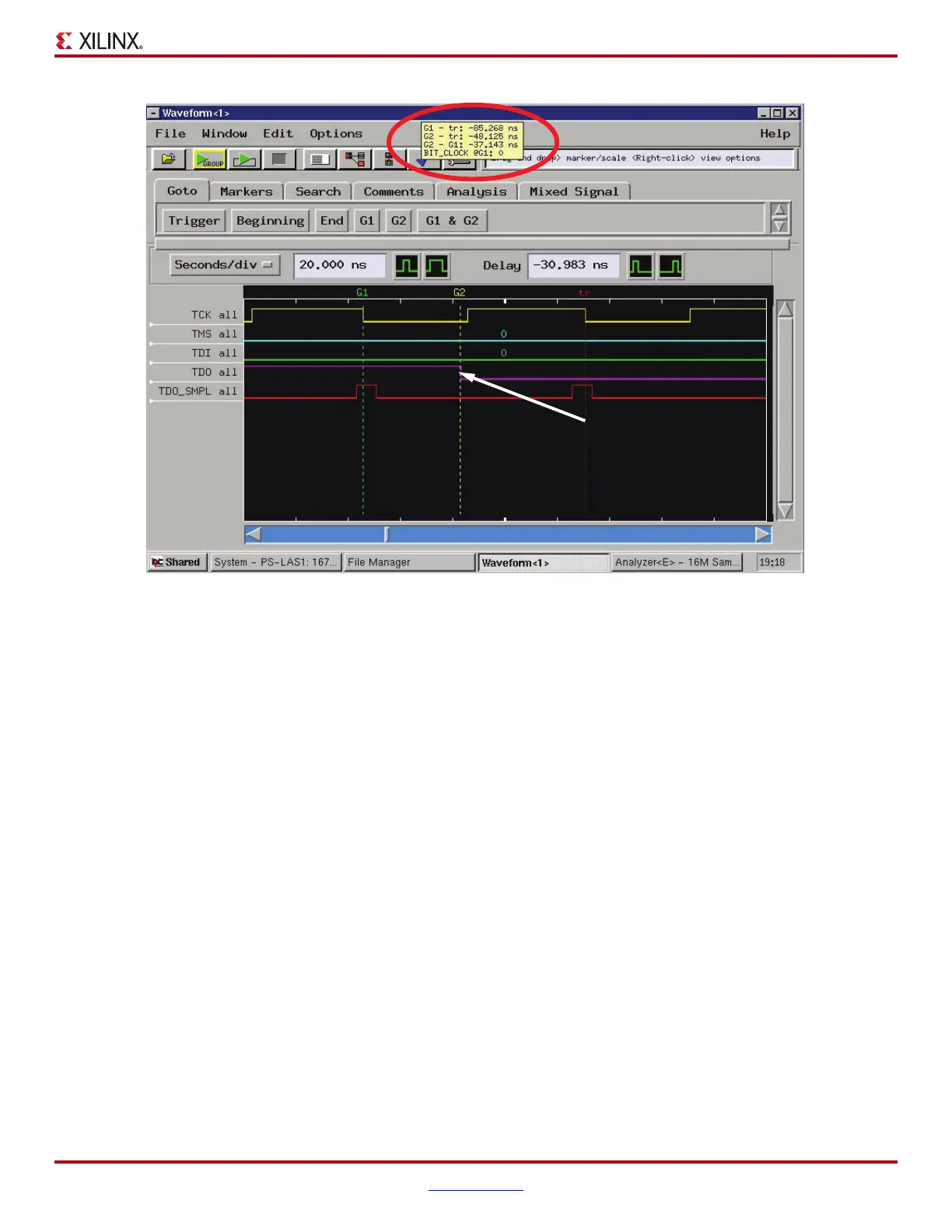

Figure 26: TDO Sampling Example at 12 MHz (TDO Propagation Delay)

DS593_26_021408

Negative TCK transition at G1 causes target device to

change TDO state, which propagates to the cable at G2 in

less than ½ clock cycle in this 12-MHz example.
