Platform Cable USB II

DS593 (v1.2.1) March 17, 2011 www.xilinx.com

X-Ref Target - Figure 27

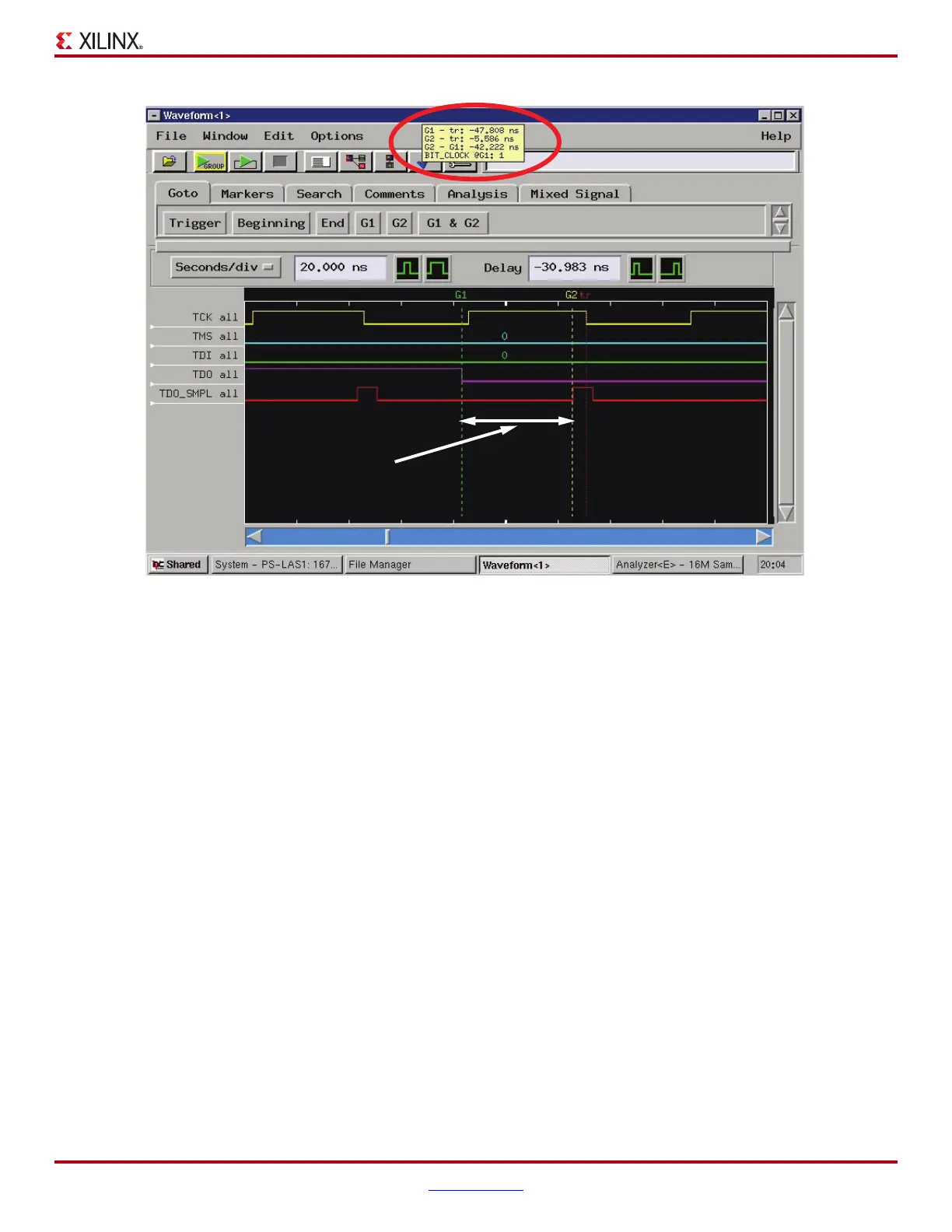

Figure 27: TDO Sampling Example at 12 MHz (TDO Setup Time Relative to Sampling Point)

DS593_27_011508

TDO setup time prior to internal sampling clock (G2 – G1)

is 42ns in this 12-MHz example.
