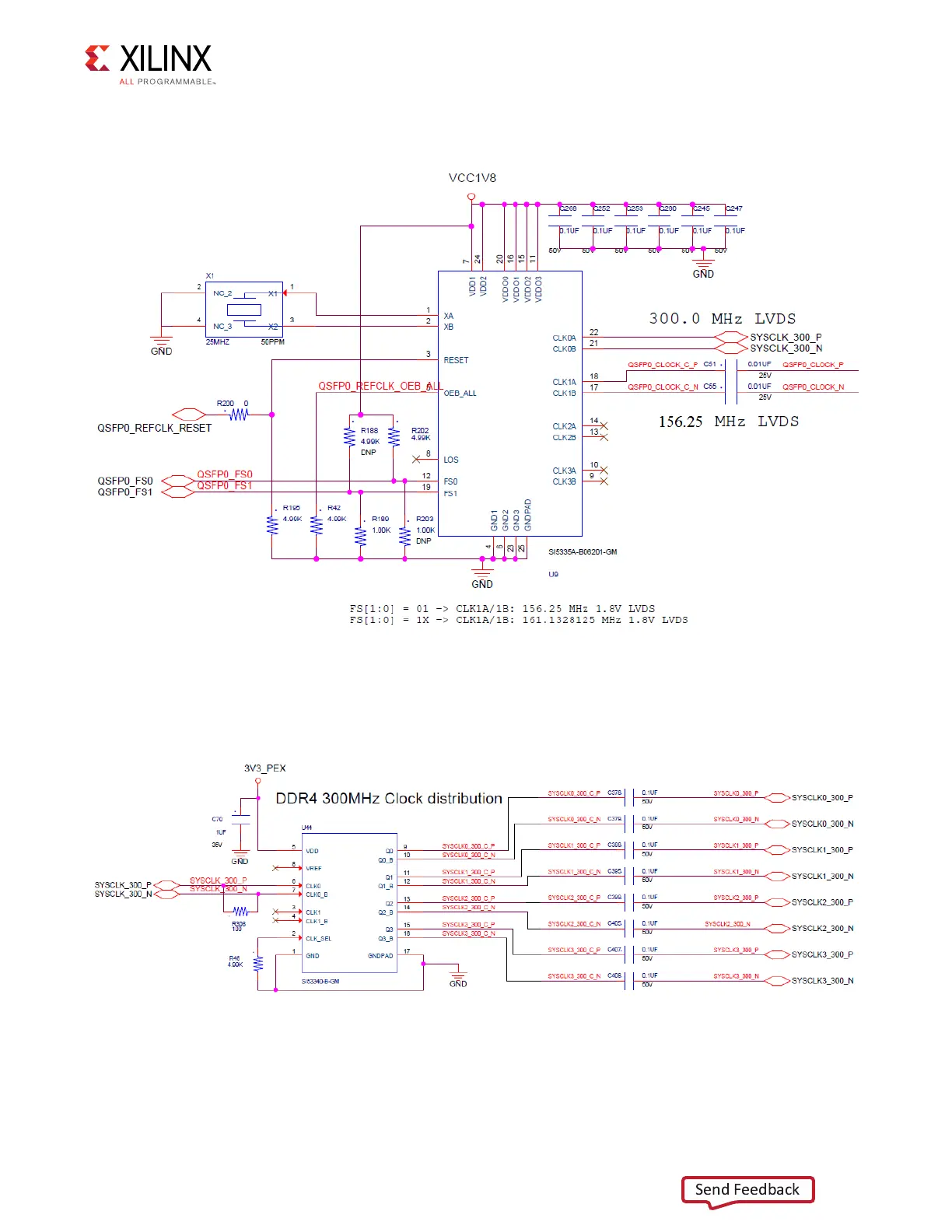

The system and QSFP0 clock source Si5335A U9 is shown in Figure 3-6.
The 300 MHz clock buffer Si53340 U44 is shown in Figure 3-7.
X-Ref Target - Figure 3-7
Figure 3-7: 300MHz and QSFP0 156.25MHz Clock Source
X19975-103017
X-Ref Target - Figure 3-8
Figure 3-8: 300 MHz Clock Buffer
X19976-103017
