Detailed Description
R
6d. Downstream Interface Connector
The downstream interface connector (P4) passes serial configuration information to the
DUT in the downstream prototype platform board (Figure 8).
7. Prototyping Area
The prototyping area accommodates 0.10-inch spaced ICs. The kit contains headers that
can be soldered to the breakout area, if desired. Power and ground buses are located at the
top and bottom edges, respectively, of the prototyping area.
8. VCCO-Enable Supply Jumpers
Virtex-5 FPGAs have 9 to 33 SelectIO banks (J44 and J45), labeled VCCO_0 to VCCO_34,
each with a V
CCO
-enable supply jumper. The V
CCO
-enable supply jumpers can connect
each bank to one of the two onboard supplies, the V
CCINT
or V
CCO
supplies. These jumpers
must be installed for the Virtex-5 device to function normally.
9. VBATT
An onboard battery holder (B1) is connected to the VBATT pin of the DUT. If an external
power supply is used, the associated jumper must be removed; instead, use a 12-mm
lithium coin battery (3V).

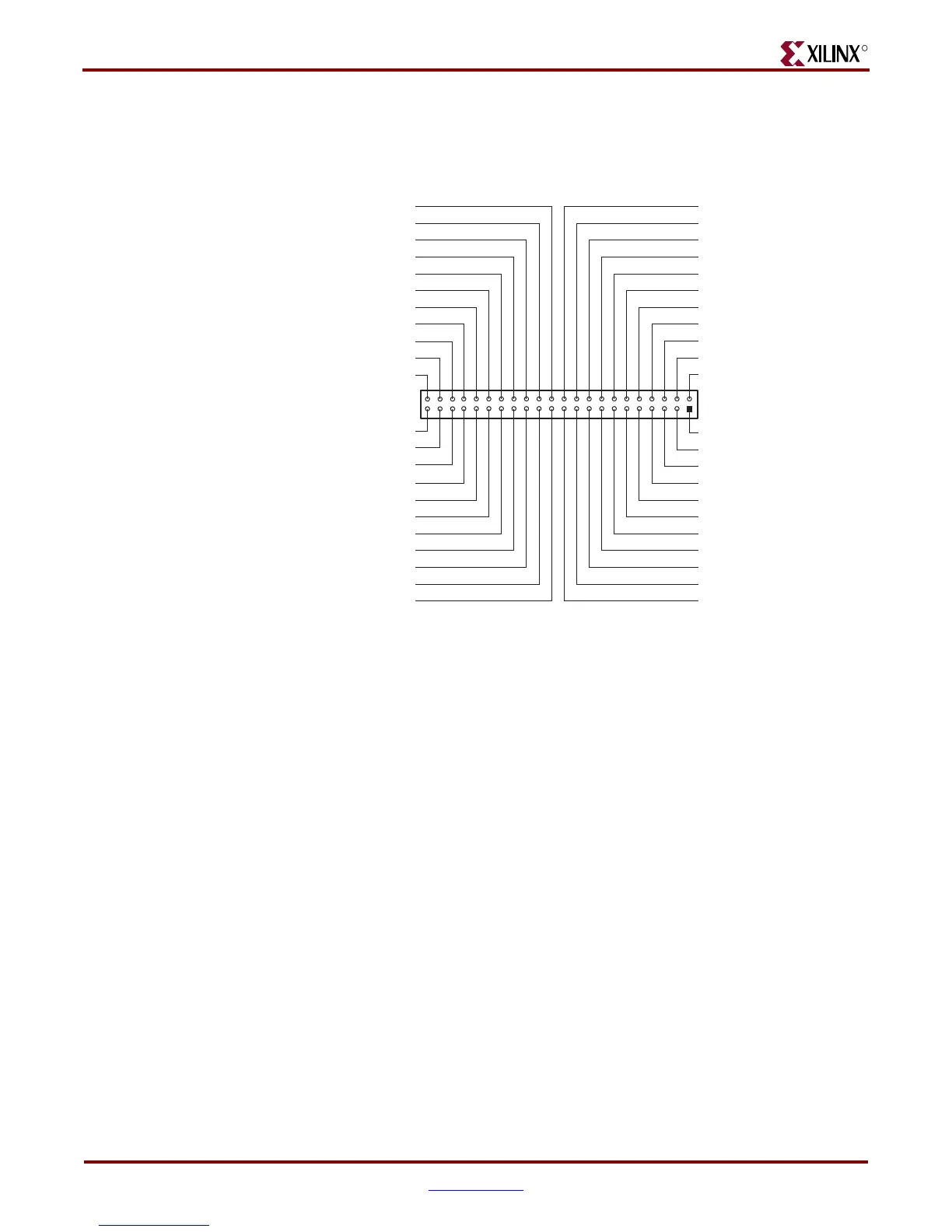

X-Ref Target - Figure 8
Figure 8: Downstream Interface Connector (44-Pin Male)
UG229_08_050407
GND
NC
NC
GND
GND
GND
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
DOUT_BUSY
NC
NC
CLK
DONE
NC
NC
NC
NC
INIT
PROG
NC
NC
NC
NC
NC
NC
NC
GND
GND
GND
GND
GND
GND
GND
NC
NC
GND
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22
B1 B2 B3 B4 B5 B6 B7 B8 B9
B10 B11 B12
B13 B14 B15 B16 B17 B18 B19 B20 B21 B22
