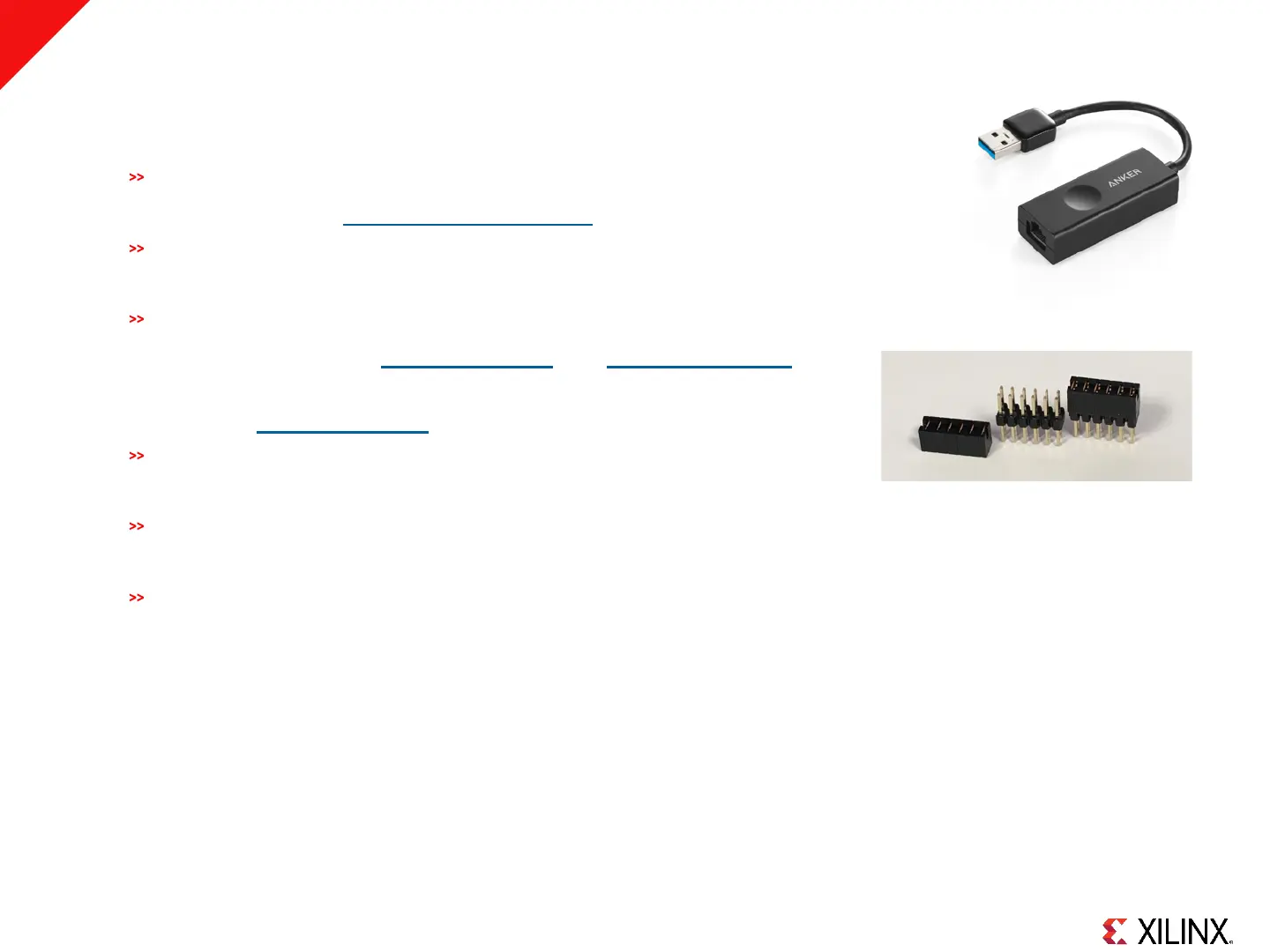

Optional Test Equipment
˃ This test requires optional equipment
Two Ethernet ports on host, set to 192.168.1.2 and 192.168.0.2
‒ Tested with: Anker USB to Ethernet adapters
Frequency Source @ 148.5 MHz
‒ Setup shown on following pages
Shunt jumpers on PMODs
‒ J55: Suggested MNT-106-BK-G and S2021EC-06-ND;
combined as shown to the rightmost
‒ J87: MNT-106-BK-G as shown to the leftmost
Jumpers on PROTO Header
‒ Connect pins 6 to 8, 10 to 12, 14 to 16, 18 to 20, and 22 to 24
Jumpers for System Controller Programming
‒ Follow instructions in BIT GUI
Mictor Loopback adapter, see setup on following pages
Note: Presentation applies to the ZCU106
