Xilinx ZCU106

SMA Cable Setup

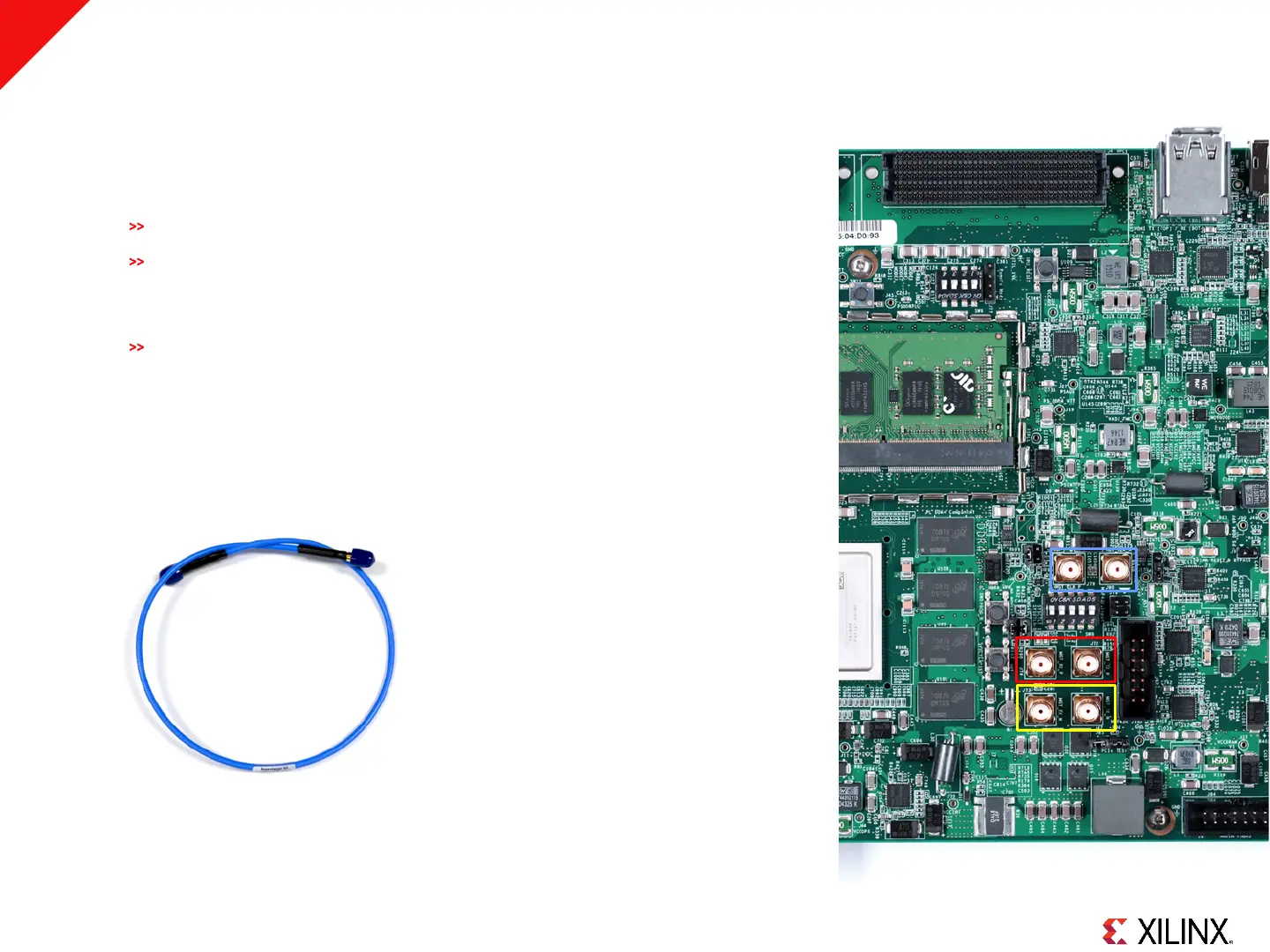

˃ Hook up the SMA cables as shown
˃ IBERT Test:
J72 to J74 (Red)
J73 to J42 (Yellow)
˃ IPI Clocking Test
Connect J79 and J80 (Blue) to a 148.5 MHz clock source
Note: Presentation applies to the ZCU106
