Xilinx ZCU106

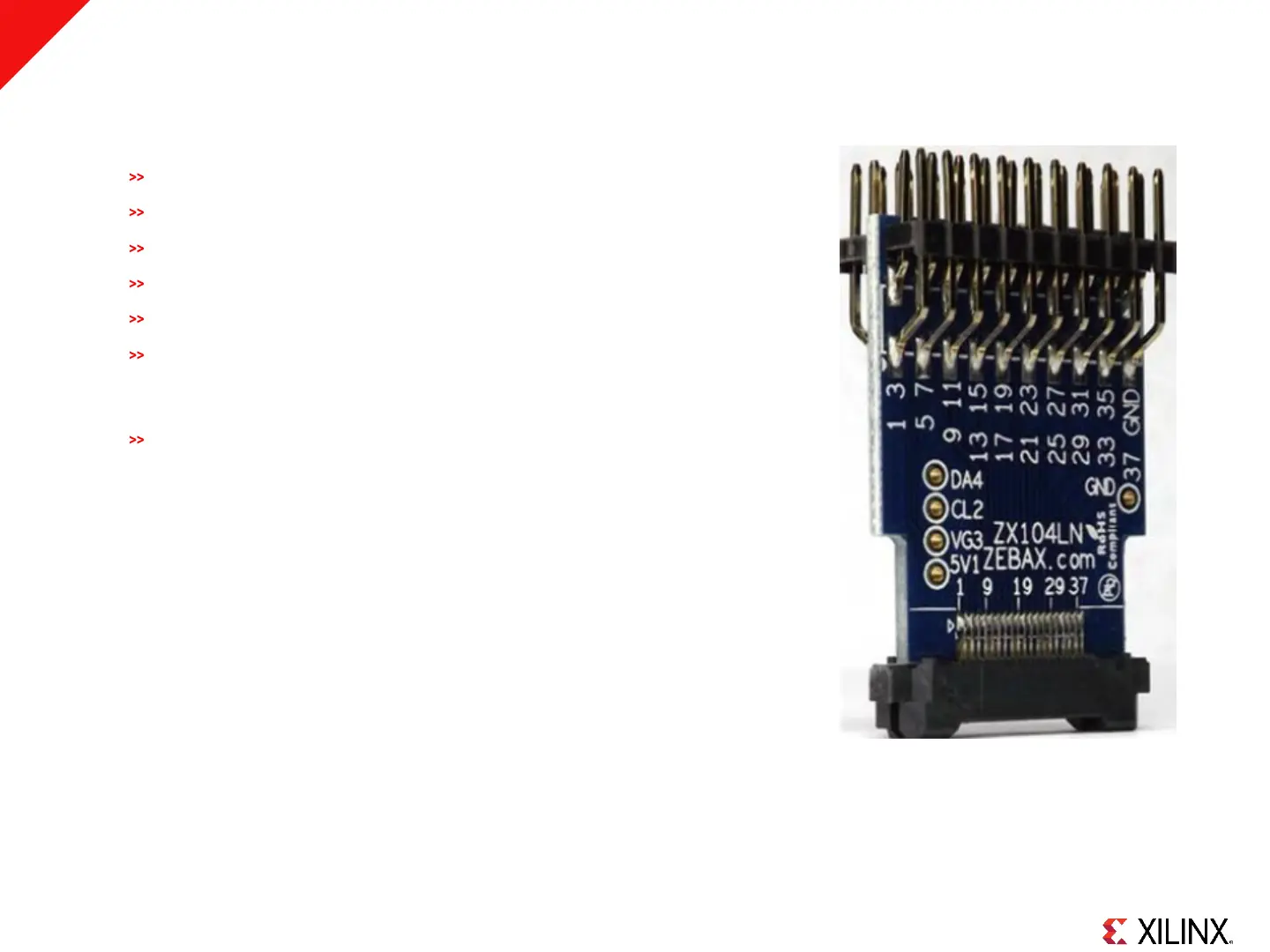

ZCU106 Mictor Loopback Adapter Setup
˃ Mictor Jumper even side (not shown) as follows:
6 to 8
10 to 16 (use a wire)
16 to 20
22 to 24
26 to 28
36 to 38 (use a wire)
˃ Insert into Mictor slot P6
Make sure they are firmly inserted
Note: Presentation applies to the ZCU106
