Hardware Bring-Up
Figure 2-4 through Figure 2-6 show the steps for setting the USB-UART port.
X-Ref Target - Figure 2-4

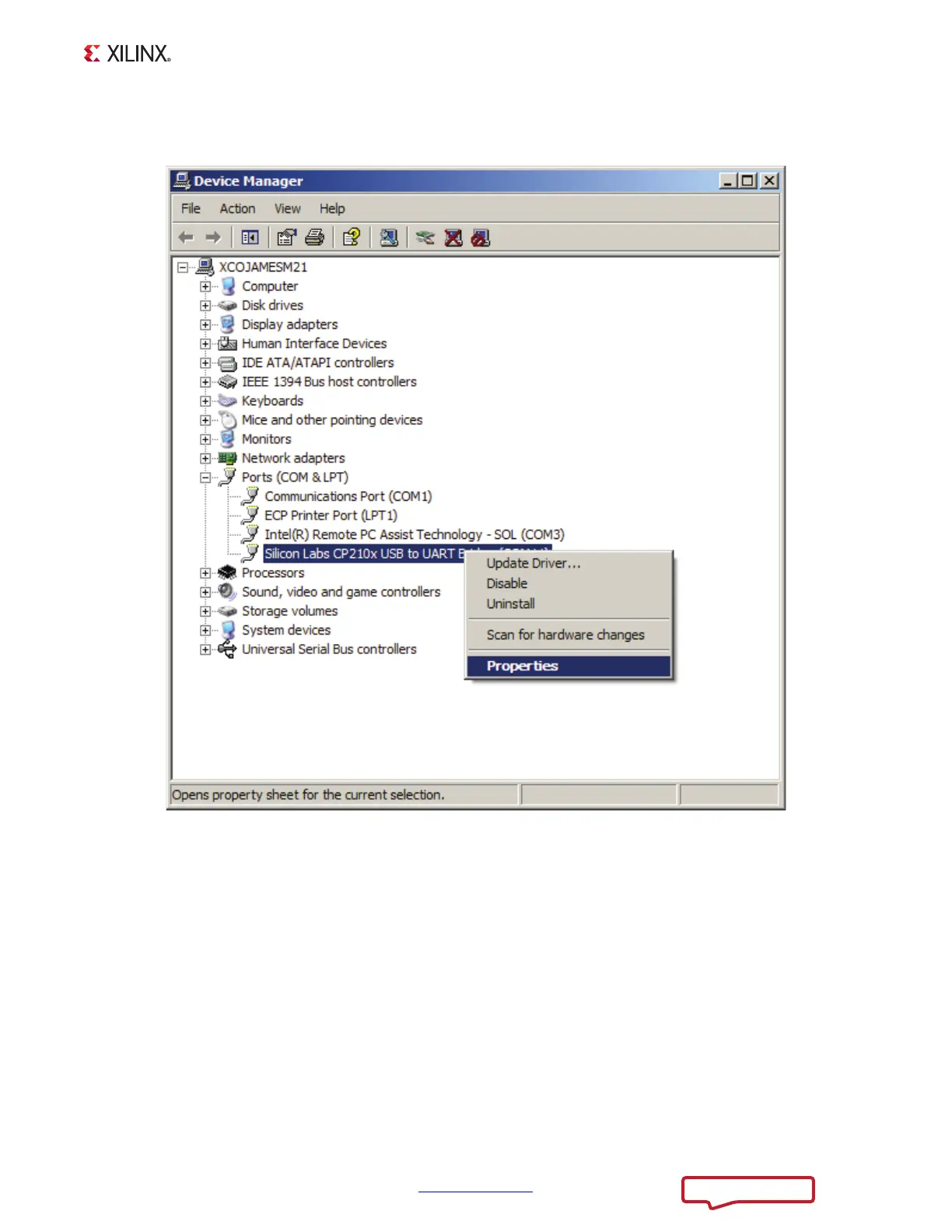

Figure 2-4: Configuring the Driver
