Xilinx Zynq UltraScale+ User Manual

Zynq UltraScale+ VCU TRD User Guide 45
UG1250 (v2019.1) May 29, 2019 www.xilinx.com
Chapter 3: APU Software Platform
HDMI. Here only half of each stream is displayed to showcase eight different streams on a
single screen.
X-Ref Target - Figure 3-18

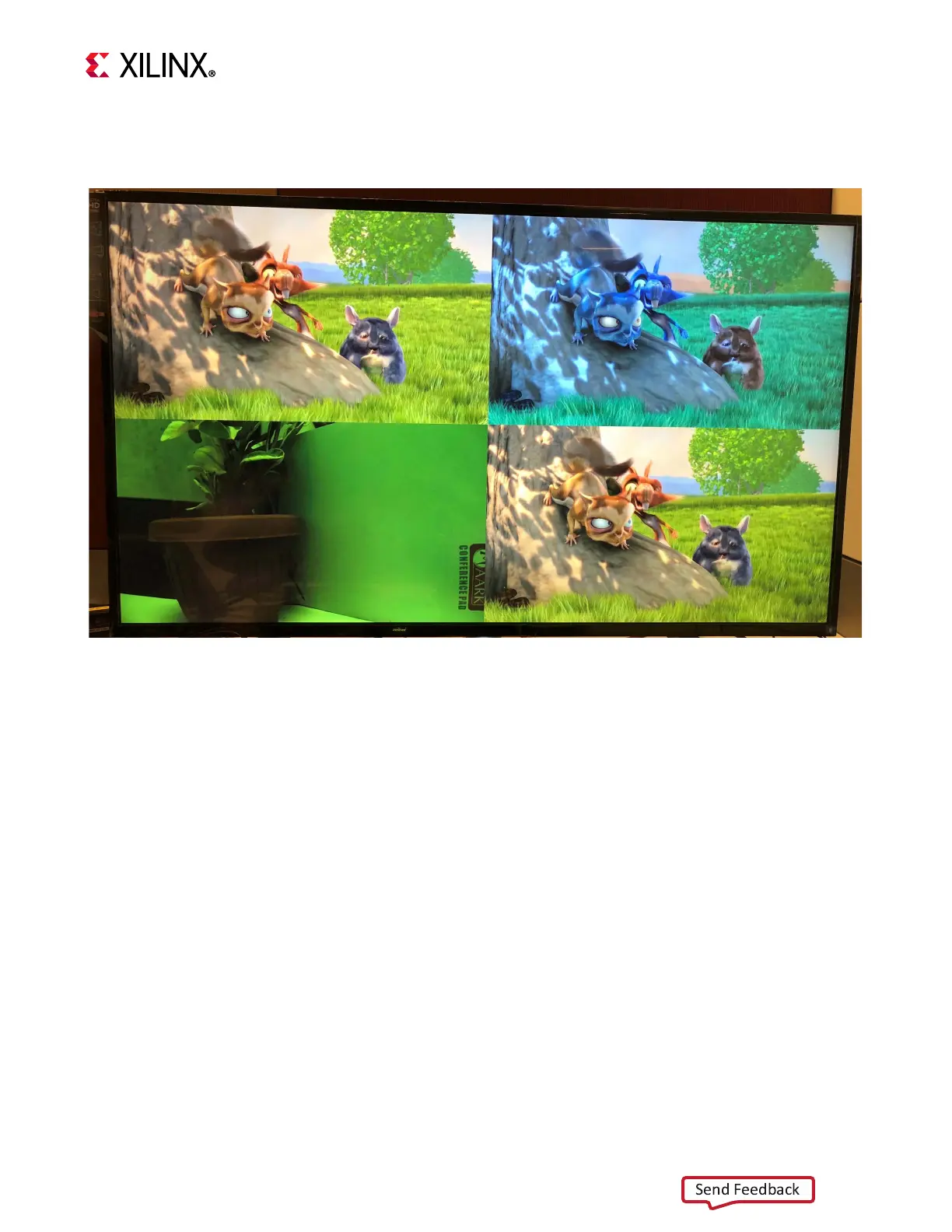

Figure 3-18: Multi-Stream—3 HDMI and 1 MIPI Input Sources @ 1080p60
X20153-112718
Send Feedback

Xilinx Zynq UltraScale+ Specifications

General

Manufacturer	Xilinx
Model	Zynq UltraScale+
Category	SoC
Processor Cores	Quad-core ARM Cortex-A53, Dual-core ARM Cortex-R5
FPGA Fabric	UltraScale+ FPGA
Memory Interfaces	DDR4, DDR3, LPDDR3, LPDDR4
Connectivity	Gigabit Ethernet, USB 3.0, SATA, PCIe
Video Codecs	H.264
Power Consumption	Varies depending on specific device configuration and usage
Operating Temperature	Commercial: 0°C to +85°C, Industrial: -40°C to +100°C
