Xinje DF3E Series User Manual

3

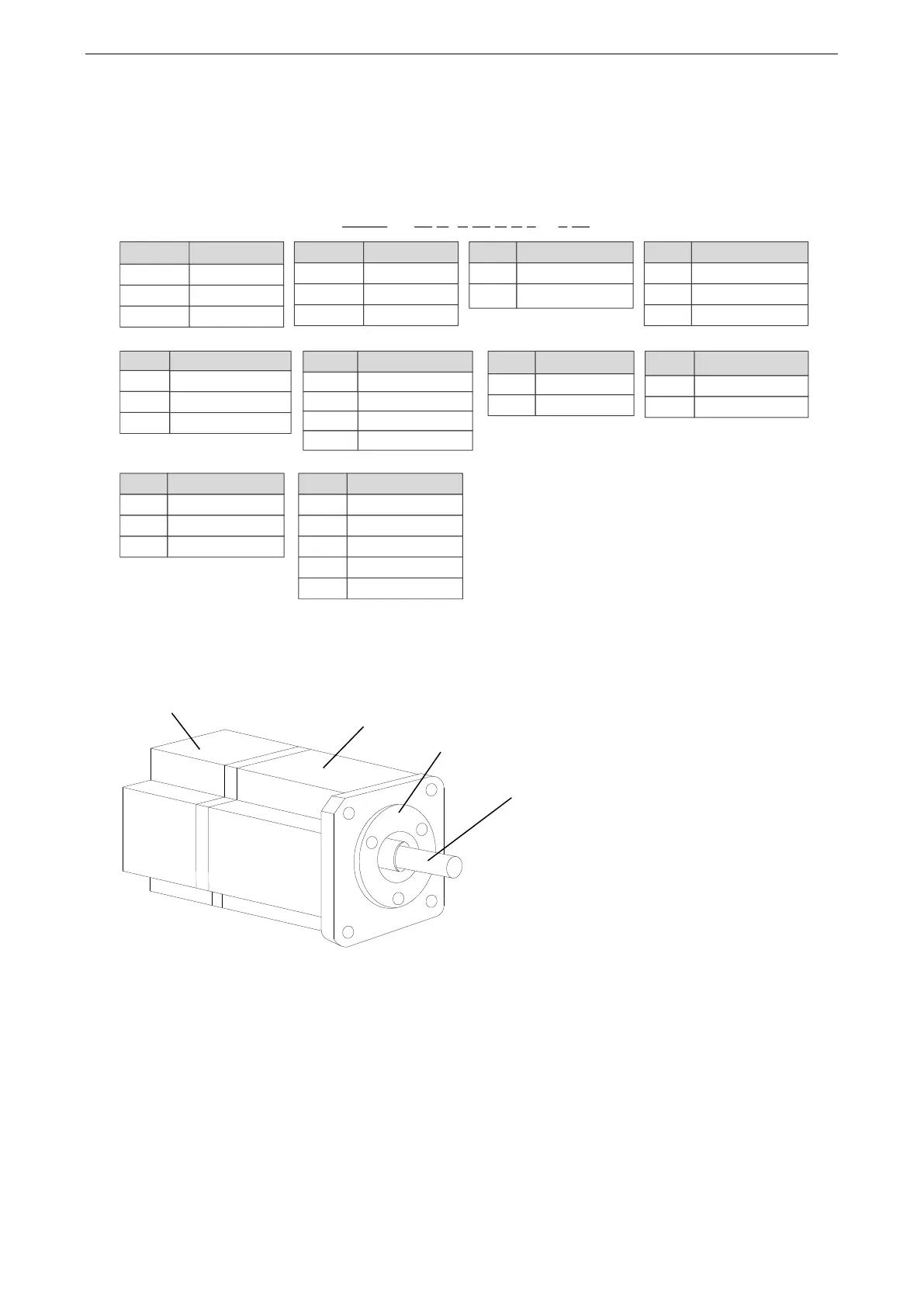

1.2 Servo motor selection
1.2.1 Model name
MF3S – 60 C S 30 B Z 1 –5 04
Series Inertia
MF3S Low inertia
MF3G
Medium inertia
MF3H High inertia
Display Base No.
40 40 flange
60 60 flange
80 80 flange
Display
Encoder type
C Magnetic encoder
T
Photoelectric encoder
Display Encoder resolution
S Single turn 17 bits
M Multi-turn 17 bits
L Multi-turn 23 bits
Display
15
20
Rated speed(rpm)
1500
2000
30 3000
Display
Plug type
1 AMP plug
2 Aviation plug
Display
Voltage level
2 24V
5 48V
6 60V
Display
Power
01 100W
02 200W
04 400W
07 750W
15 1.5KW
Display Shaft
A
With key, no oil seal
B
With key and oil seal
C
No key, no oil seal
D
No key, with oil seal
Display
Brake
No brake
Z With brake
1.2.2 Description of each part
Encoder
frame
flange
Output Shaft (Drive Shaft)
