Xinje DF3E Series

10

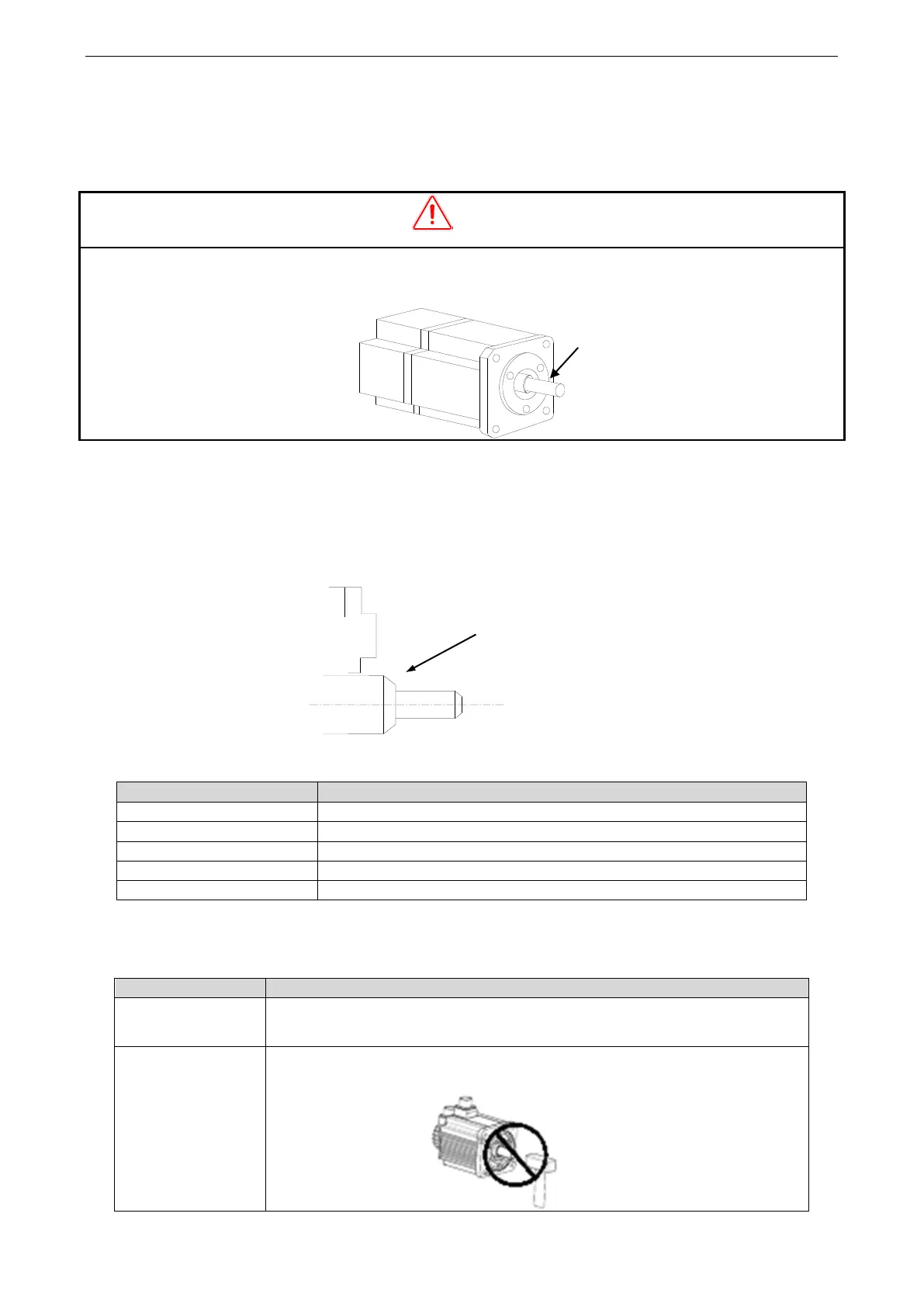

2.2 Servo motor installation
MF series servomotors can be installed either horizontally or vertically. The service life of the servomotor can be
shortened or unexpected problems might occur if it is installed incorrectly or in an inappropriate location. Follow
these installation instructions carefully.
CAUTION
1． The end of the motor shaft is coated with antirust. Before installing, carefully remove all of the paint using a
cloth moistened with paint thinner.
2． Avoid getting thinner on other parts of the servo motor.
2.2.1 Environment condition
When used in places with water droplets or oil droplets, the protection effect can be achieved through the
treatment of motors. However, in order to seal the through part of the shaft, please specify the motor with oil seal.
Connectors should be installed downward.
MS series servo motors are for indoor use. Please use them under the following installation conditions:
Item
Description
Use ambient temperature
-20℃~60℃ (relative humidity)
Use ambient humidity
-10℃~40℃ (no freeze)
Storage temperature
20%~90%RH (no condensation)
Storage humidity
20%~90%RH (no condensation)
Protection level
IP66
2.2.2 Installation cautions
Item
Description
Antirust treatment
◆ Before installation, please wipe the "rust-proof agent" of the extension end
of the servo motor shaft, and then do the relevant rust-proof treatment.
Encoder cautions
◆ It is forbidden to impact the extension end of the shaft during installation,
otherwise the internal encoder will be broken.
Antirust
Through part of the shaft
