Xinje DF3E Series User Manual

31

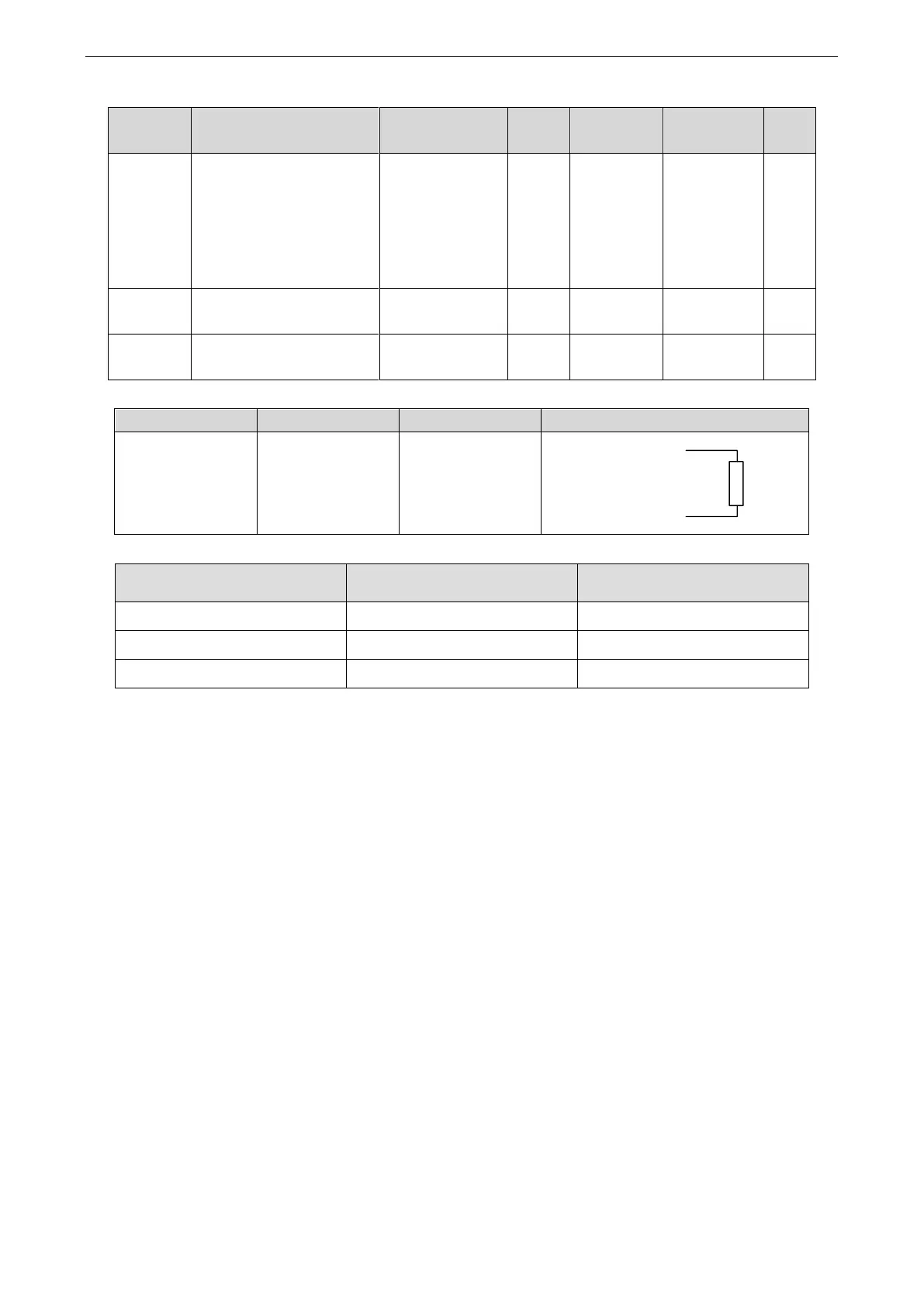

◼ Related parameter
Parameter
Meaning
Default setting
Unit
Setting
range
Modify
Effe
ctive
P0-24
Power protection mode of
discharge resistance
0 - cumulative discharge
time
1 - average power mode 1
0
-
0~1
Servo bb
At
once
P0-25
Power value of discharge
resistance
Set as model
W
1~65535
Servo bb
At
once
P0-26
Discharge resistance
value
Set as model
Ω
1~500
Servo bb
At
once
1. Hardware wiring
Power
Hardware terminal
Notes
Below 750W
DC+/RB+, RB-
External resistor
RB-
DC+/RB+
2. Recommended brake resistance specifications
Servo driver model
External regeneration resistance
(recommended resistance)
External regeneration resistance
(recommended power value)
DF3E-0103
27Ω
Above 100W
DF3E-0410
10Ω
Above 100W
DF3E-0720
5Ω
Above 100W
Note:
(1) The smaller the resistance is, the faster the discharge will be, but it is easy to break down the resistance if it is
too small. Therefore, the lower limit should be as close as possible but not less than the lower limit when selecting
the type.
(2) When wiring, please use high temperature resistant and flame-retardant wires, and pay attention that the
regenerative resistance surface does not contact with the wires.
