2. Terminal effectiveness description
The following table takes /SPD-D as an example, /SPD-A, /SPD-B signals are the same.
Parameter setting
Signal/SPD-D terminal input status
Signal/SPD-D terminal logic
P5-27=n.0000
No need external terminal input
Invalid
P5-27=n.000□
SI□ terminal no signal input
P5-27=n.001□
SI□ terminal has signal input
P5-27=n.0010
No need external terminal input
Valid
P5-27=n.000□
SI□ terminal has signal input
P5-27=n.001□
SI□ terminal no signal input

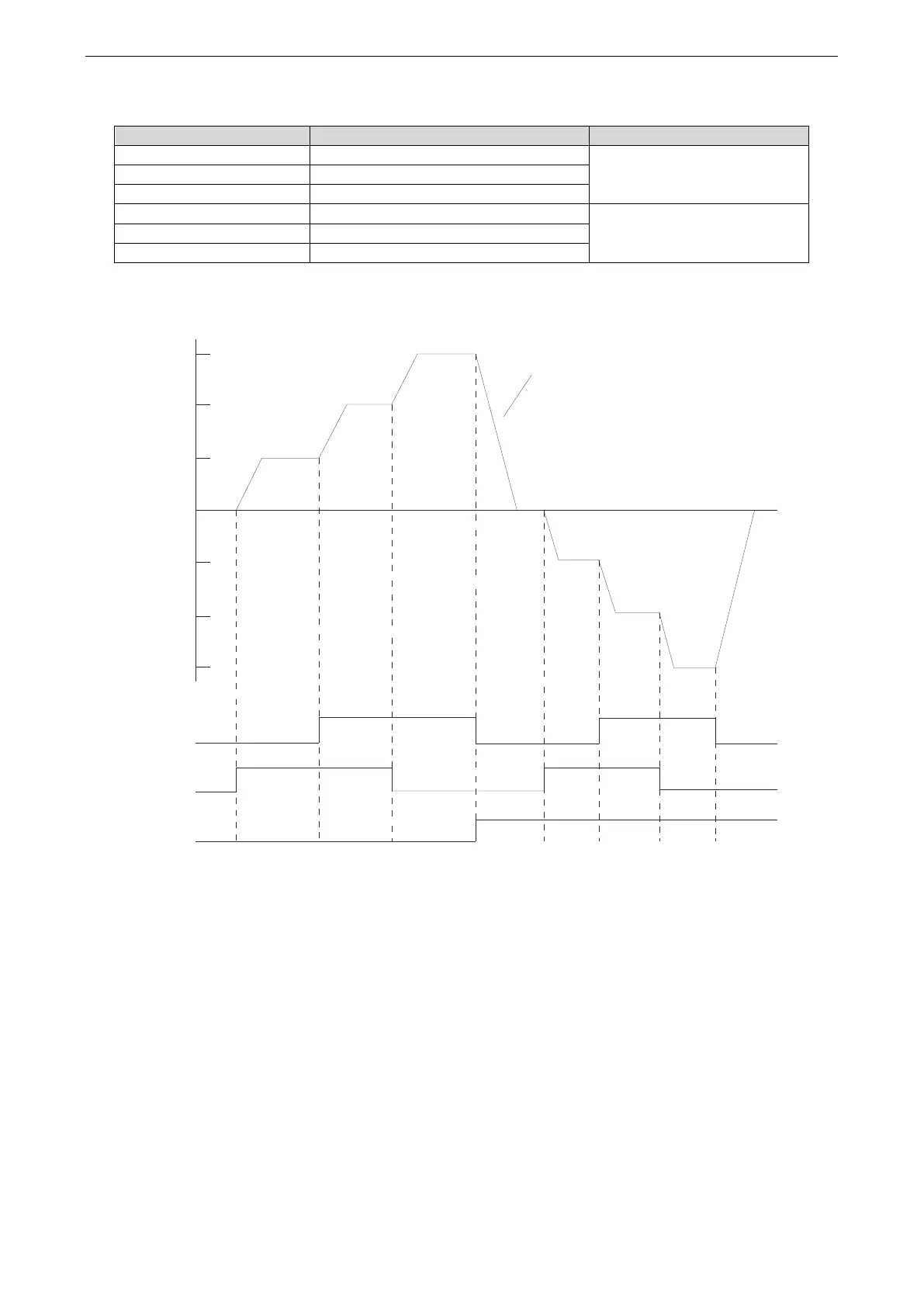

3. Running example
0
+SPEED1
Stop
+SPEED2
+SPEED3
-SPEED1
-SPEED2
-SPEED3
Speed 1
Speed 2
Speed 3
stop
Speed 1
Speed 2
Speed 3
Stop
Speed up down is decided by
P3-09, P3-10
SPD-A
SPD-B
SPD-D
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
