Xinje DS3E Series Manual

38

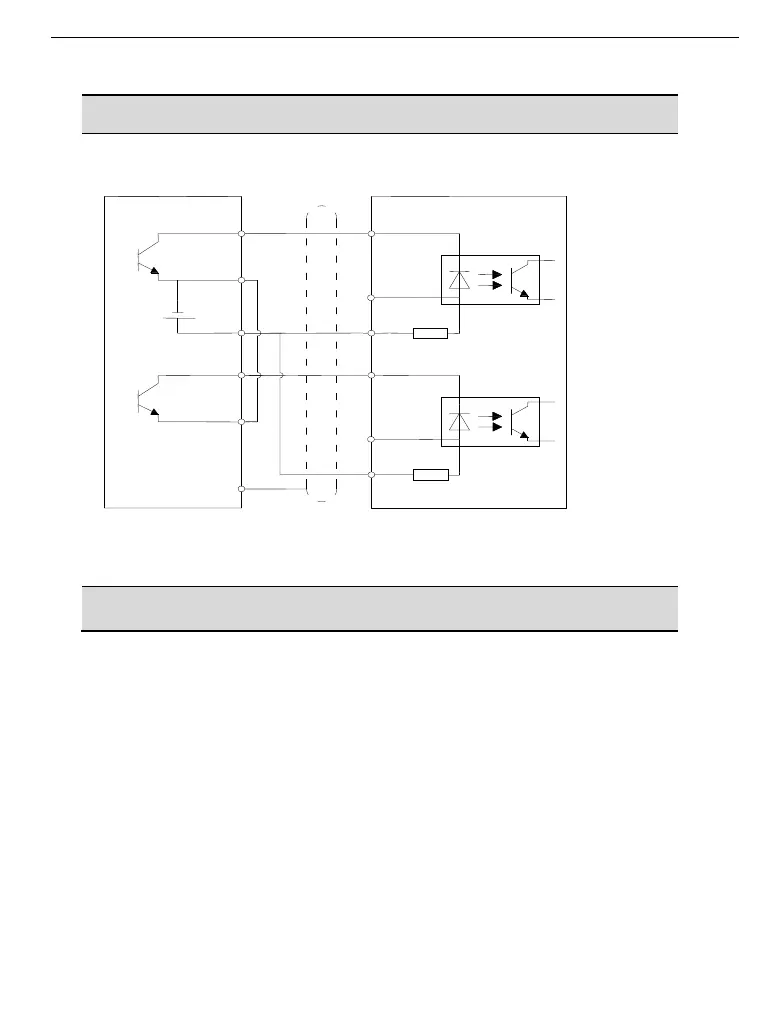

The interface circuit of Pulse + direction, CW, CCW, AB phase mode:
Open collector (24V)
PLC, SCM, etc. servo drive
When upper device is open collector output, please use this wiring diagram.
Please note: P+5V and D+5V must be vacant.
Differential mode (5V)
COM0
Y0
+24V
P-
R=3.3K
COM1
Y1
D-
R=3.3K
P+5V
D+5V
Shield layer
0V
D+24V
P+24V
