Xinje DS5E Series Manual

Motor model
LA±1
Inertia level
Normal With brake
MS6H-130C□20B□2-21P5 148 178
MS6H-130TL20B□2-21P5 164 194
MS6H-130C□15B□2-21P8 175 205
MS6H-130C□15B□2-41P8 175 205
MS6H-130TL15B□2-21P8 191 221
MS6H-130TL15B□2-41P8 191 221
MS6H-130C□15B□2-22P3 195.6 225.6
MS6H-130C□15B□2-42P3 195.6 225.6
MS6H-130TL15B□2-22P3 211.6 241.6
MS6H-130TL15B□2-42P3 211.6 241.6

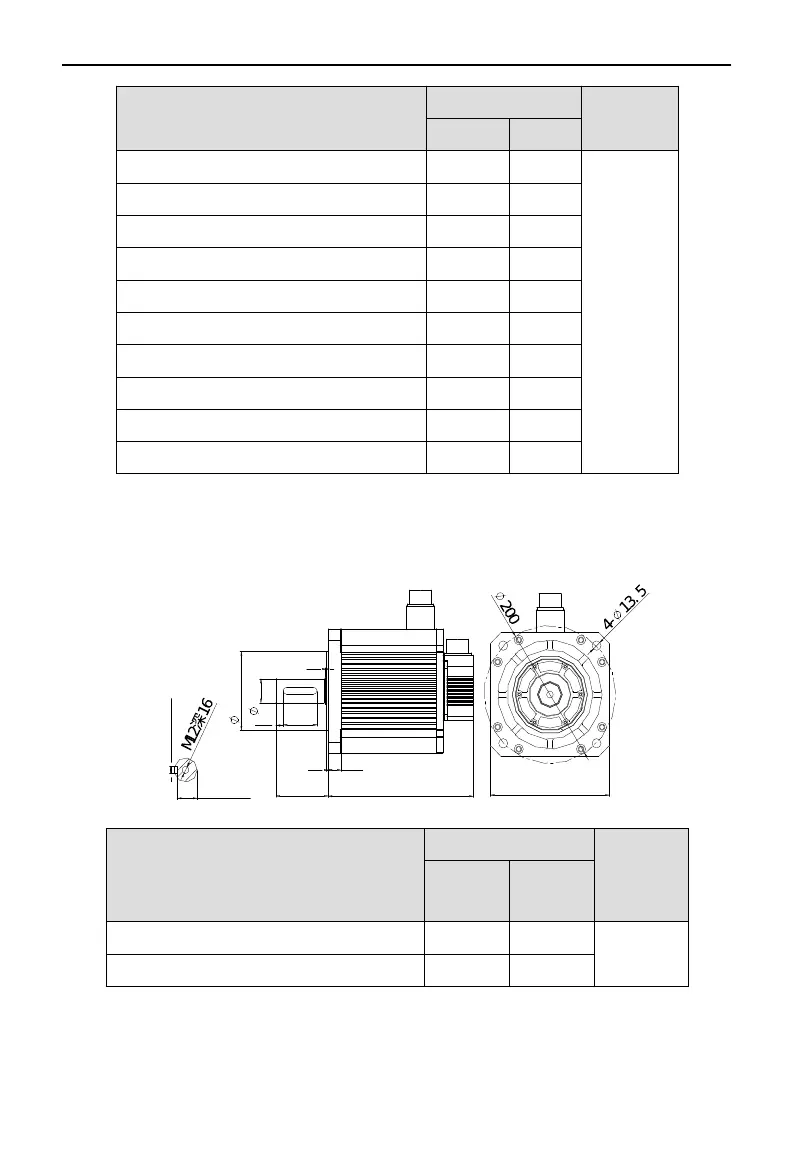

 180 series motor installation dimension Unit: mm
 MS5 motor
LA
79± 0. 5
203
51
2
11
35h6
114. 3h7
a180
30
0
- 0. 1
10
0
-0. 03
Motor model
LA±1
Inertia
level
Normal
With
brake
MS5G-180ST-TL19015□□-42P9-S01 221 303
Medium
inertia
MS5G-180ST-TL28015□□-44P4-S01 247 329
26
