Xinje DS5E Series Manual

 SI input signal
Use relay or transistor circuit with open collector to connect. When using relay connection, please select relay
for small current. If the relay for small current is not used, it will cause poor contact.
Type Input terminal Function
Digital input
SI1~SI3 (750w and below
models)
Multifunctional input signal
terminal
SI1~SI4 (above 750w models)
Default settings of input terminals:
Terminal SI1 SI2 SI3
SI4 (above 750W models
can support)
Function S-ON/enable
ALM-RST/alarm
reset
P-OT/forward
prohibition
N-OT/reverse prohibition

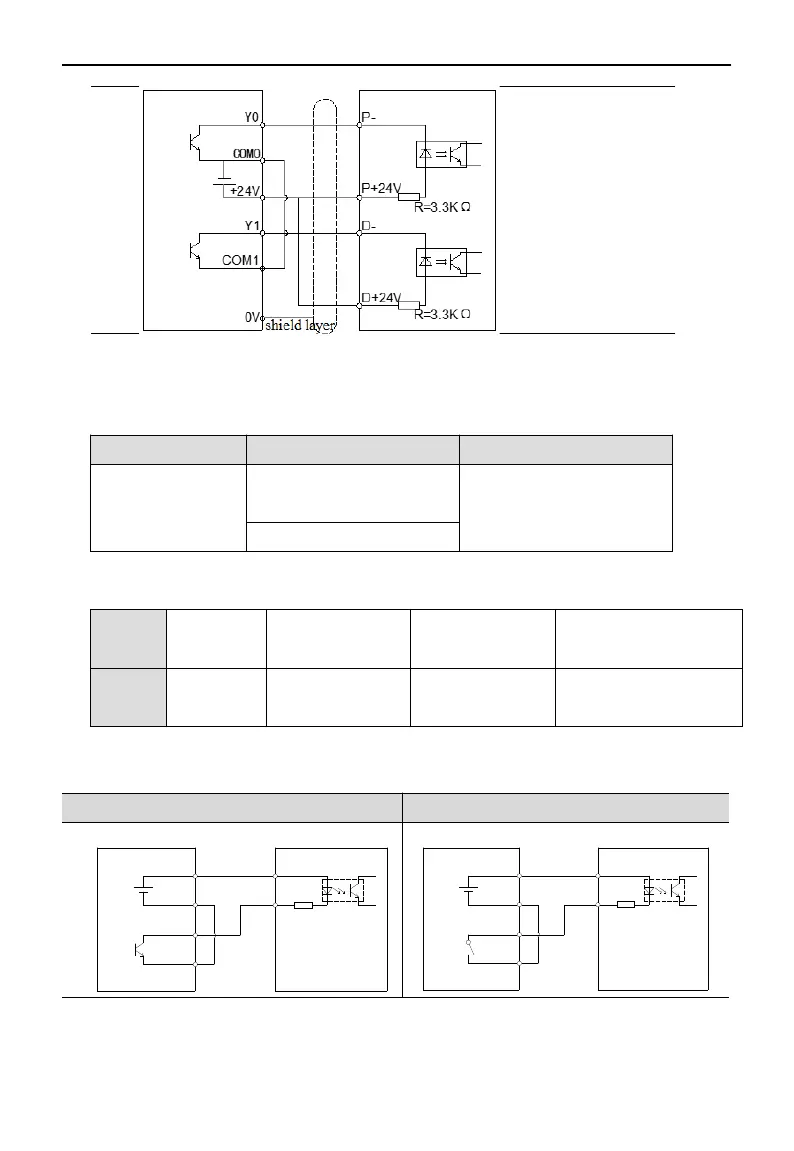

Open collector (power supply is 24V) Relay type (power supply is 24V)
Upper device servo driver
SI
+24V
+
COM2
Y2
0V
+24V
R=2.2KΩ
Upper device servo driver
R=2.2KΩ
+24V
0V
Y2
COM2
+
+24V
SI
Note:
The maximum allowable voltage and current of the collector open circuit output circuit are as follows:
39
When the upper
device adopts open
collector output, this
connection method
is adopted.
