Xinje DS5K Series User Manual

W
R
380V
D
P+
C
U
V
T
S

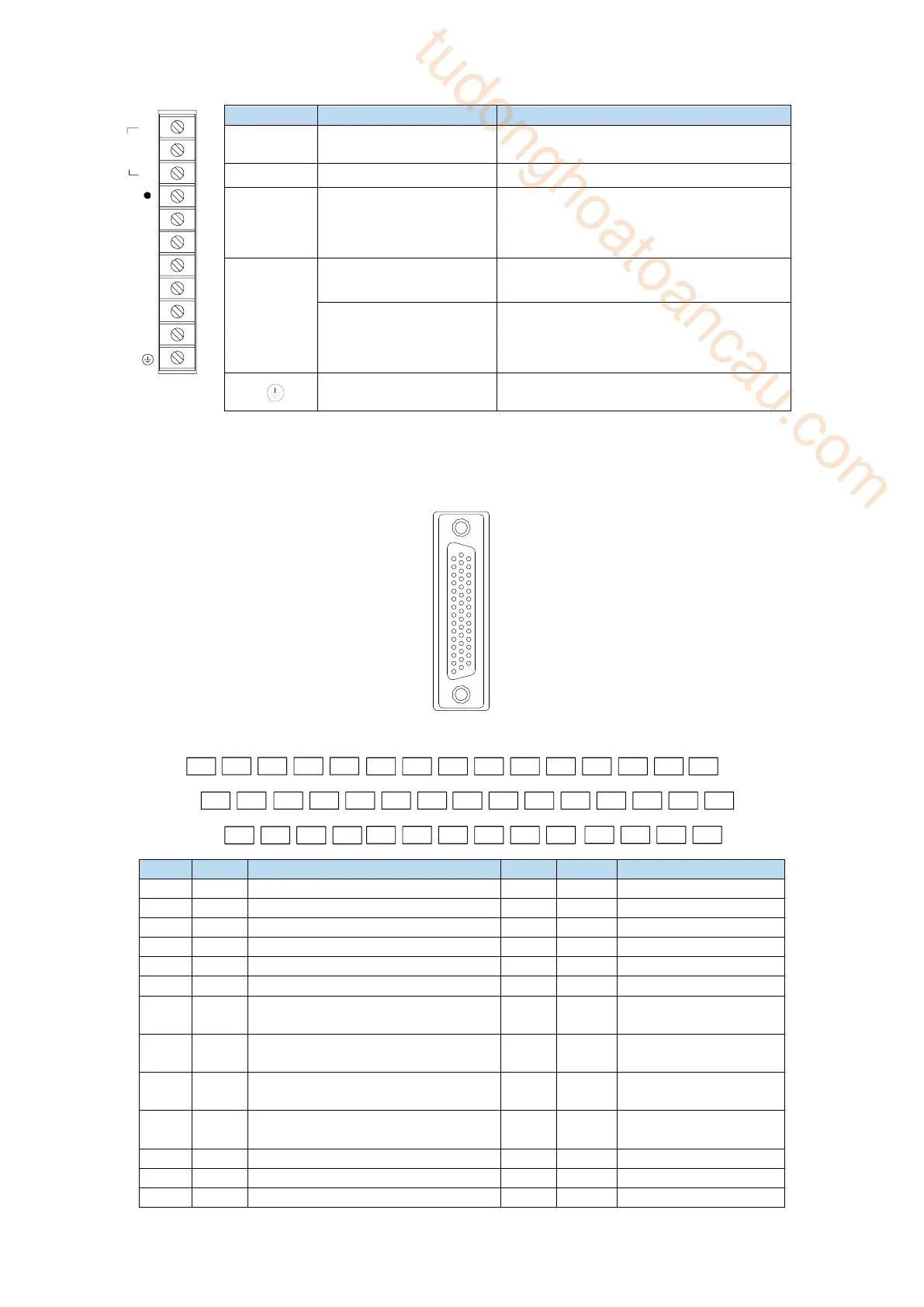

◼ DS5K-43P0-PTA
Terminal
Function
Explanation
R/S/T
Power supply input of
main circuit
3-phase AC 200~240V, 50/60Hz
●
Vacant terminal
-
U, V, W
Motor terminals
Connect the motor
Note: the ground wire is on the cooling
fin, please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+
and C, disconnect P+ and D, P0-25=
power value, P0-26= resistor value
Ground terminal
Connect to ground terminal of motor, then
connect to the ground
3.1.3 CN0, CN2 terminal
3.1.3.1 CN0 terminal
◼ CN0 terminal explanation
P-P+5D+24 D+5 D- P+24SO1COM SO3SO4 SO2
485+485-SI2 SI1 NC GNDSI3+24V SI5 SI4
OA- OA+OB+OZ+OZ- OB-
1
16
15
30
44
31
NCNCNC NC
NCNCNC NC
NC NCNCNC NC
NC NCNCNC
No.
Name
Explanation
No.
Name
Explanation
1
P-
Pulse -
23
SI4
Input terminal
2
P+5
Pulse +5v
24
NC
Empty terminal
3
P+24
Pulse +24v
25
NC
Empty terminal
4
D-
Direction -
26
NC
Empty terminal
5
D+5
Direction +5v
27
NC
Empty terminal
6
D+24
Direction +24v
28
NC
Empty terminal
7
SO1
Output terminal
(max load current 50mA)
29
SI5
High speed input
terminal
8
SO2
Output terminal
(max load current 50mA)
30
+24V
Input common
terminal
9
SO3
Output terminal
(max load current 50mA)
31
NC
Empty terminal
10
SO4
Output terminal
(max load current 50mA)
32
NC
Empty terminal
11
NC
Empty terminal
33
NC
Empty terminal
12
NC
Empty terminal
34
NC
Empty terminal
13
NC
Empty terminal
35
OA+
Encoder frequency
