V5 series inverter
19

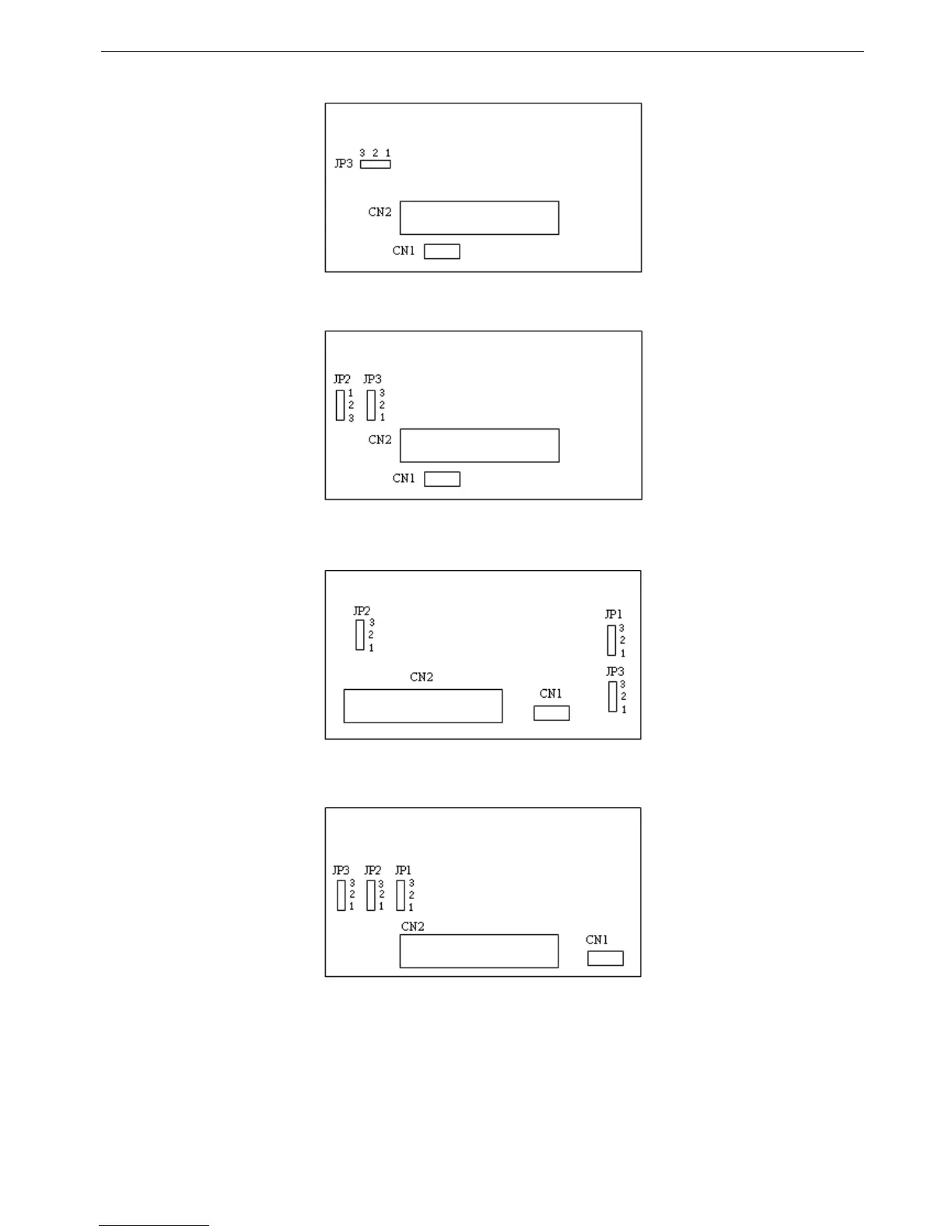

0.75~2.2KW VB5 series single phase inverter jumper position
Fig 2－4 (b) jumper position
0.75~3.7KW VB3, VB5 series three phases inverter jumper position
Fig 2－4 (c) jumper position
5.5~7.5KW VB5 series three phases inverter jumper position
Fig 2－4 (d) jumper position
11~55KW V5 series inverter jumper position
Fig 2－4 (e) jumper position
The position of jumpers are shown in Fig. 2-4, the function of jumper terminals are shown in Table 2-3 and the function de-
scriptions of jumpers and their setting method are shown in Table2-2. Before running the inverter, make sure terminals wiring
and jumpers setting have been done, more than 1mm
2
cables are recommended to use.
