VB5N series inverter
79

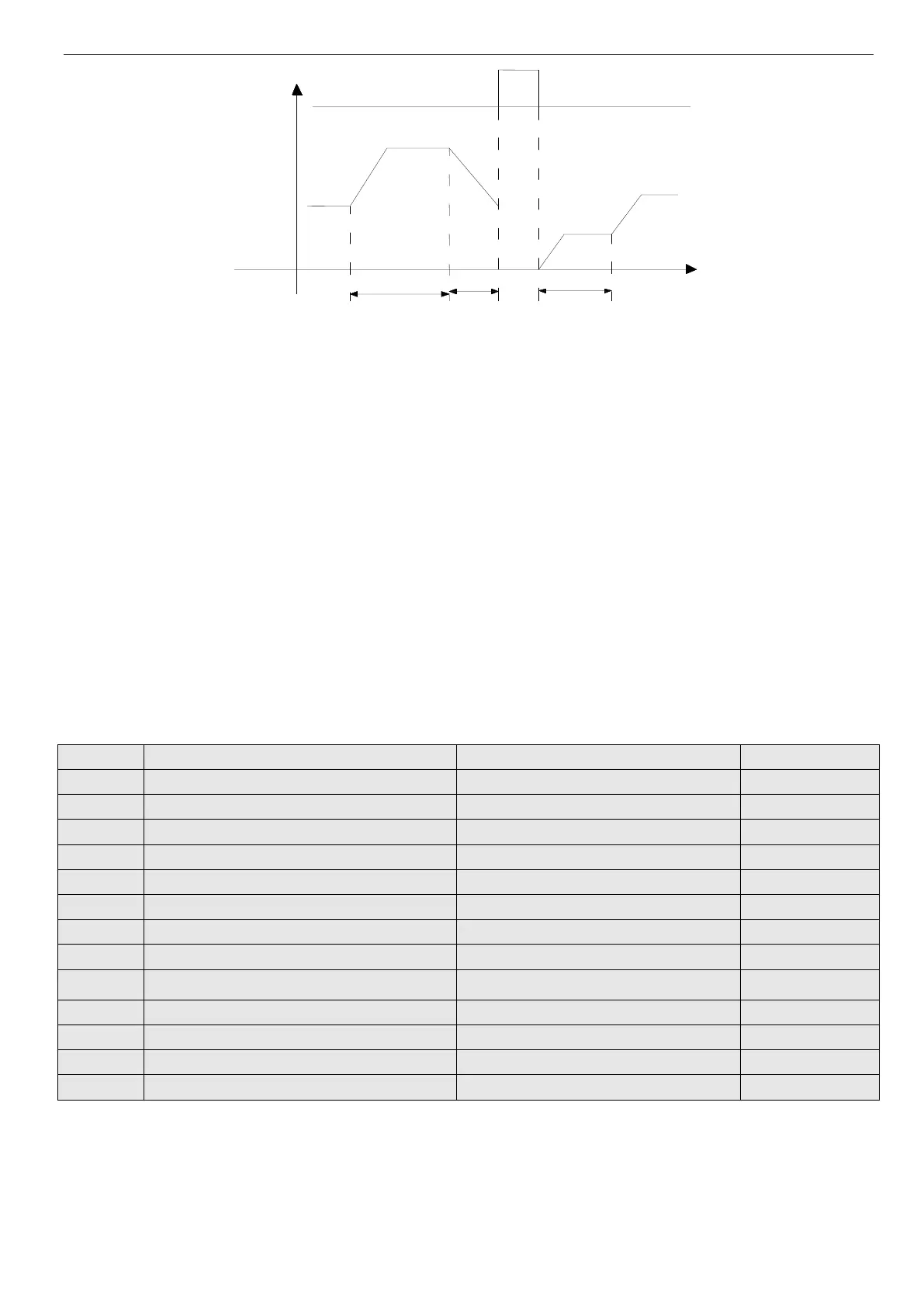

Fig.4-44 PLC start mode 1
Hundred bit: PLC status parameter storage selection when power-off
0: Not save. The inverter doesn’t save the PLC status. It restarts from stage 1 when power on.
1: Save. The inverter saves the PLC status including stage frequency and running time when power-off. It restart according
to the running mode defined by LED ten bit(restart after pause).
Thousand bit: the unit of PLC running time
0: second
1: minute
This unit is only valid for the definition of PLC running time. The unit of Acc/Dec time durning PLC is running is set by
P0.16.
Note: (1) This stage is invalid when the PLC running time is set to 0.
(2) You can control pause, invalid, run and others of the PLC process via terminals, refer to P4 for details.
P8.01~P8.14 use the lowest bit, ten bit and hundred bit of LED to define the PLC running frequency, direction and acc/dec
time.
Lowest bit of LED: frequency setting
0: Multi-frequency i, i=1~7, defined by P3.26~P3.32.
1: Frequency is set by P0.01
Ten bit of LED: Operating direction selection
a1：stage1 speed up time a2：stage2 speed up time a3：stage3 speed up time
d2：stage2 speed down time F1：stage1 frequency F2：stage2 frequency
F3：stage3 frequency
