5 Bring the cable out from the trim near the front of the cabin and route
it under the carpet toward the dashboard or console. Coil any excess
cable in a hidden location, such as under the carpet, keeping it away from
any vehicle pedals or controls. Secure the excess cable with wire ties
(purchased separately).
6 Bring the end of the cable out at the PowerConnect Vehicle Dock location.
Leave yourself enough cable so you can easily connect it to the antenna
connector of the dock.
7 Continue with “Step 5: Connect the Magnetic Mount Antenna and
PowerConnect Power Adapter” on page 37.

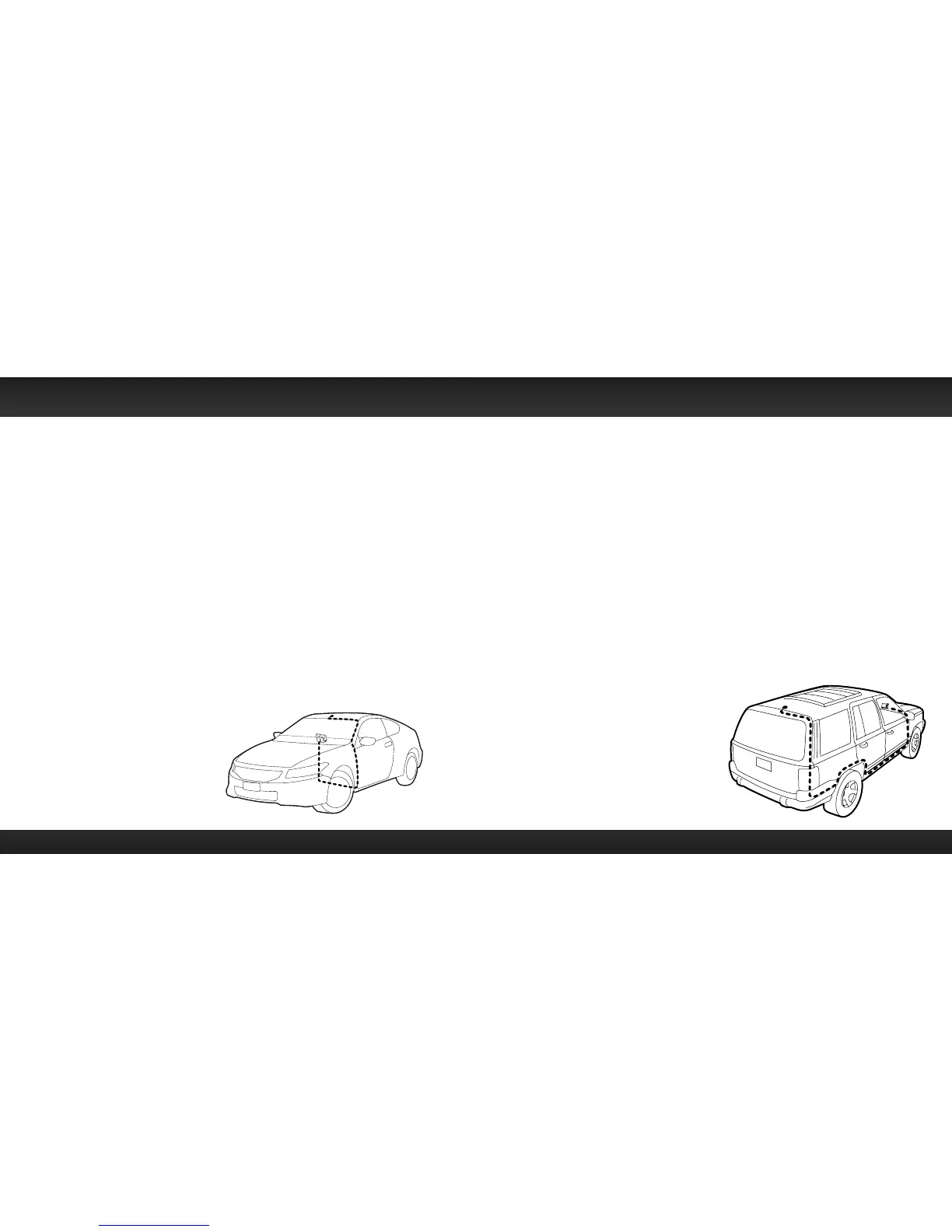

Sedan/Coupe With Antenna Placed at the Front of the Roof
1 Feed the antenna cable from the antenna underneath the rubber molding
around the windshield. Use a blunt plastic putty knife or similar blunt tool
to lift the rubber molding around the windshield and tuck the antenna
cable underneath the molding. Route the antenna cable around and down
the windshield to the lowest point.
2 At the lowest corner of the windshield, route the cable out of the
windshield molding and into the rubber weather stripping around the
door opening. Lift the weather
stripping from the opening and
tuck the cable inside it, then
replace the weather stripping.
Run the cable inside of the
weather stripping to the bottom
of the door opening.
3 Pull the cable out of the
weather stripping at the bottom
of the door opening and route it under the carpet toward the dashboard.
Coil any excess cable in a hidden location, such as under the carpet,
keeping it away from any vehicle pedals or controls. Secure the excess
cable with wire ties.
4 Bring the end of the cable out at the PowerConnect Vehicle Dock location.
Leave yourself enough cable so you can easily connect it to the antenna
connector of the dock.
5 Continue with “Step 5: Connect the Magnetic Mount Antenna and
PowerConnect Power Adapter” on page 37.
Sport Utility Vehicle (SUV)
1 Feed the antenna cable underneath the rubber weather stripping of the
rear tailgate window/door and route the cable along the rear hatch. Lift
the weather stripping from the opening and tuck the cable inside it, then
replace the weather stripping. Pull the cable out from weather stripping
and route it into the cabin under the interior trim. Avoid hinges or gears
that could crimp or cut the cable.
2 Route the cable through the
SUV’s main cabin area under
the interior trim, towards the
front of the vehicle. Use a blunt
plastic putty knife or similar
blunt tool to lift the plastic trim
just enough to tuck the cable
under underneath. Avoid side
airbag locations on back pillars
and above the doors. Airbag
locations are marked with “SRS”
Vehicle Installation
