XP GLASSMAN EJ Series User Manual

Series EJ, ET, EY, FJ & FR
102002-177 Rev M2
8
\1020\02177M2.doc 17 Jun 2019
S2 CURRENT LIMIT (CL) CURRENT TRIP (CT) SELECT
CURRENT LIMIT: When load current exceeds the current program or control
setting the unit regulates the current at the setting. (Constant Current).
CURRENT TRIP: When load current exceeds the current program or control setting the HV
output will trip and latch off. Reset is by pressing the front panel STANDBY switch or
toggling the AC power switch (Local mode), or by toggling the HV enable signal (Remote
mode).
NOTE: Units ship with the S2 switch set to CL Mode.

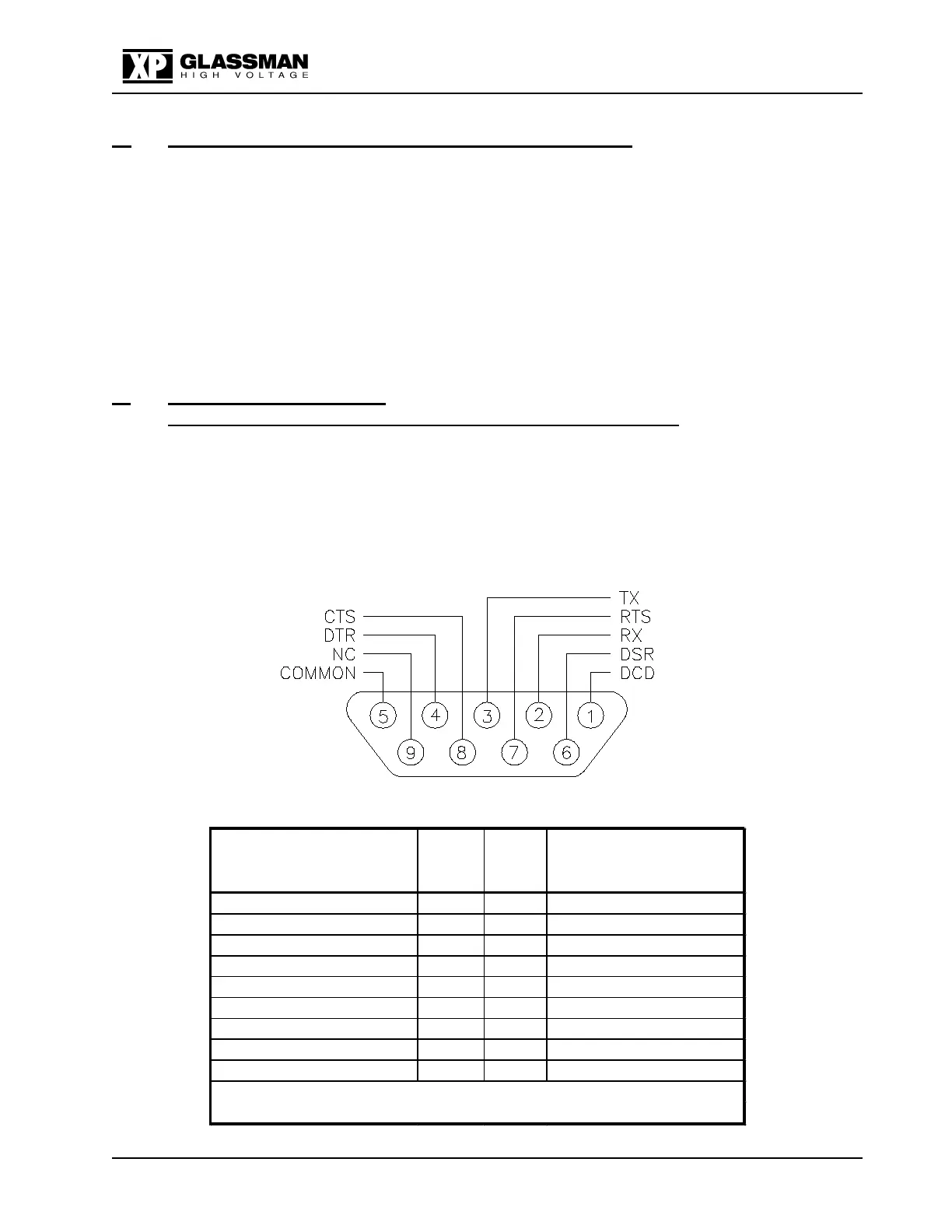

J1 RS232 DB9 CONNECTOR
(See INTERFACE DIAGRAM FIG 10, Table 1, and figure below)
WARNING! Do not make or remove connections to this connector or any other
connector until power is off and the output has discharged.
J1 is a 9 pin female connector used to connect to a serial computer interface. A null modem
RS232 cable (approx. 3m/10ft) DB9 (male) to DB9 (female) is supplied for interconnection.
DB9 RS232 CONNECTOR
SIGNAL NAME
DB-9
PINOUT
DB-25
EQUIV
COMMENTS
(PINS REFER TO DB-9)
Data Carrier Detect (DCD)
1
8
shorted to pins 4 and 6
Receive Data (RxD)
2
3
power supply transmit line
Transmit Data (TxD)
3
2
power supply receive line
Data Terminal Ready (DTR)
4
20
shorted to pins 1 and 6
Signal Ground (GND)
5
7
signal ground
Data Set Ready (DSR)
6
6
shorted to pins 1 and 4
Request To Send (RTS)
7
4
shorted to pin 8
Clear To Send (CTS)
8
5
shorted to pin 7
Ring Indicator (RI)
9
22
not used
Table 1 DB-9 Pinouts
