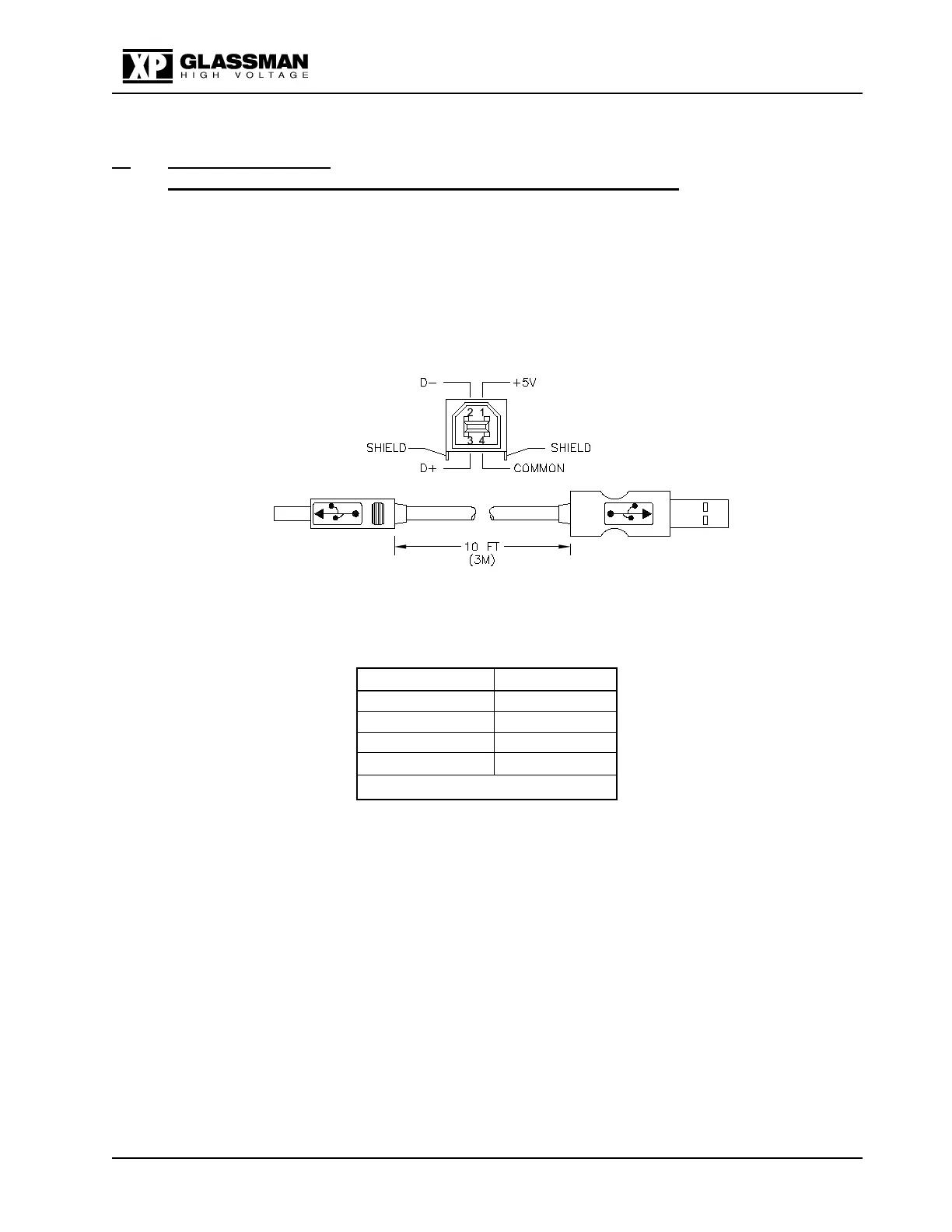

J2 USB CONNECTOR
(See INTERFACE DIAGRAM FIG 10, Table 2, and figure below)
WARNING! Do not make or remove connections to this connector or any other
connector until power is off and the output has discharged.
This serial link implements USB2.1 communication protocol. A 3m (10ft) cable is supplied
with the unit for this purpose.
USB CABLE
SIGNAL NAME
B PINOUT
VBUS
1
D-
2
D+
3
Ground
4
Table 2 USB B Pinouts
