Xray X4 User Manual

44
VIDEO TECH TIP
▶
WEIGHT BALANCE
BATTERY MOUNTING
SYSTEM
VIDEO TECH TIP
▶
903312
SFH M3x12
Make sure to have a small
amount of play
Make sure to have a small
amount of play
#309861
SHORT LIPO BALANCING CHASSIS
WEIGHT 40g (2)
7. FINAL ASSEMBLY
#306199
GRAPHITE HOLDER FOR ADJ. BATTERY
HOLDER FOR NARROW BATTERIES (2)
LiPo Battery Pack
(NOT INCLUDED)
BATTERY BACKSTOP

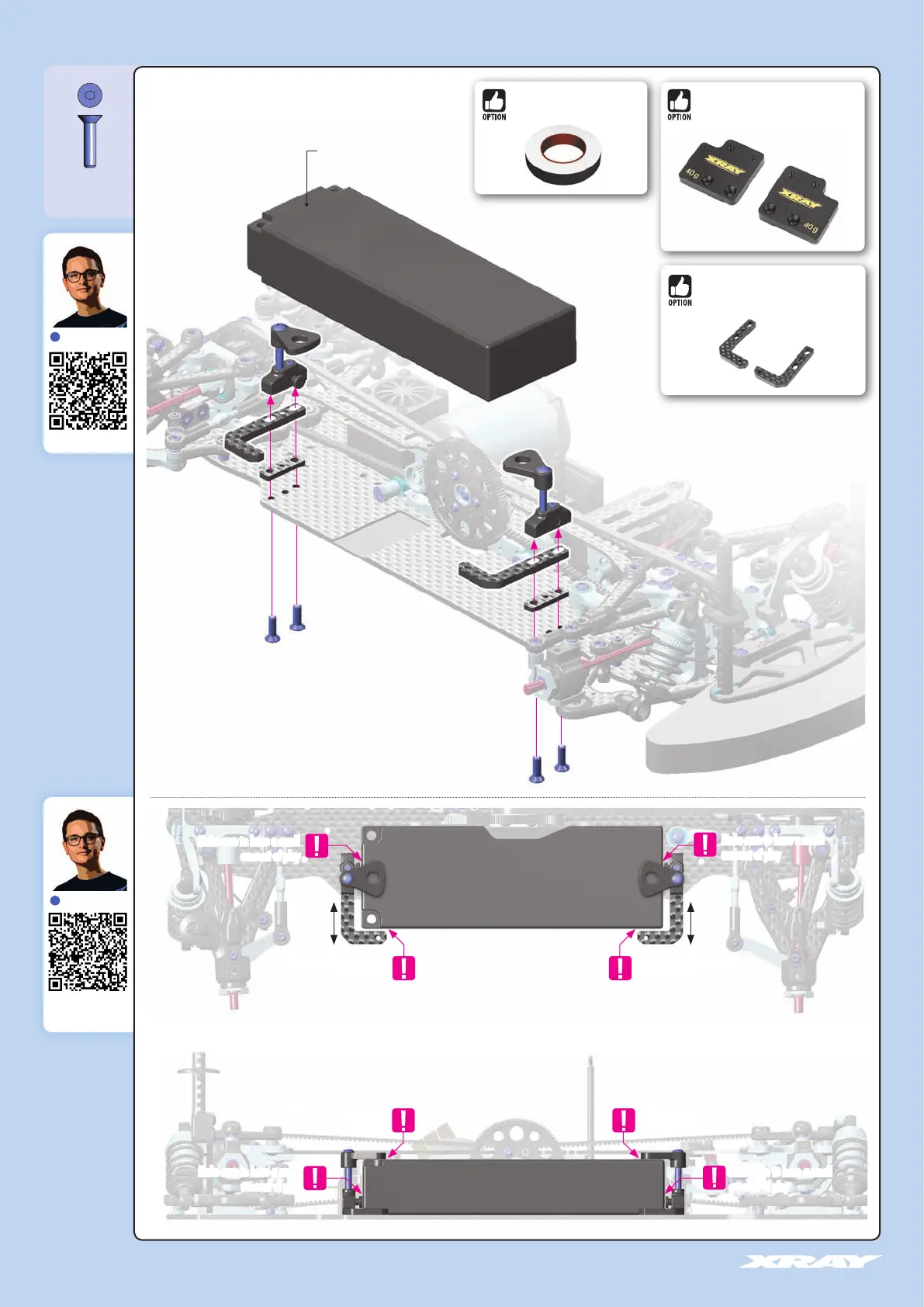

The new adjustable battery backstop system secures the battery in the car in a tweak-free, non-fixed manner to
help improve traction and makes it more stable and easier to drive.
It is very important that battery has a very small amount of play in all directions so it does not tweak the car,
but the play cannot be too much otherwise the battery may fall out in crashes.
Make sure to have a small
amount of play
Make sure to have a small
amount of play
Make sure to have a small
amount of play
Make sure to have a small
amount of play
Make sure to have a small
amount of play
Make sure to have a small
amount of play
#107870
HUDY FIBRE-REINFORCED TAPE
