Xray XB808 User Manual

14
TRACK WIDTH
WHEELBASE
980317
P 3x17
941319
BB 13x19x4
901504
SB M5x4
980263
P 2.5x13
940814
BB 8x14x4
Use HUDY Ball-Bearing
Grease for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
➊
➋
ASSEMBLED VIEW
L=R
➌
➍
➑
➐
➏
➍
➎

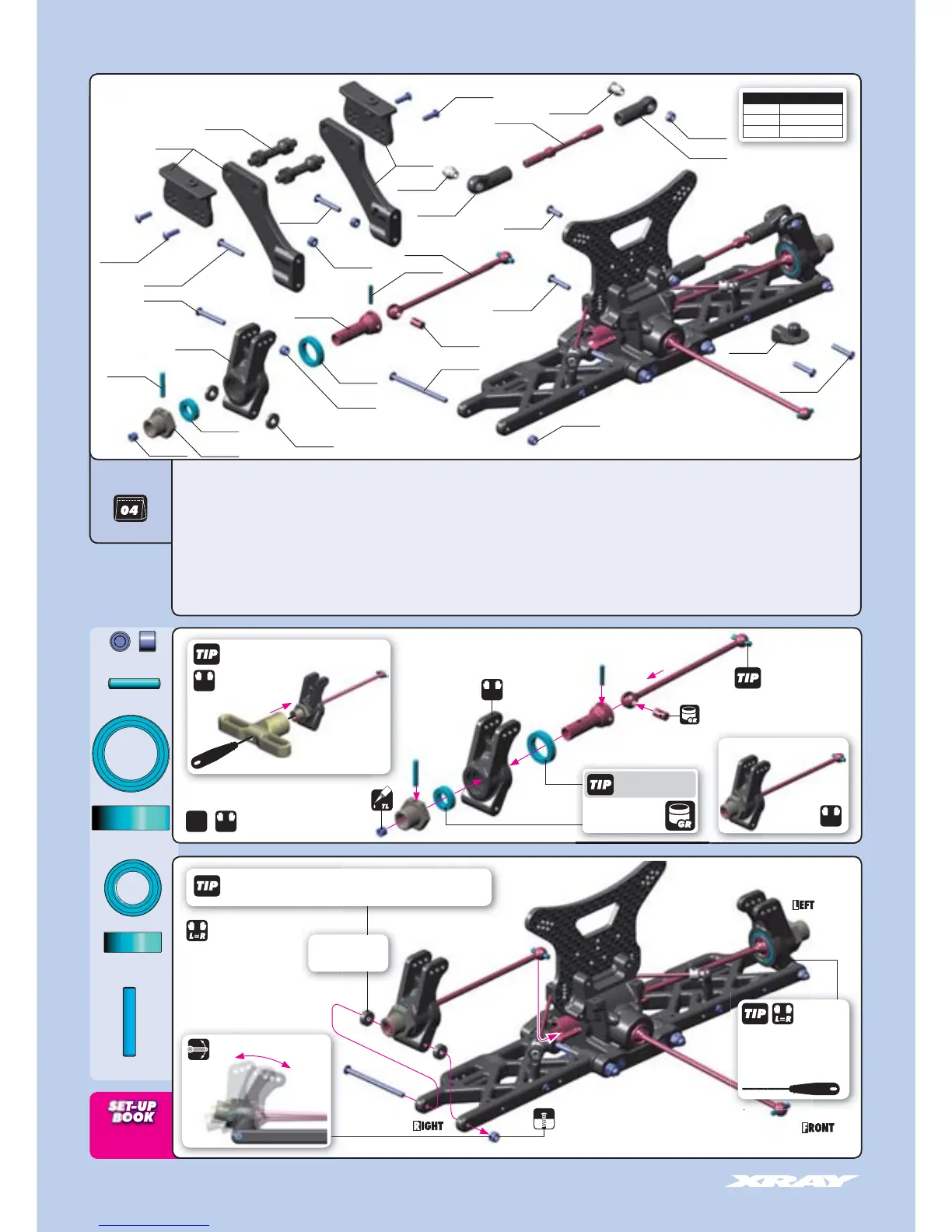

4. REAR SUSPENSION
35 1301 XB808 BODY POSTS
35 2631 ADJ. TURNBUCKLE M5 L/R 64 MM - HUDY SPRING STEEL (2)
35 3131 XB808 REAR UPPER INNER CAMBER LINK BALL JOINT (2)
35 3152 XB808 REAR UPPER OUTER CAMBER LINK BALL JOINT (2)
35 3160 MOUNTING BALL 6.8 (4)
35 3170 PIVOT BALL 6.8 (4)
35 3351 XB808 COMPOSITE REAR HUB CARRIER
35 3370 XB808 SET OF COMPOSITE REAR HUB CARRIER SHIMS
35 3520 REAR WING POSTS
35 3559 COMPOSITE REAR WING MOUNT BRACE (2)
35 5211 XB808 CVD DRIVE AXLE - HUDY SPRING STEEL™
35 5221 XB808 CVD UNIVERSAL DRIVE SHAFT - HUDY SPRING STEEL™
35 5237 XB808 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
35 5250 ALU WHEEL AXLE - HARD COATED (2)
35 7331 XB808 REAR LOWER OUTER PIVOT PIN SCREW 3MM (2)
90 1504 HEX SCREW SB M5x4 (10)
90 2310 HEX SCREW SH M3x10 (10)
90 2316 HEX SCREW SH M3x16 (10)
90 2318 HEX SCREW SH M3x18 (10)
90 2320 HEX SCREW SH M3x20 (10)
90 2322 HEX SCREW SH M3x22 (10)
90 5314 SCREW PHILLIPS 3.0x14 (10)
94 0814 HIGH-SPEED BALL-BEARING 8x14x4 BLUE COVERED (2)
94 1319 HIGH-SPEED BALL-BEARING 13x19x4 BLUE COVERED (2)
96 0030 NUT M3 (10)
98 0263 PIN 2.5x13 (10)
98 0317 PIN 3x17 (10)
BAG
2x
L=R
980317
355250
901504
353370
902322
941319
960030
902320
905314
960030
902320
353520
353559
352631
353160
353170
960030
351301
902318
960030
902310
902316
355211
355237
357331
355221
980263
353520
905314
940814
Ensure that the rear upright moves freely. If it does not move freely, use
sandpaper to thin both wheelbase adjustment shims.
Shims for wheelbase
adjustment
L=R
L=R
Graphite Grease
(HUDY #106210)
2mm
Check for free movement
353152
353131
353351
To tighten the setscrew you can also use HUDY
17mm Wheel Nut Tool #107570
3x17
2.5x13
8x14x4
13x19x4
Follow the TECH TIP on page 5
for drive shaft pin servicing
Do not overtighten the self-locking nut. Overtightening
may result in suspension binding.
(HUDY #107633)
If the rear upright does not
move freely, use a HUDY Arm
Reamer to resize the hole.
ARM REAMER
2mm
OFFSET WHEEL AXLES
#355250 0mm (STANDARD)
#355251 +1mm
(OPTION)
#355252 +2mm (OPTION)
2.5mm
