Xtool D7 User Manual

37
temperature heating combustion, fuel additive or catalyst reduce PM
ignition combustion) to stabilize the filter performance.
DPF regeneration may be performed in the following cases:
⚫ The exhaust back pressure sensor is replaced.
⚫ The PM trap is removed or replaced.
⚫ The fuel additive nozzle is removed or replaced.
⚫ The catalytic oxidizer is removed or replaced.
⚫ The DPF regeneration MIL is on and maintenance is performed.
⚫ The DPF regeneration control module is replaced.
The operation guidelines of the DPF function are shown as below:
1. Enter the DPF menu and choose relevant models according to the
vehicle being tested.
2. Enter the DPF regeneration menu.
3. Read carefully and complete the requisites listed before performing
the DPF regeneration function. And press OK after completing the
instructions shown.

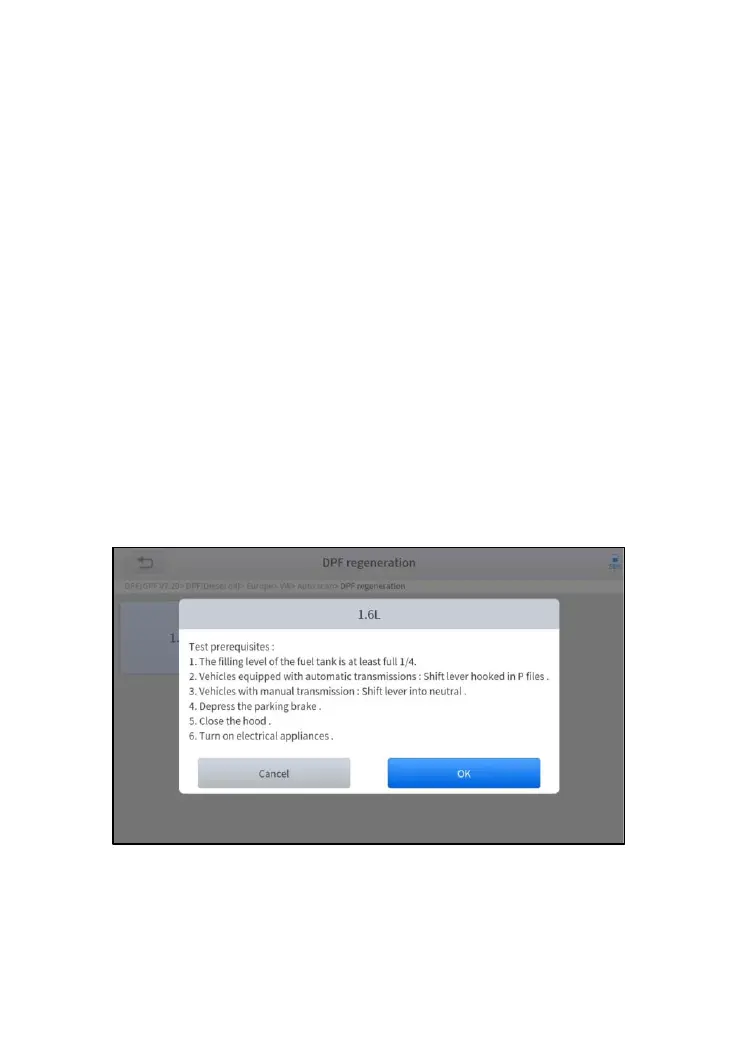

Figure 5-10 Sample of DPF function (screen 1)
4. Read the fuel tank level and make sure that it fulfills the requirement

Xtool D7 Specifications

General

Tab	ble 1-1 Specification
Item	Description
Operating System	Android
Processor	Quad-core 1.6GHz Processor
Sensors	Gravity sensor, light sensor
Memory	32GB
Display	7.0-inch touch screen with 1024 × 600 resolution
Connectivity	 USB  Wi-Fi
Auto Input/Output	Microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power and Battery	4000mAh, 3.7V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃(-4 to 140℉)
Storage Temperature	-40 to 70℃(-40 to 158℉)
Humidity	<90%

Weight and Dimensions

Dimension (LWH)	21815029mm
