displayed.
5. Read the carbon deposit load.
6. Choose the drive to warm up and follow the instructions listed below.
And press OK after completing the instructions shown.

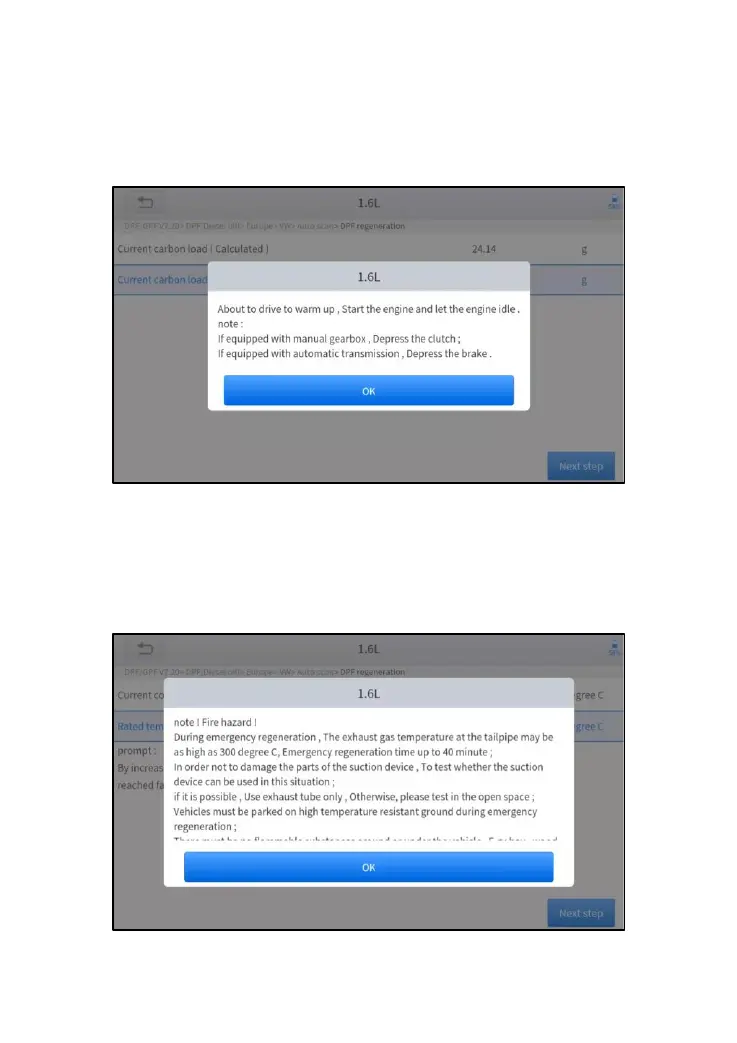

Figure 5-11 Sample of DPF function (screen 2)
7. Read the note carefully and follow the instructions shown on the screen.
And press OK after completing the instructions shown.

Xtool D7 Specifications

General

Tab	ble 1-1 Specification
Item	Description
Operating System	Android
Processor	Quad-core 1.6GHz Processor
Sensors	Gravity sensor, light sensor
Memory	32GB
Display	7.0-inch touch screen with 1024 × 600 resolution
Connectivity	 USB  Wi-Fi
Auto Input/Output	Microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power and Battery	4000mAh, 3.7V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃(-4 to 140℉)
Storage Temperature	-40 to 70℃(-40 to 158℉)
Humidity	<90%

Weight and Dimensions

Dimension (LWH)	21815029mm
