Xtool D7 User Manual

56

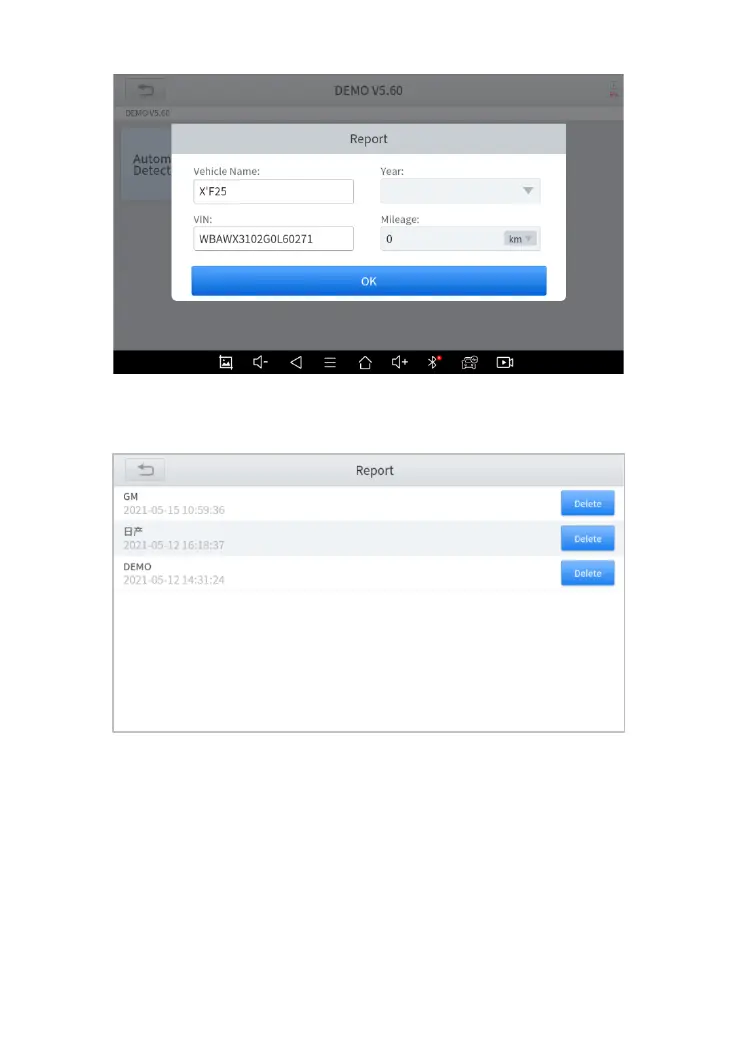

Fig 7-2 Sample of Reports information
Fig 7-3 Sample of Reports List
When you open the report, located in the header of the table is the studio
information you filled in advance in the system setup, then the information
of the vehicle, as shown as below:

Xtool D7 Specifications

General

Tab	ble 1-1 Specification
Item	Description
Operating System	Android
Processor	Quad-core 1.6GHz Processor
Sensors	Gravity sensor, light sensor
Memory	32GB
Display	7.0-inch touch screen with 1024 × 600 resolution
Connectivity	 USB  Wi-Fi
Auto Input/Output	Microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power and Battery	4000mAh, 3.7V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃(-4 to 140℉)
Storage Temperature	-40 to 70℃(-40 to 158℉)
Humidity	<90%

Weight and Dimensions

Dimension (LWH)	21815029mm
