ICAM by Xtralis ICAM ILS-2 Product Guide
www.xtralis.com 7
Dimensions
140.0mm
188.0mm
29.5mm
49.5mm
102.8mm53.0 mm
258.6mm
159.3mm
183.6mm
166.7mm
71.3mm
183.6mm
165.7mm
32.5mm
37.5mm
241.7mm

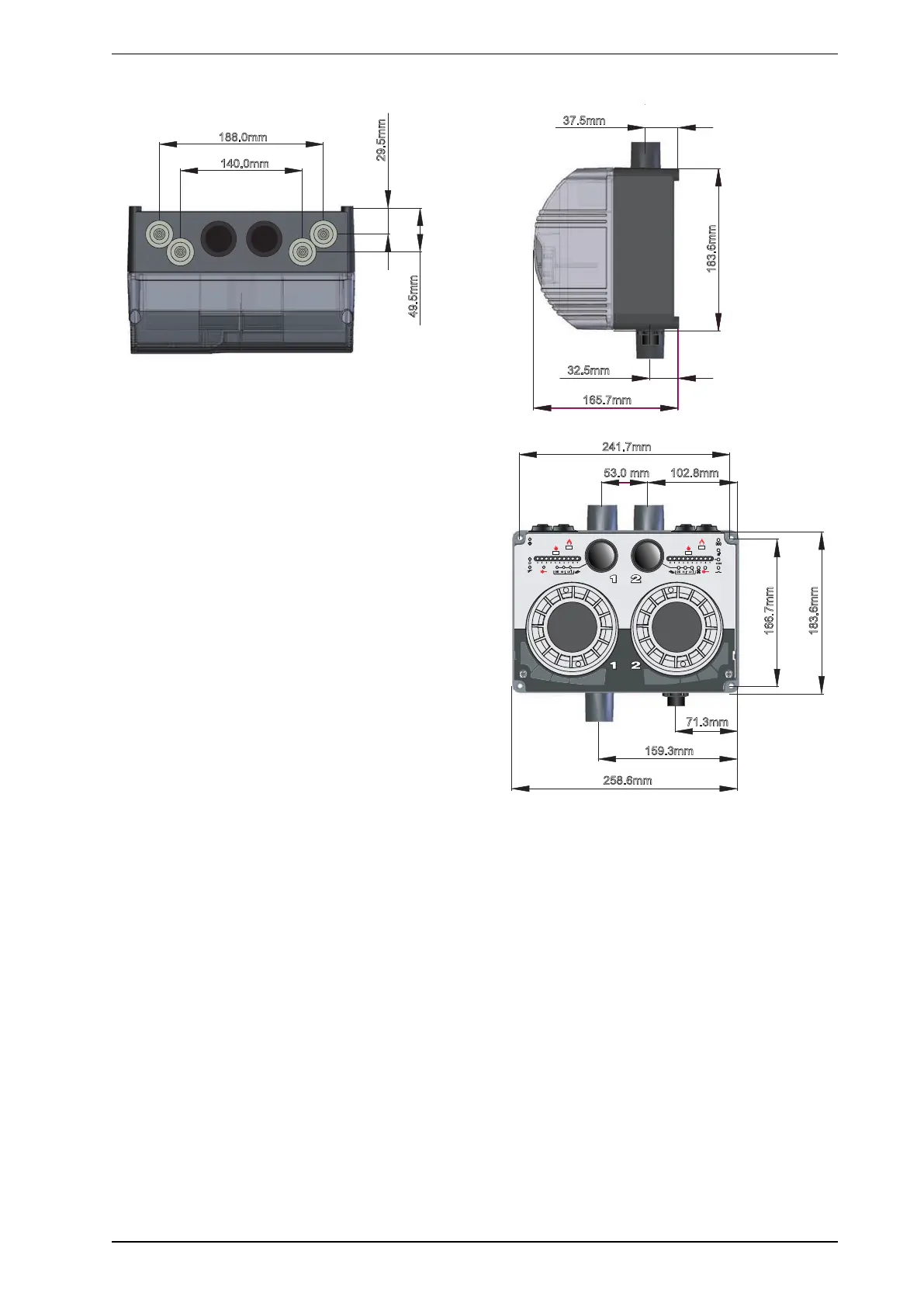

Figure 2-3: Detector Enclosure Dimensions
