ICAM by Xtralis ICAM ILS-2 Product Guide
www.xtralis.com 15
5 Detectors
The ILS-2 is supplied with two point detectors.
The detectors interface directly with the ILS-2 system. This allows the detectors status and analog smoke
level output to be read and interpreted by the ILS-2 processor.

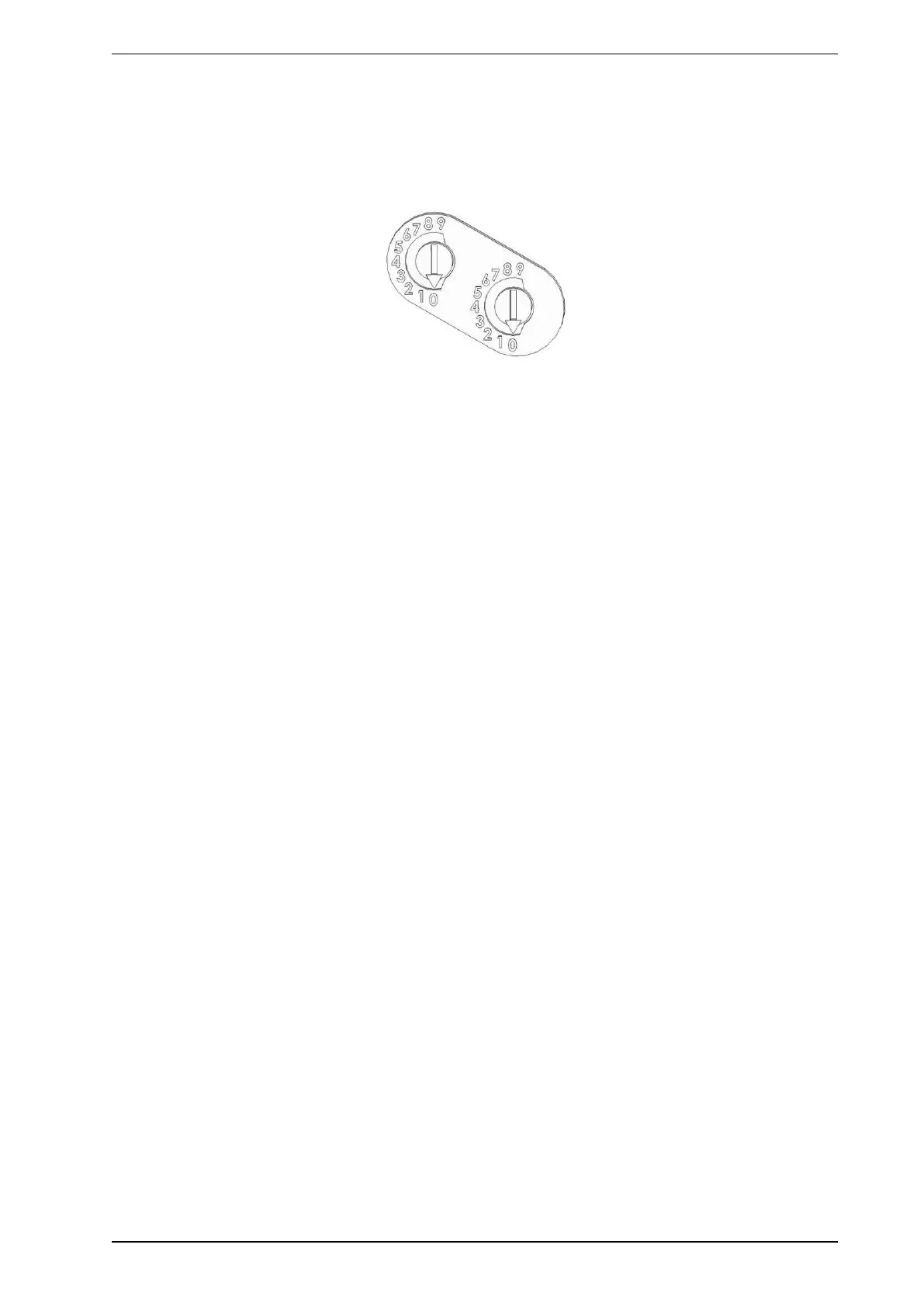

Figure 5-1: Address switches for an ILS-2 system
Each detector is identified with a two-digit address which is set on switches on the underside of the top
detector part. The addresses should be left to the factory pre-set values of 1 for the default detector in the
channel/detector 1 position and address 2 for the detector in the channel/detector 2 position.
Note: If the detectors are removed for maintenance they must be fitted in the positions described above -
failure to do so may result in false reporting in the event of a fault or fire.
