ICAM by Xtralis ICAM ILS-2 Product Guide
www.xtralis.com 3
1 Introduction
The ICAM ILS-2 system is an aspirating smoke system that utilizes an air-sampling pipe network to draw air
towards two high sensitivity point detectors in an aspirated enclosure. Each detector monitors the air from
separate sampling pipes allowing for a large area of coverage in comparison to traditional point detectors.
There are three alarm levels that can be configured according to application.

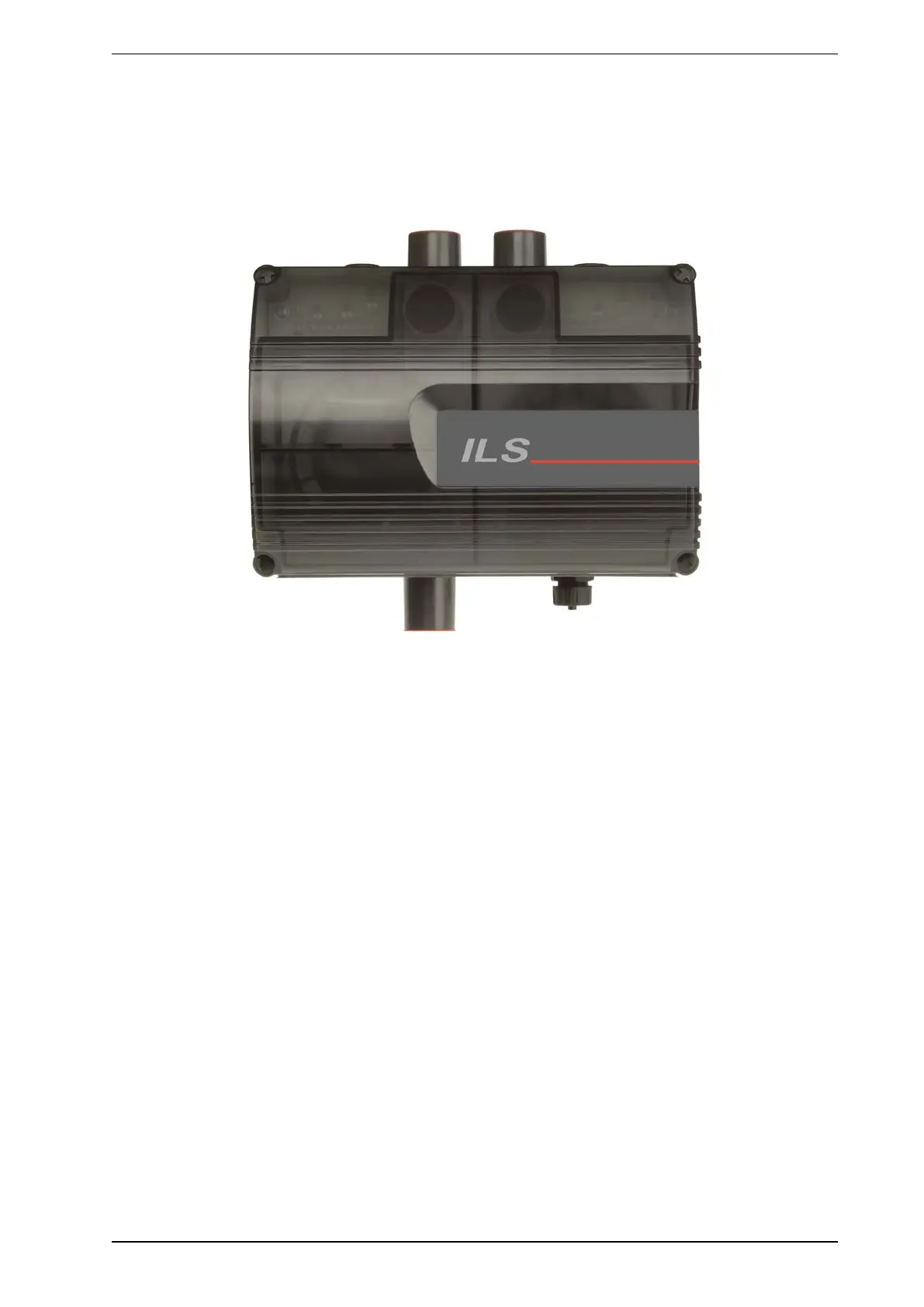

Figure 1-1: ICAM ILS-2
A high performance aspirator and flow sensing system ensure a constant, monitored airflow. The amount of
airflow is displayed on a ten-element bargraph with adjustments for high and low flow thresholds. All detector
configurations can be achieved with the integrated programming keys located on the side of the device.
The ILS-2 is a standalone system where faults and alarms are reported via separate volt-free contacts. These
contacts may be connected to a monitoring fire alarm control panel.
Important Note: Aspirating Smoke Detectors supplied and installed within the EU from June 2013 must
conform to the EU Construction Products Regulation (305/2011/EU-CPR) and the related European
Standard EN54-20.
This unit has been tested and certified to ensure general conformance to the above directive and standard but
strict adherence to this Product Guide is required to ensure that the installation meets these requirements in
all respects.
