Xtralis ICAM ILS-2 User Manual

ICAM by Xtralis ICAM ILS-2 Product Guide
www.xtralis.com 5
2 Detector Installation
The ICAM ILS-2 is provided with the following components:
l 1 detector
l 1 corner stud key
l 1 ferrite core
l 1 installation sheet with mounting template
l 1 product guide
Check all components for damage and refer any concerns to your authorized representative.
It is necessary to procure screws and inserts appropriate for the installation location.
B
C
E
A
D
Legend
A Point Detector 1
B Point Detector 2
C Intake from Pipe Network 1
D Intake from Pipe Network 2
E Airflow
F Exhaust

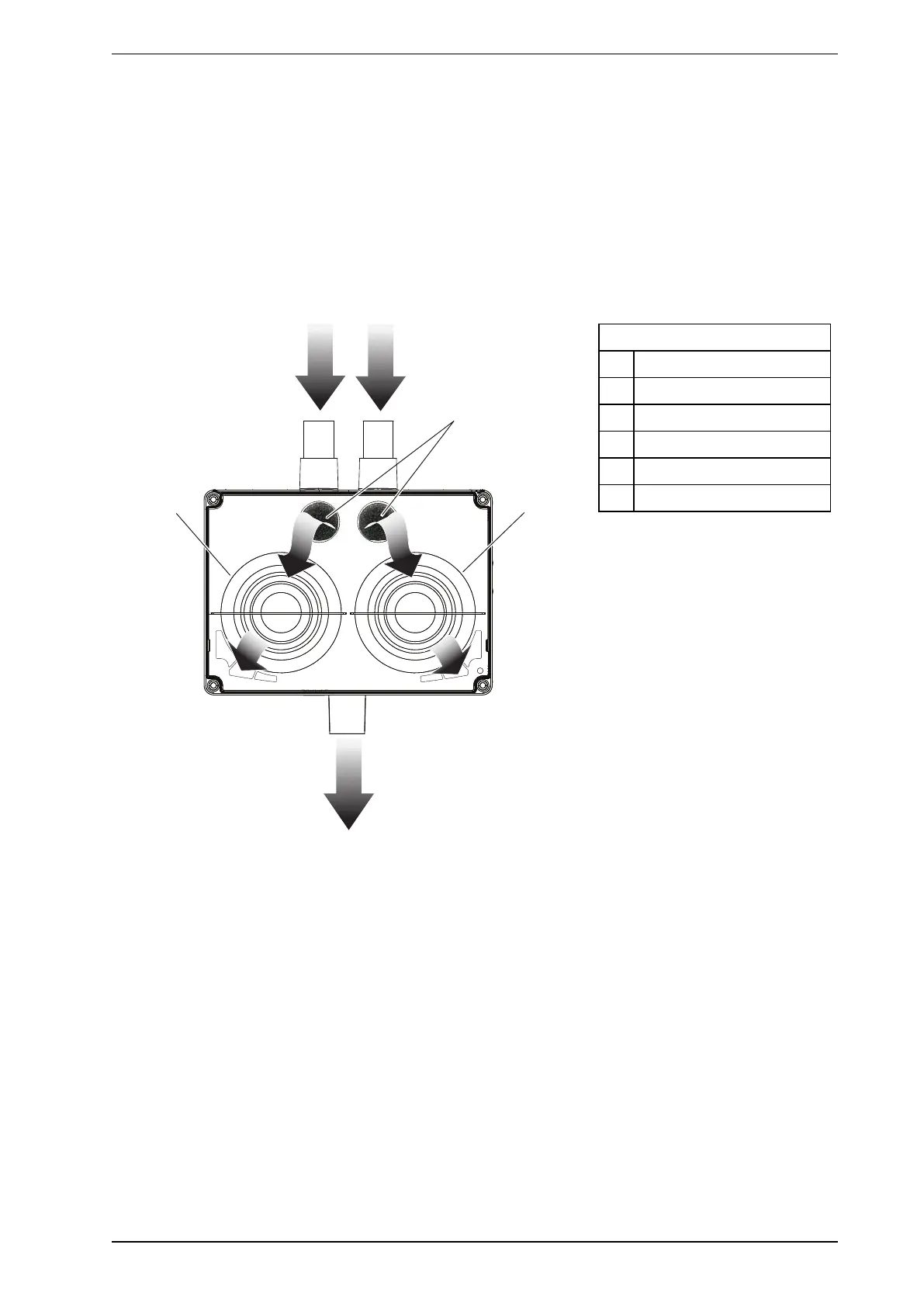

Figure 2-1: Detector Enclosure

Xtralis ICAM ILS-2 Specifications

General

Brand	Xtralis
Model	ICAM ILS-2
Category	Smoke Alarm
Language	English
