Xtreme 20kVA - Display Interface and Parameter Settings

R90 ONLINE USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS)
Xtreme Power Conversion Corporation (Rev 3/7/14) Page 34

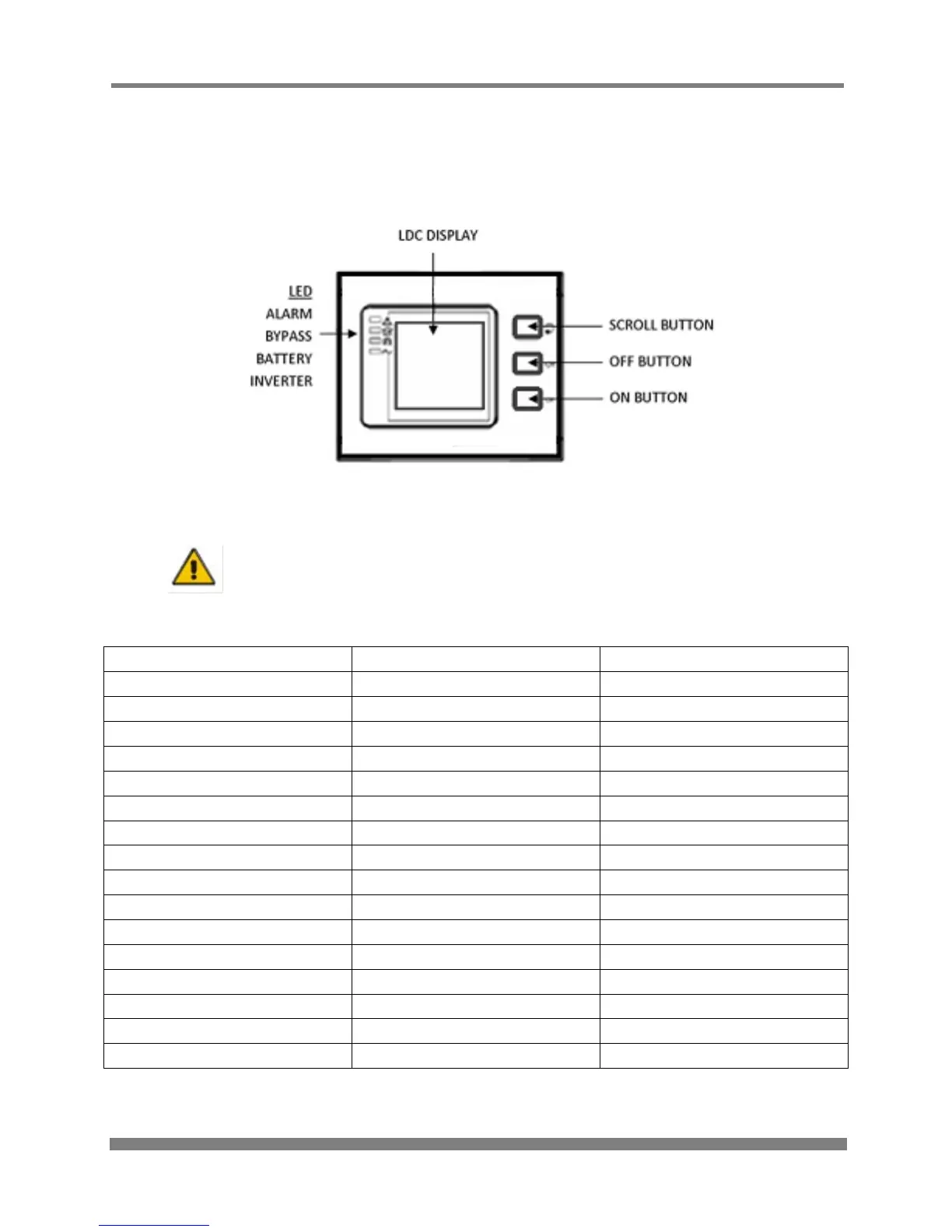

The Display
System LCD Display
CAUTION!
The display provides more functions than those described in this manual.
There are 15 interfaces available in the LCD display as shown below.
ITEM
INTERFACE DESCRIPTION
CONTENT DISPLAYED
01
CODE
Operational status and mode
02
Input A (Input L1)
Voltage & Frequency
03
Input B (Input L2)
Voltage & Frequency
04
Input C (Input L3)
Voltage & Frequency
05
Bat.

Voltage & Current
06
Bat. -
Voltage & Current
07
Output A (Output L1)
Voltage, Frequency & Load
08
Output B (Output L2)
Voltage, Frequency & Load
09
Output C (Output L3)
Voltage, Frequency & Load
10
Load A
Load
11
Load B
Load
12
Load C
Load
13
Total Load
Load
14
Temperature
Rectifier / Inverter Temperature
15
CODE
Operational status and mode
CODE
Alarm Code (Warning Message)
