R90 ONLINE USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS)
Xtreme Power Conversion Corporation (Rev 3/7/14) Page 49

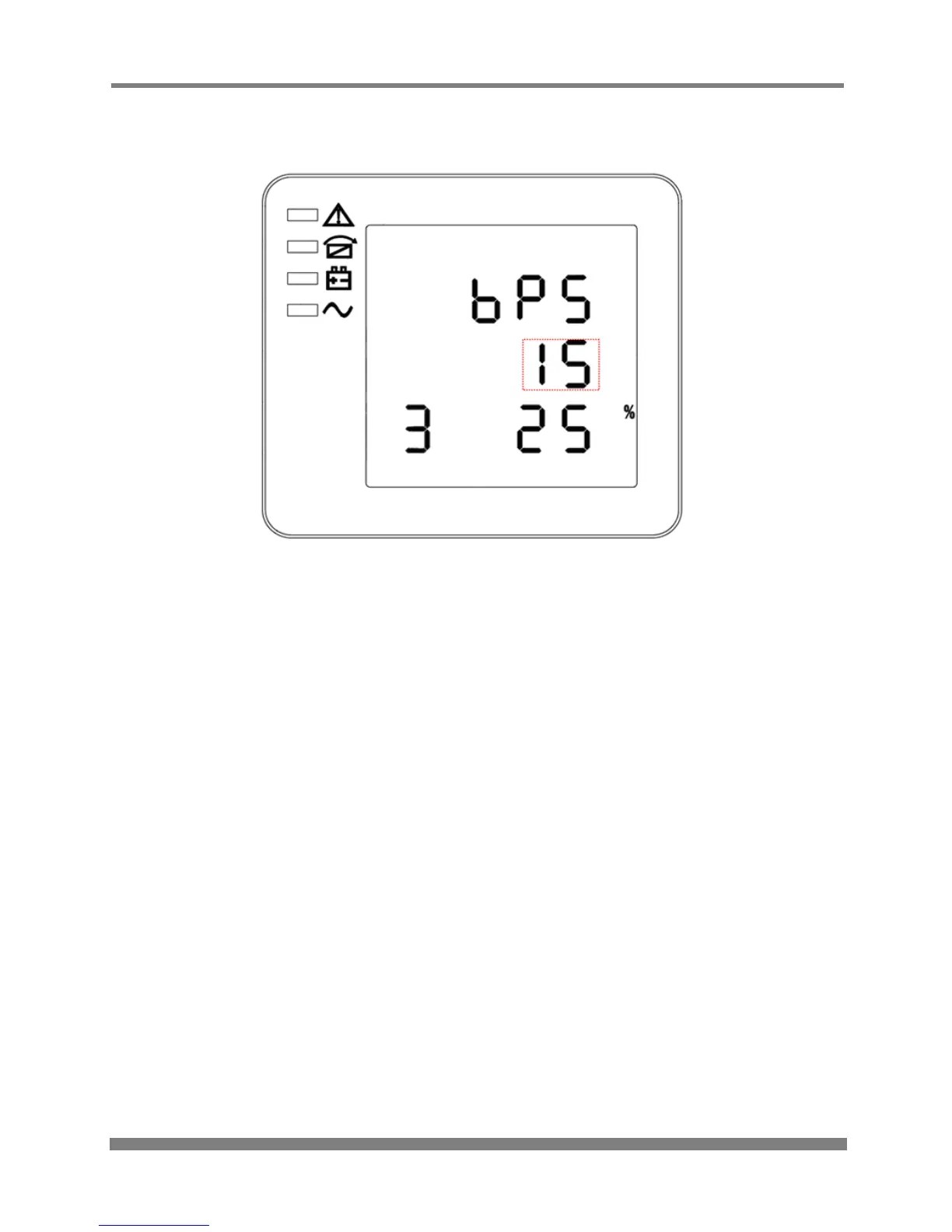

Bypass voltage upper limit setting
BYPASS VOLTAGE UPPER LIMIT SETTING
(Note: the information in the red box will be flashing)
When in battery quantity setting press On or when in bypass voltage lower limit setting press Off
to go to the bypass voltage upper limit setting mode. The bypass voltage upper limit line flashes as in
the above image. Use the Enter button to choose different bypass voltage upper limit. Bypass voltage
upper limit range is 5%, 10%, 15%, 25% (25% is only available for 220V output). Press Off or On to
exit the bypass voltage upper limit setting (save the bypass voltage upper limit setting), and then goes to
battery quantity setting or bypass voltage lower limit setting.
