11

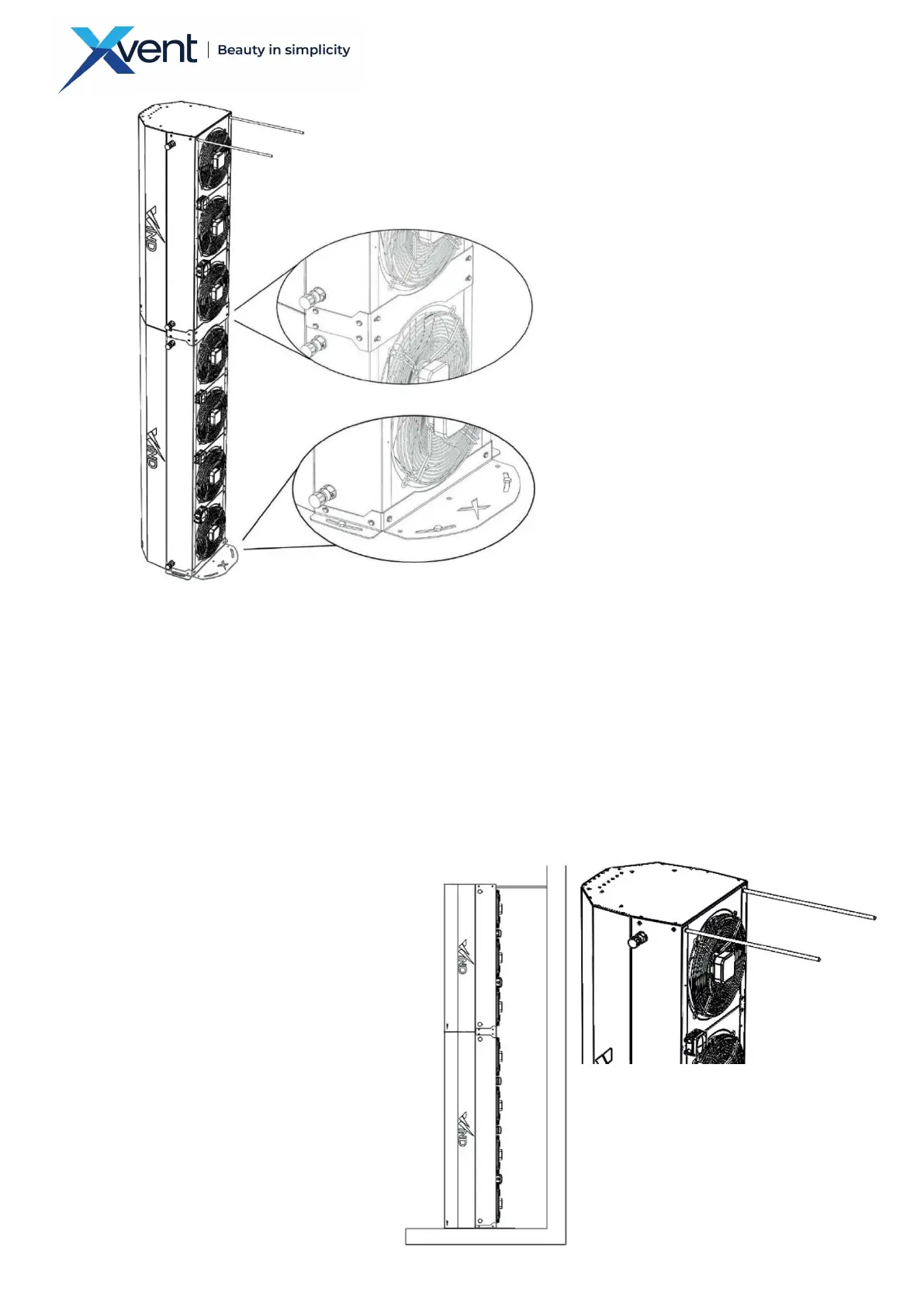

Use recommended accessories (WIND-
CONNECT) to connect the curtain in
case of chaining
Anchoring to the floor using a
rotating holder (WIND-HOLDER) -
not included in the packaging.
Screwing in by using a suitable
connecting material.
3.3.2. Side anchoring of the chained assembly
- When chaining multiple curtains, each subsequent curtain must be additionally anchored from the side to
maintain the stability of the entire assembly.
- The side anchorage shall be made at the highest point of the chained assembly.
- Use the nuts M6 located at the side and at the curtain rear part (by the fan) to anchor the assembly from the
side.
- Select a suitable method and connecting material for anchoring according to the situation at the place of
installation
3.3.3. Maximum height of chained curtains
- The maximum height of the chained
assembly must not be greater than 6.5
m.
- If the height of the assembly is higher
than 6.5 m, it is necessary to select a
method that creates a separate
supporting element for supporting the
subsequent curtains. The supporting
element must be suitable to avoid
loading of the lower-chained assembly
by the top assembly so that it cannot be
damaged or even cause damage to a
property or endanger the health of
persons.
The maximum height of the chained
curtains is 6.5 m + necessary anchoring
during the curtain chaining
