- Installation on the wall using the wall
console and threaded rods M8-10. Consoles
and M8-10 threaded rods are not included in
the delivery. It is ensured by the user
according to local conditions.

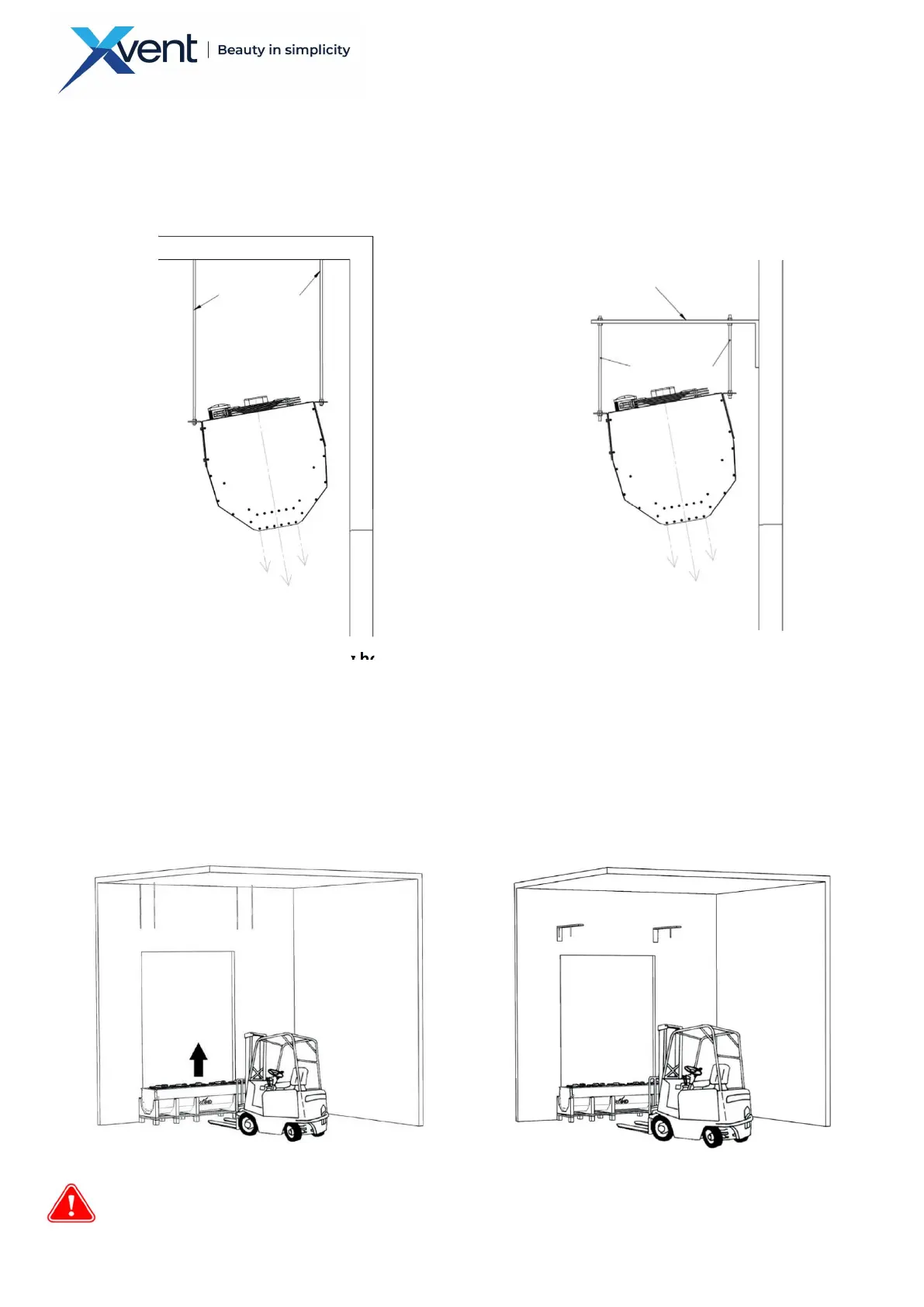

3.6.4.1. Examples of curtain suspension - horizontal installation – chaining
3.6.5. Measurement of anchoring holes for chained curtains
- Measure the anchoring holes according to the selected type of chained curtains and anchoring type
(according to the placement of hinges) - see the main dimensions 2.2 - dimension D
3.6.6. Installation – suspension of the chained curtains into the working position
- Lift the partially unpacked curtain according to section 3.5.1. with mounted mounting hinges using a suitable
handling technique (e.g. forklift) to the prepared assembly point. Partial packaging (pallet, protective
polystyrene) is used to protect the product from damage by scratching. Then continue in chaining according
to the instructions, see 3.6.4
3.7. Installation – suspension of the chained curtains into the working position
- Measure the anchoring holes according to the selected type of chained curtains and anchoring type
(according to the suspension layout) - see the main dimensions 2.2 - dimension D
THREADED RODS
THREADED RODS
AUXILIARY CONSOLE
- Installation on the ceiling using the M8-10
threaded rods. Threaded rods M8-10 are
not included in the delivery. It is ensured
by the user according to local conditions.
