1.4. Contents of the package
WIND 1 air curtain 1x
Quick manual + Safety Data Sheet 1x
Name plate 1x
1.5. Before start of installation
- Before starting the installation, we recommend that you attach the serial nameplate (normally delivered
with the unit in its package) to the operational documentation (e.g.: equipment operating book, etc.),
which is subsequently kept for a later maintenance record and the respective servicing.
- Before starting all installation or maintenance work, it is necessary to switch off the power supply and
secure the switch against switching it on again.
2. Technical parameters
2.1. WIND air curtain design
2.1.1. AXIAL EC FANS
The maximum operating temperature of the fan motor is + 60°C, operating humidity 0-90% non-condensing,
protection class IP54 and IP44 according to the selected curtain type, and the motor insulation class B. The fan and
its board are treated with powder coating RAL 9005.
2.1.2. WATER EXCHANGER
Maximum permissible temperature/pressure of heating medium 120°C / 1.6MPa. The exchanger consists of
an aluminium - copper structure. Water exchanger is connected by connectors with mail thread 1". The
exchanger is equipped with a venting valve on both collectors.
2.1.3. CURTAIN CASING
The sheet metal casing of the curtain consists of two parts. The rear part towards the fan is in RAL 9005
colour. The front part towards the exhaust lamellas is in RAL 7016 colour.
2.1.4. EXHAUST LAMELLAS
The exhaust lamellas are designed from aluminum profiles, which are provided against corrosion and
mechanical damage by "anodizing" (artificial corundum). They are not used to deflect the air stream. The air
flow redirection is tackled in Chapter 3.7.

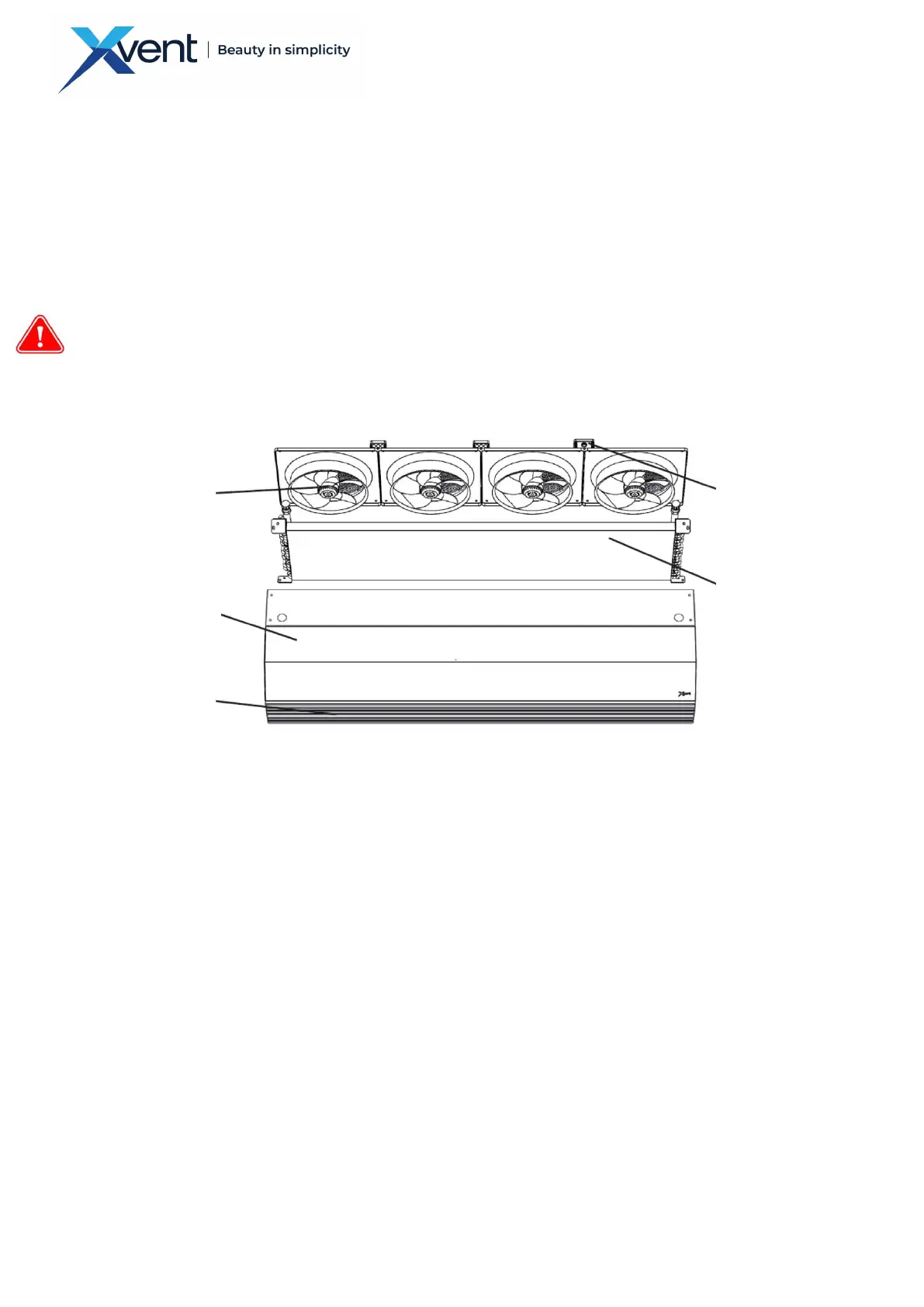

EXHAUST
LAMELLAS
WATER
EXCHANGER
ELECTRICAL
JUNCTION BOXES
