Xvent WiIND Series - Main Dimensions and Requirements for the Minimum Working Space for the WIND Curtain

29 pages

Save Page as PDF

To Next Page

To Previous Page

Verze 1

–

GBR

(

.202

)

502

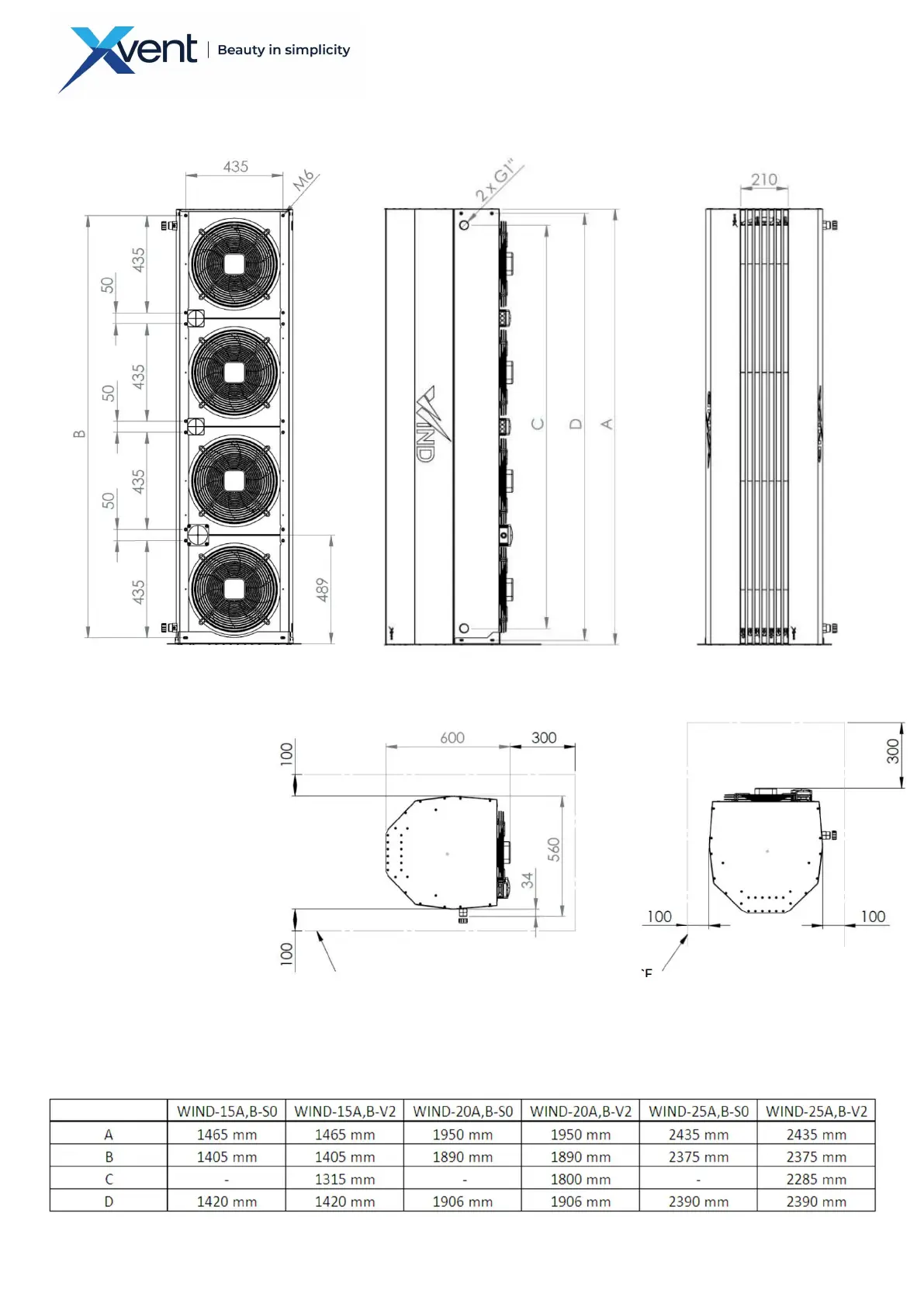

2.2. Main dimensions and requirements for the minimum working space for the WIND curtain

VERTICAL INSTALLATION

HORIZONTAL INSTALLATION

MIN. OPERATING AND INSTALLATION SPACE
