15
- When handling the curtain, take into account its weight and ensure that all safety principles are observed
so that no damage to the property or health of persons occurs.
- Secure the screw connections with the nuts against spontaneous unscrewing and subsequent fall.
3.6. Horizontal installation - curtain chaining
- The curtains to be chained must not be connected before lifting them to the working position . Always
handle only one curtain at a time, intended for chaining. The curtains will be connected to one another
only after anchoring to the wall or the ceiling.
- By chaining – connecting the curtains side by side, it is possible to create an ideal assembly for proper
curtaining of the particular opening, according to its dimensions.
- The correct length of the chained assembly must be at least by 100 mm longer from each side than the actual
length of the curtained opening.
- The curtains are chained next to each other using the "WIND-CONNECT" connecting piece (it is necessary to
order the pieces as accessories).
- The length of the chained curtain is not limited when installing the curtain in the horizontal plane.
3.6.1. Installation of the auxiliary anchoring structure
- Preparation for the curtain suspension according to section 3.5.1.
3.6.2. Determination of the installation location for the chained curtains
- Determine the place for the installation of the chained curtain; the exhaust curtain must be flush with the
frame opening at the minimum distance from the wall (see 3.1.4. and 3.1.5.).
- When chaining the curtains, consider sufficient room for handling in the installation area.
3.6.3. Auxiliary anchoring structures for chained curtains
- Complete the auxiliary anchoring structure according to section 3.5.3. with respect to the weight of the
chained assembly.
- 2 pcs of auxiliary anchoring structures per 1 piece of curtain must always be used (e.g.: 3 pieces of curtains
in a chain - there must be 6 pieces of auxiliary anchor structures).

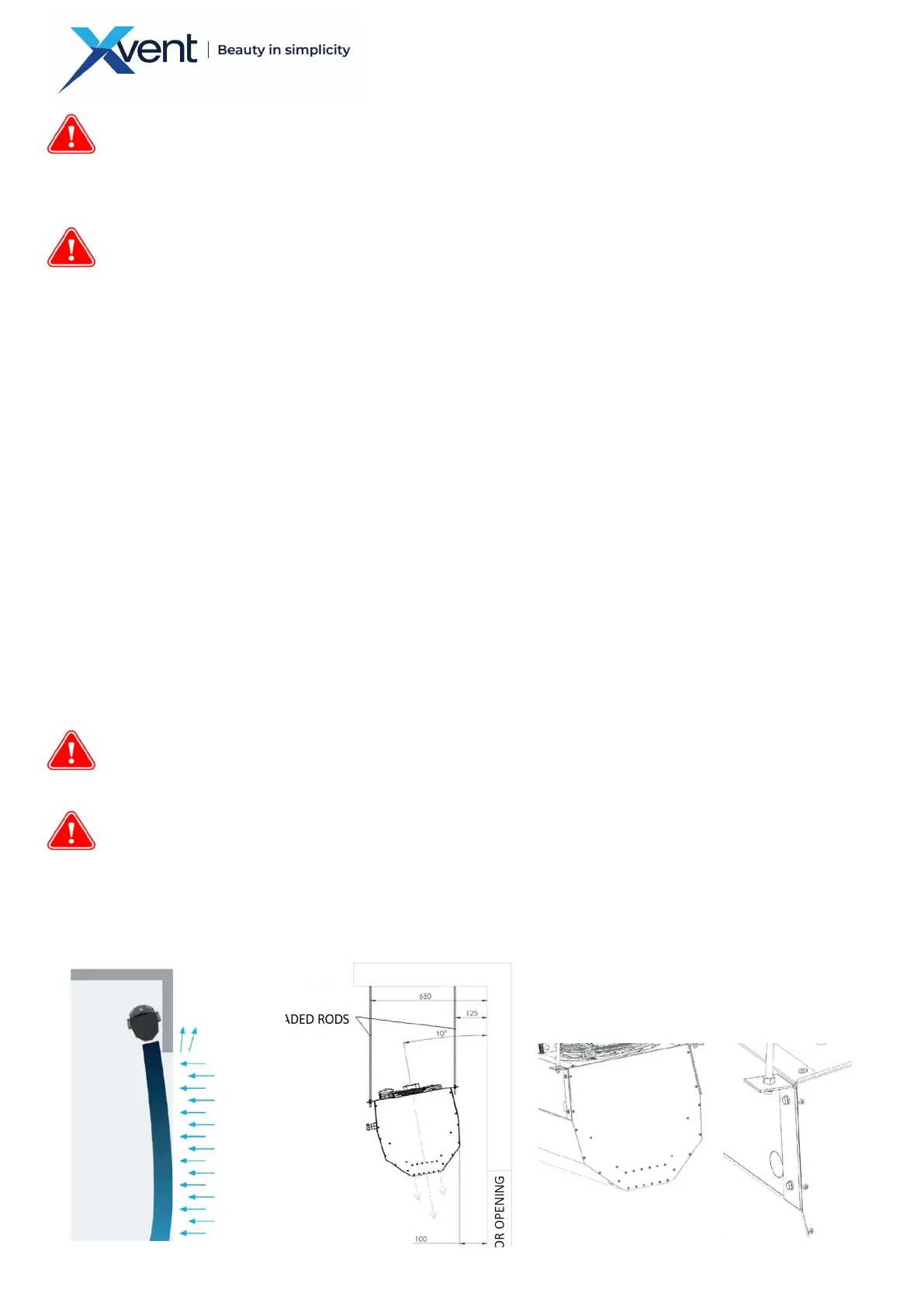

3.6.4. Correct installation in horizontal position during curtain chaining
- For proper rotation of the curtain, i.e. 10° towards the outside area (blowing distance adjustment), the
total length of the hinge at the more distant side must be 90 mm from the wall. The expected lateral
distance of the curtain from the wall is 100 mm.
- If the distance from the wall is larger, the curtain must rotate at a larger angle, and the hinge length must
be recalculated.
- To correctly determine the rotation angle of the curtain, the rule must be observed that the corner of the
curtain exhaust must always be tangentially to the shielded opening.
USE OF ASSEMBLY HINGES (ON EACH CURTAIN USE
4
HINGES) - WIND-HINGE accessories
THREADED RODS
