Xylem FLOJET VFLO 5.0 User Manual

CAUTION: Suggested wiring information is given as a reference. For proper
information please reference local wiring codes and specication guidelines.
WARNING:
• Observe accident prevention regulations in force.
• Use suitable equipment and protection.
• Always refer to the local and/or national regulations, legislation, and codes in force regarding
the selection of the installation site, plumbing, and power connections.
Wire Size Table
Total Wire Length - feet (meters)
Pump 0 - 20 ft 20 - 35 ft 35 - 55 ft
Voltage (0 - 6 m) (6 - 9 m) (9 - 12 m)
12 VDC #14 AWG #12 AWG #10 AWG
(2.5 mm
2
) (4 mm
2
) (6 mm
2
)
24 VDC #16 AWG #14 AWG #12 AWG
(1.5 mm
2
) (2.5 mm
2
) (4 mm)
Electrical installation
Electrical Hazard:
Installation:
Electrical requirements:
WARNING
Wiring must comply with applicable electrical standards and include
a properly sized fuse or circuit breaker. Improper wiring can cause a
re resulting in injury or death.
FIRE HAZARD

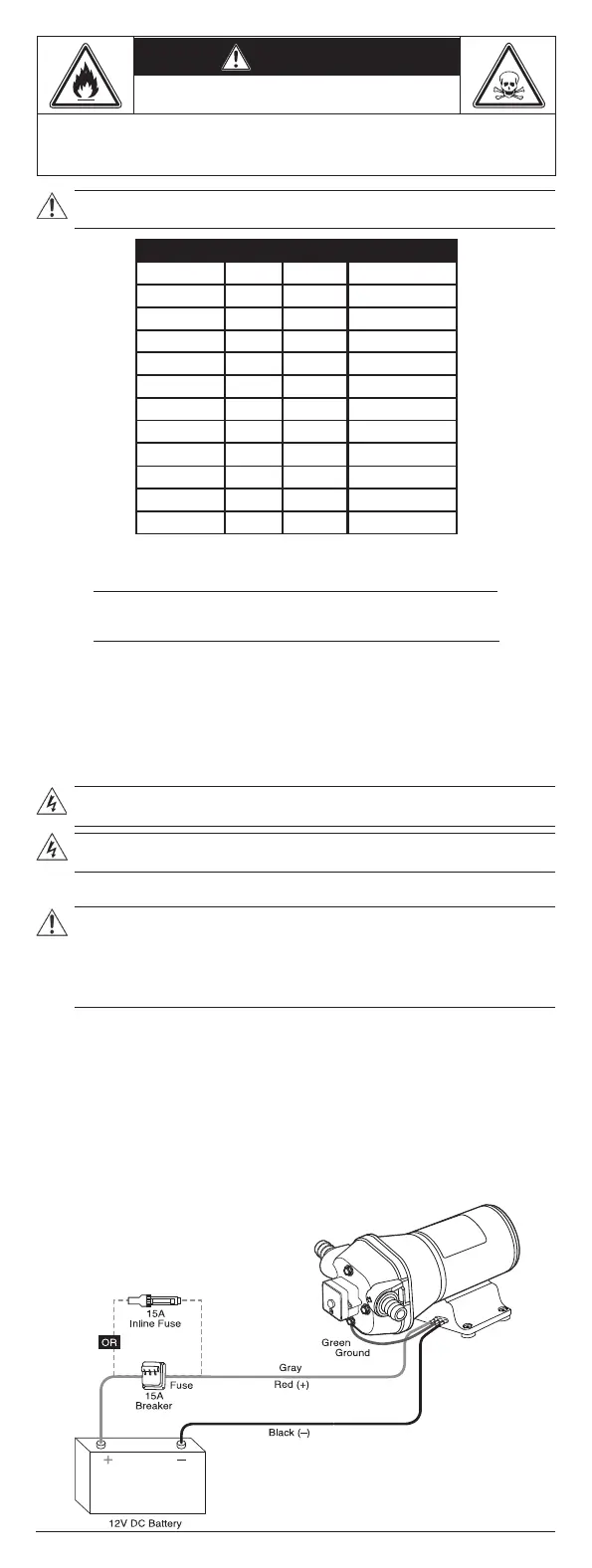

Figure 5.
Electrical Installation
Diagram
WARNING: Make sure that all connections are performed by qualied installation technicians and in
compliance with the regulations in force.
The local regulations in force overrule specied requirements listed below.
Electrical connection checklist
Check that the following requirements are met:
• The electrical leads are protected from high temperature, vibrations, and
collisions.
• The current type and voltage of mains connection must correspond to the
specications on the data plate on the pump.
WARNING: Before starting work on the unit, make sure that the unit and the control panel are isolated
from the power supply and cannot be energized.
5
Model Volts Amps Fuse
R4320343A 24V 6.0 A 10 A Required
R4426343A 24V 6.0 A 10 A Required
R4420343A 24V 6.0 A 10 A Required
R4425509A 24V 6.0 A 10 A Required
R4425511A 24V 6.0 A 10 A Required
R4425512A 24V 6.0 A 10 A Required
R4320143A 12V 12.0 A 15 A Required
R4420143A 12V 12.0 A 15 A Required
R4426143A 12V 12.0 A 15 A Required
R4425503A 12V 12.0 A 15 A Required
R4425505A 12V 12.0 A 15 A Required
R4425506A 12V 12.0 A 15 A Required
