Connection of Level Regulator for Audible or Visible Alarm

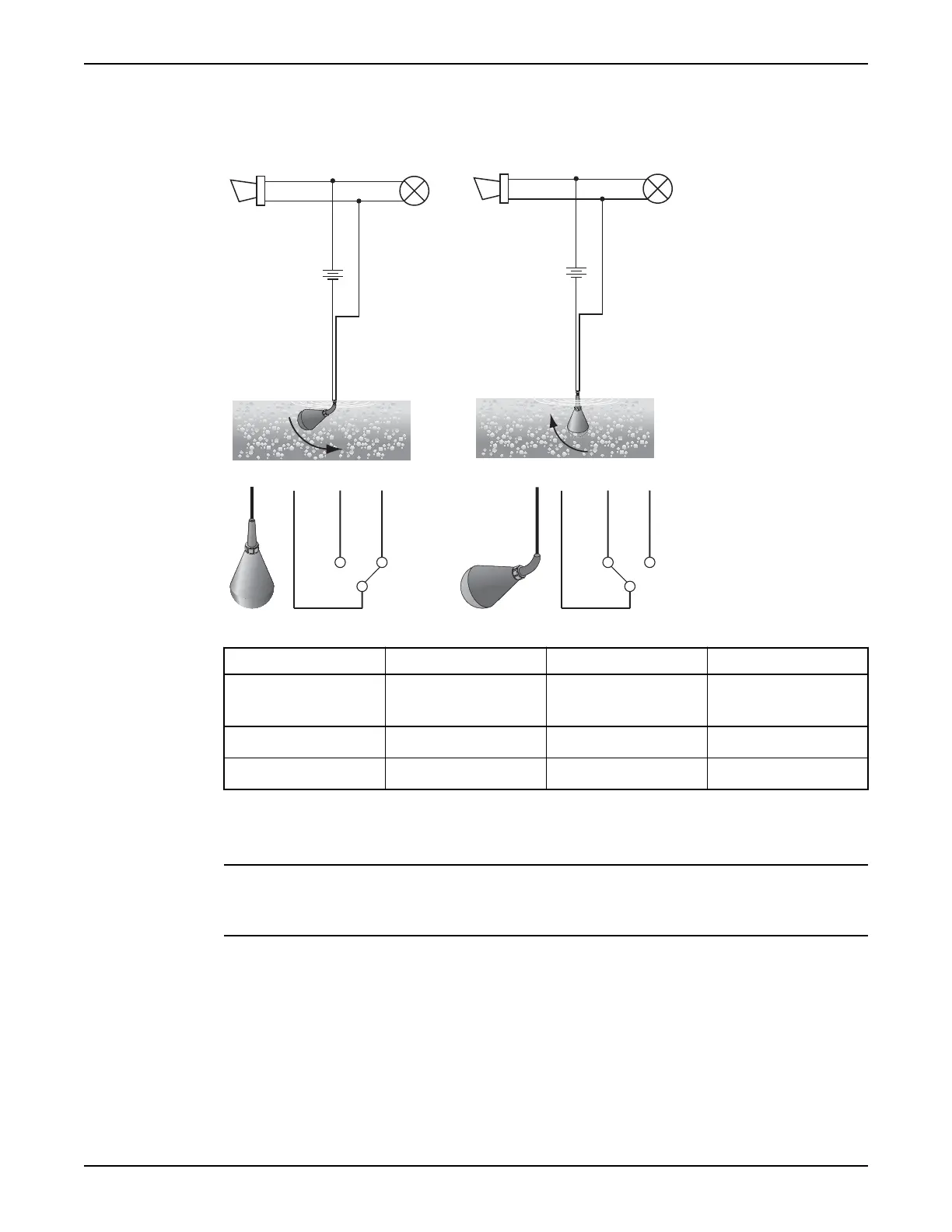

Connection illustration
Alarm
High Level
Alarm
Low Level
1
2
1
3
1 2 3 1 2 3
Connection table
Cable 1 2 3
Color
EU, Grey
US, Red
Black
EU, Brown
US, White
Alarm high level X X Insulate
Alarm low level X Insulate X
Ex Installation
NOTICE:
Intrinsically safe circuits are required for the automatic control system. EX-safety barrier
(that is Prod. no. 84 01 07) must be installed!
