12 e-SHE, e-SHS – Additional Installation, Operation and Maintenance Instructions
3 Technical Description
3.1 Designation
Horizontal centrifugal pump unit with end suction and radial discharge ports, in AISI 316
stainless steel.
3.2 Denomination of the models
Close-coupled construction with an impeller keyed directly to the motor shaft extension
Construction with a rigid coupling keyed to the standardised motor shaft extension

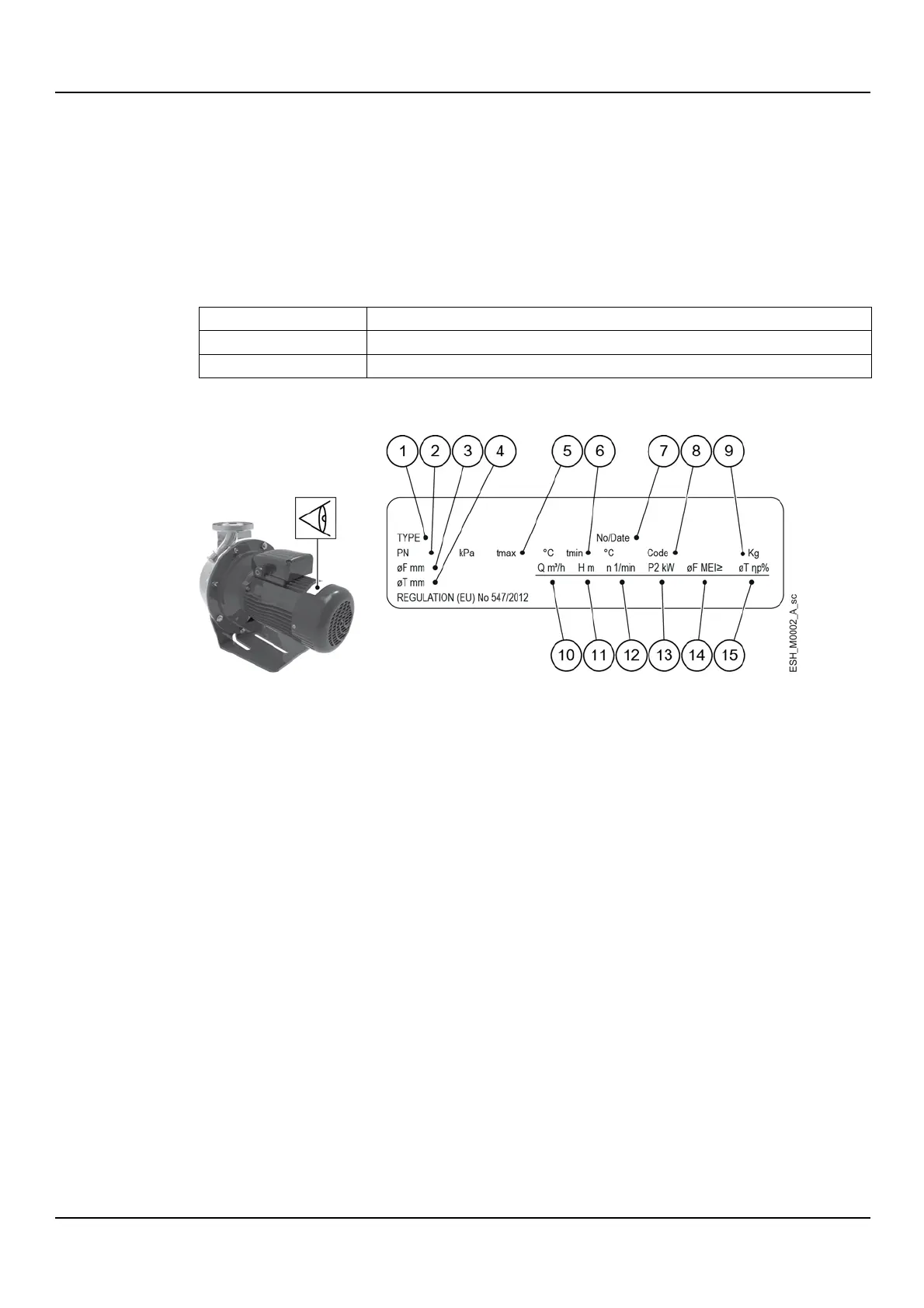

3.3 Data plate
1. Pump unit type
2. Maximum operating pressure
3. Rated impeller diameter
4. Trimmed impeller diameter
5. Maximum liquid operating temperature
6. Minimum liquid operating temperature
7. Serial number + manufacturing date
8. Product code
9. Weight
10. Flow rate range
11. Head range
12. Speed
13. Rated or maximum power
14. Minimum efficiency index
15. Hydraulic efficiency in best efficiency point, at 50 Hz
