14 e-SHE, e-SHS – Additional Installation, Operation and Maintenance Instructions

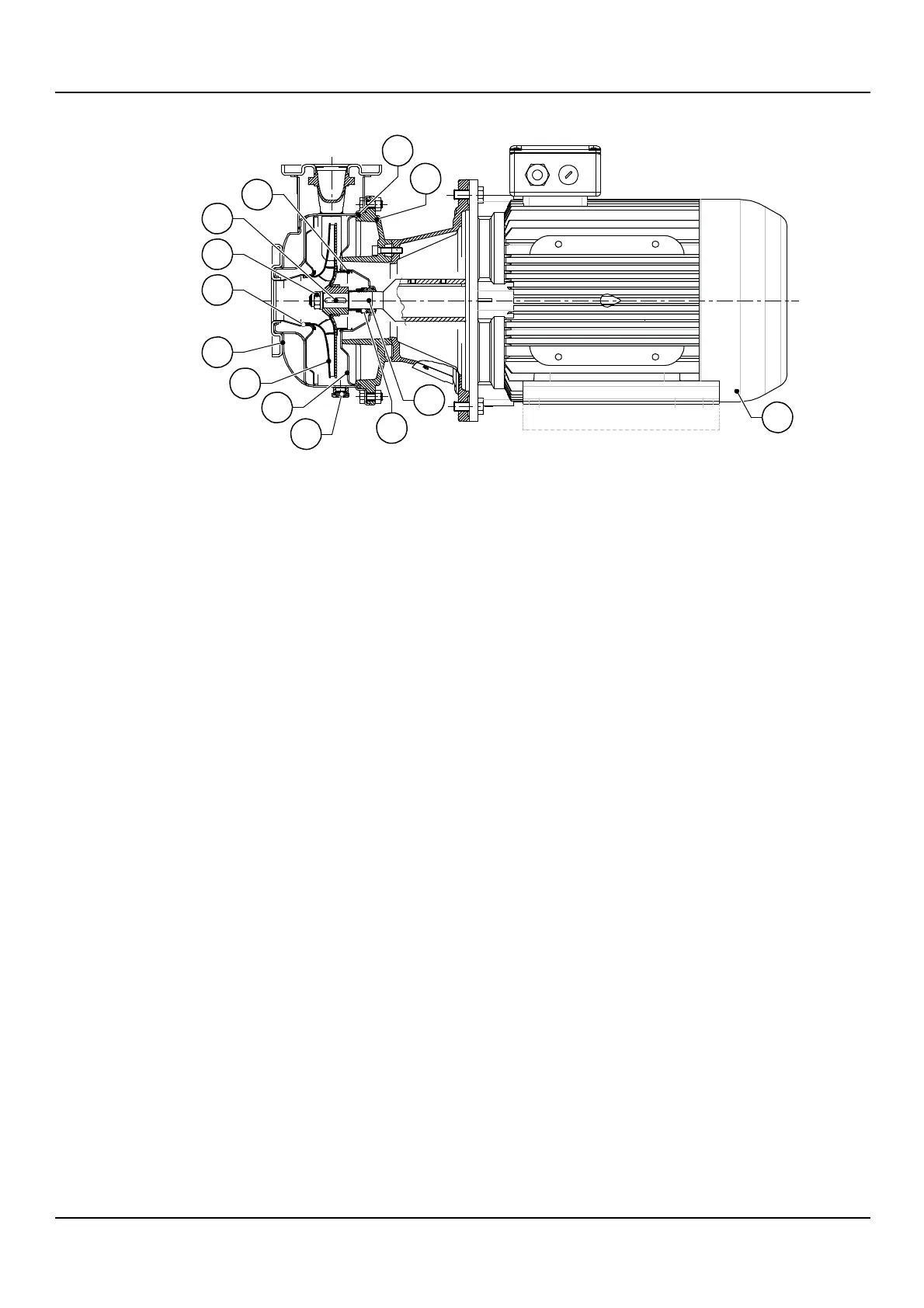

e-SHS
1. Counterwear ring
2. Impeller key
3. Impeller locking nut
4. Wear ring
5. Pump body
6. Impeller
7. Seal housing
8. Drain plug
9. Mechanical seal
10. Rigid coupling
11. Elastomers
12. Motor adapter
13. Motor
3.6 Intended use
• Water supply and water treatment
• Cooling and supply of hot water in civil and industrial systems
• Irrigation and sprinkler systems
• Heating systems.
Observe the operating limits in Technical Information on page 37.
Pumped liquids
• Clean
• Chemically and mechanically non aggressive
• Hot water
• Cold water.
ESH_M0008_B_ds
1
2
3
4
5
6
7
8
12
11
13
10
9
