SonTek, a Xylem brand
128 RiverSurveyor S5/M9 System Manual (February 2013)

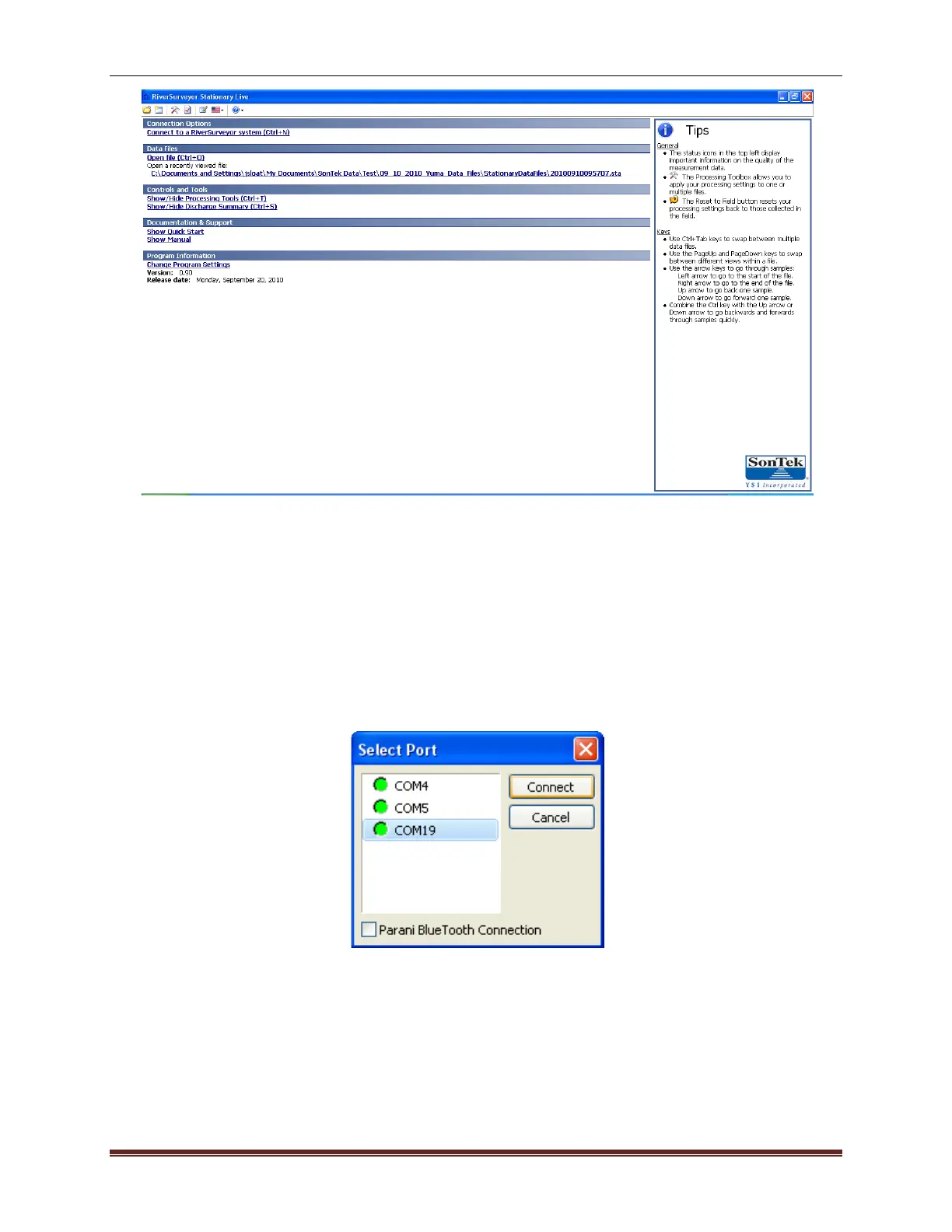

Figure 110. Main Menu
Start the software from the Start button and then Programs | SonTek Software | Stationary-
Measurement. The start screen will be displayed as shown above in Figure 110.
Connect to your system by selecting the Connect to RiverSurveyor System (Ctrl-N).
This will display the Select Port dialog. Select the serial port that your system is connected to
and click the Connect button or press the Enter key. Note: If you are communicating using a
Parani BlueTooth connection select the check box in the lower left hand corner as shown in
Figure 111.
Figure 111. Communications Port
The Start Page screen, shown below in Figure 112, will be displayed once communication with
the system has been established.
