RiverSurveyor S5/M9 System Manual (February 2013)
67

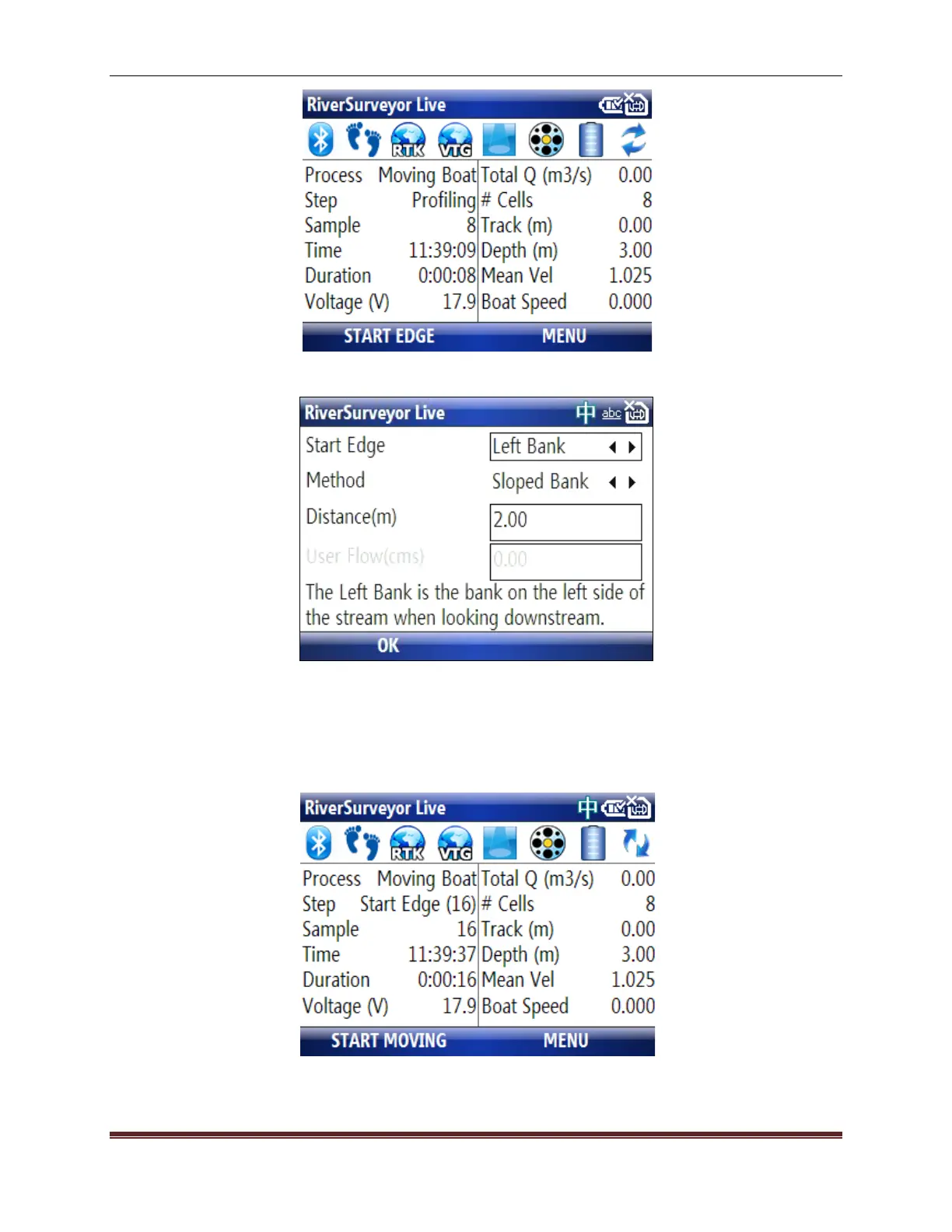

Figure 79. Data collection - Start Edge
Figure 80. Data Collection - Start Edge Inputs
Figure 81 shows the RiverSurveyor collecting data after entering START EDGE inputs. Collect
at least 10 profiles/samples edge and select START MOVING to go to the next step. At this
point, it is important to make sure the system is running and collecting samples. It is also im-
portant to confirm the status icons are valid (see Appendix A).
Figure 81. Data Screen After Start Edge
