SonTek, a Xylem brand
82 RiverSurveyor S5/M9 System Manual (February 2013)

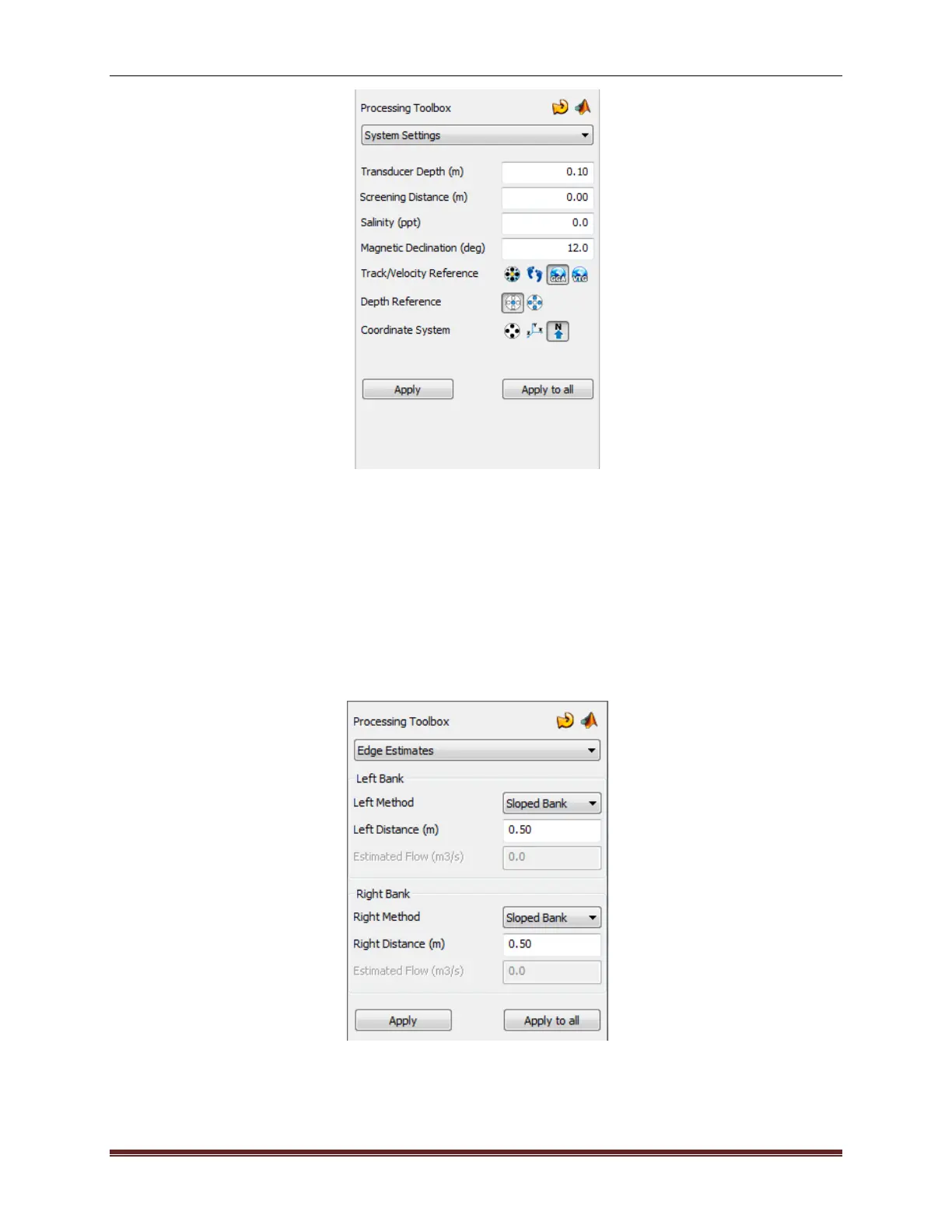

Figure 102. System Settings - Processing Toolbox
Edge Estimates (Figure 103) – Allows the modification of Left/Right Bank settings in order to
better define the characteristics regarding channel width and the slope of the edges. These set-
tings have an important impact on the discharge calculation. Left/Right Method are selected
from a dropdown box. Left/Right Distance and Estimated Flow are manual entry fields.
Figure 103. Edge Estimates - Processing Toolbox
