4.2.2 Overview of the sets (OxiTop set management)
In the OxiTop set management, you can
create new sets (<F1>/[New]),
and within a set, new samples
– max. 12 sets
– per set up to 12 samples
– per sample up to 12 OxiTop
®
-IDS measuring heads
(the maximum number of OxiTop
®
-IDS measuring heads for a meter is
limited to 100)
Delete sets (<F2>/[Delete])
Show details of each set (<MENU/ENTER>)
e.g. overview of the samples in the set
General settings (<ENTER_>)
system settings for the meter (e.g. language etc.)

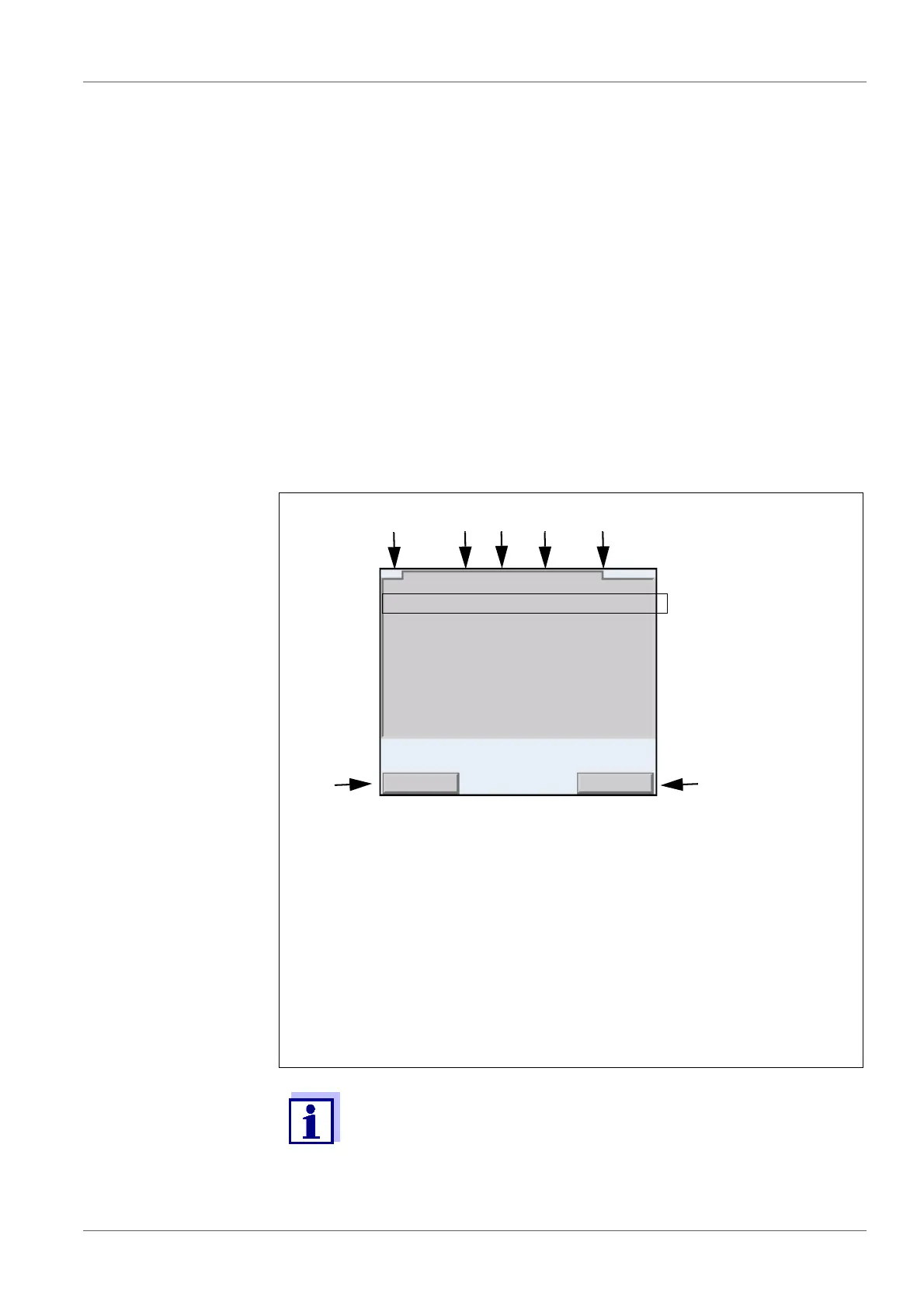

1 Set name
2 Check mark (
= finished):
when the data of the measuring head have been transmitted to the
meter at the end of the specified Duration
3 Status of the set
Number of measured values / maximum number of measured values
4 Type (Measuring mode, Duration)
5 End date of the measurement
6 <F1>/[New] (creates a new set)
7 <F2>/[Delete] (deletes the highlighted set)
Using <><>, select a set.
145
7
6
190216-1
5/5 BOD5 21.05.2019
190216-2 360/360 BOD5 21.05.2019
190216-3 6/7 BOD7 23.05.2019
190217-1 4/4 BOD4h 17.05.2019
190220-1 4/20 BOD20 12.06.2019
190220-2 360/360 BOD5 21.05.2019
RED_F113-1 1/5 p5 25.05.2019
190223-1 137/360 BOD30m 23.05.2019
79 Free meas. heads
OxiTop set management
15.03.2020 08:00
DeleteNew
