08
5.2. Distance and Projection Size
5.3. Angle Adjustment
5.4. Install on the Ceiling

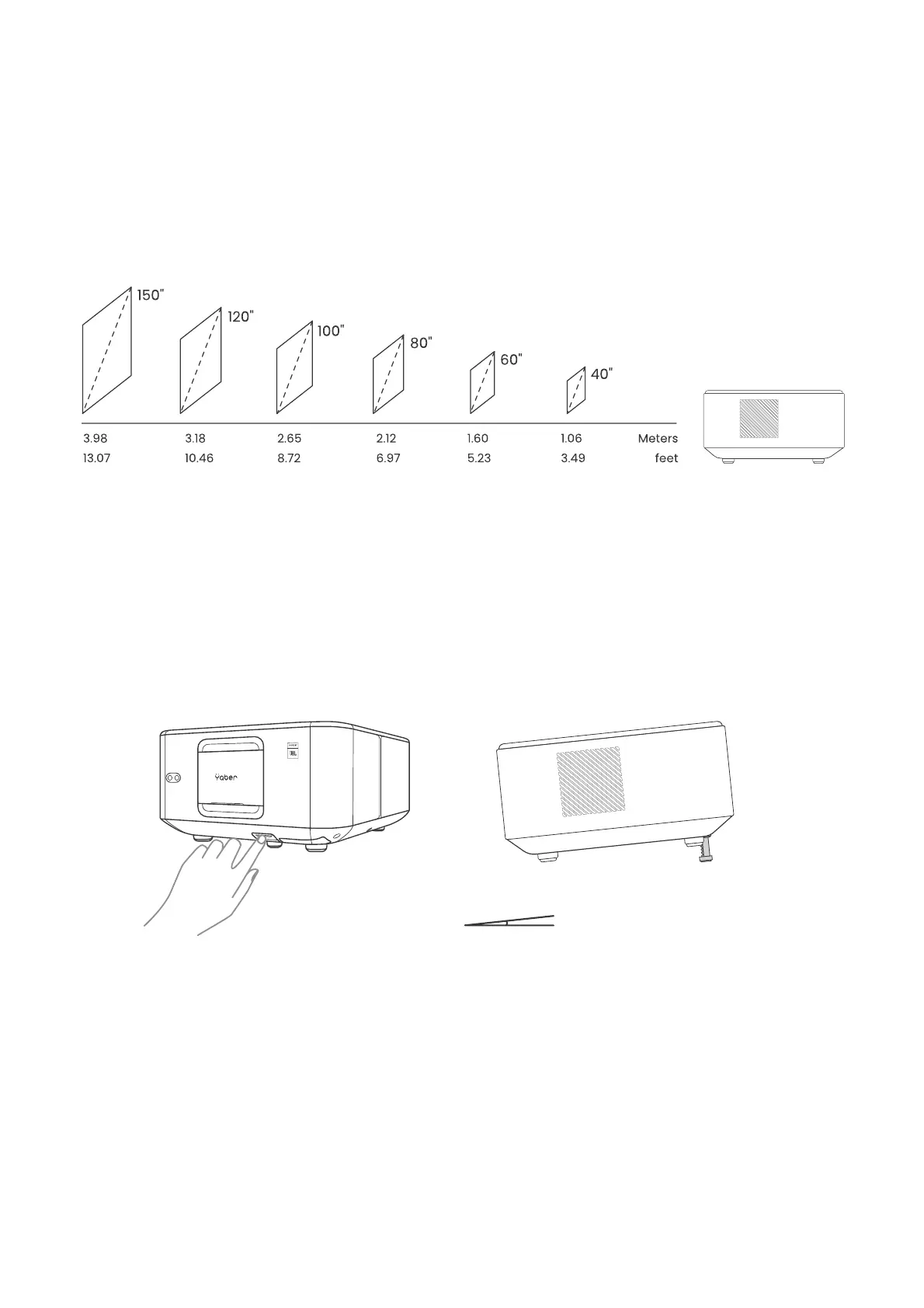

The projection ratio of the K3 is 1.2:1. Please place the projector according to
the corresponding distances in the table below with your desired screen size.
If needed, press this & button to release the adjustable foot pad. Further
adjustments can be made by rotating
the nut.
Step 1: Make sure you have a universal mounting bracket that can fit the
projector.
Step 2: Remove the four rubber pads on the bottom of the projector and
use M5*10mm screws to fix the projector on the bracket to complete the
installation.
9898989898989898989898989898
Massimo grado: 10˚
