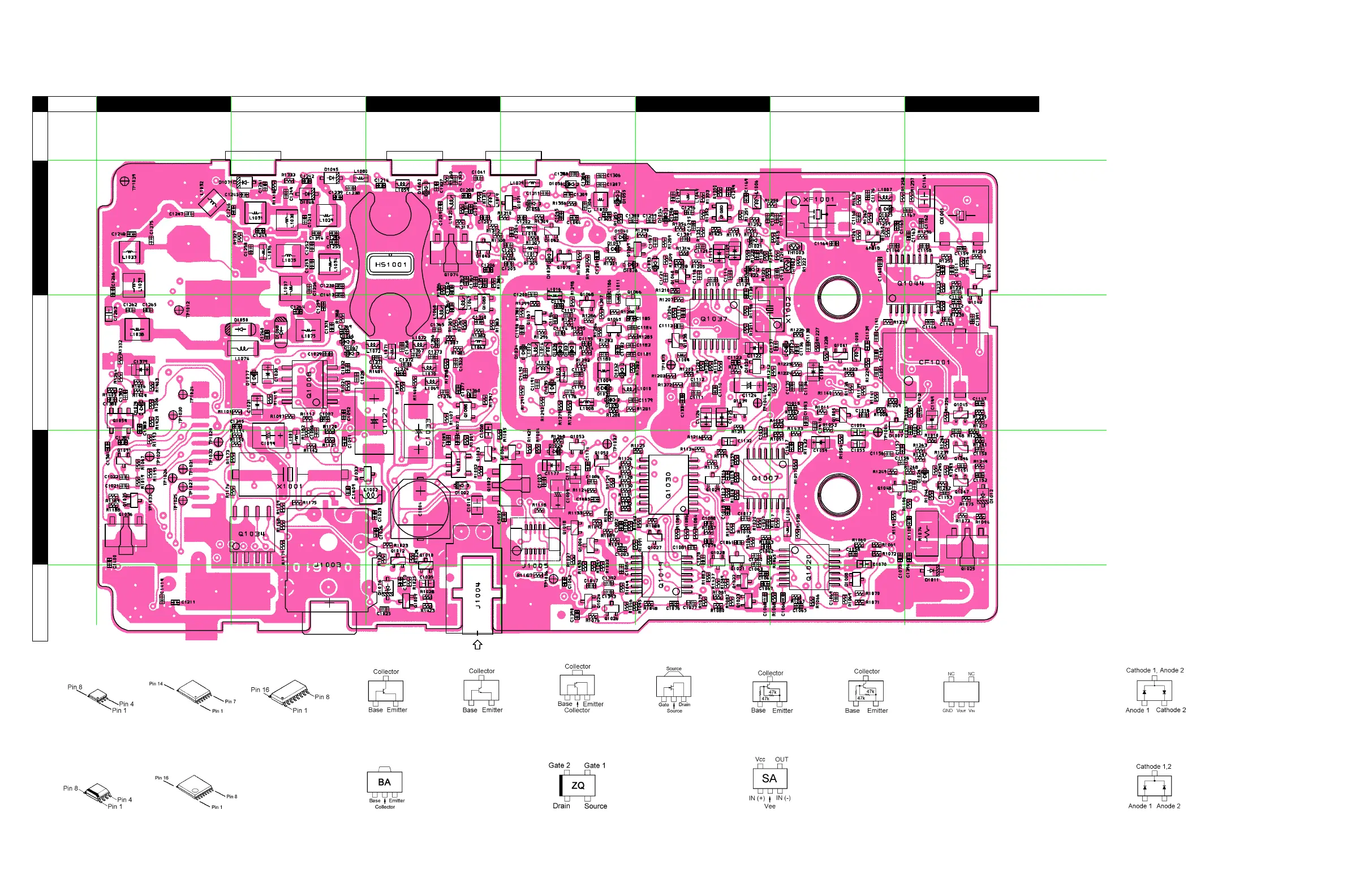

Yaesu FT-60R/E - Parts Layout (Side B)

32
MAIN Unit (Lot. 130 ~ )
FT-60R/E Technical Supplement
Parts Layout (Side B)
ba dc fe
g
1
3
2
4
2SA1774 (FR)
(Q1038)
2SC4617 (BR)
(Q1003, 1004, 1006,
1009, 1012, 1026,
1033, 1035, 1045,
1046, 1047, 1048,
1053)
2SC4915 (QY)
(Q1041, 1049)
DTC144EE (26)
(Q1005, 1010, 1021,
1022, 1023, 1024,
1028, 1029, 1039,
1042, 1050, 1091)
TDA7233D
(D1008)
MB15A01PFV1
(Q1037)
TA31136FN
(Q1044)
DA221 (K)
(D1008, 1020)
DAN222 (N)
(D1007, 1042, 1043)
2SD1664 (DA)
(Q1025)
2SK2596 (BX)
(Q1074)
DTA144EE (16)
(Q1018, 1027, 1043)
AT24C256N
(Q1034)
NJM12902V
(Q1007, 1019, 1020)
2SB1132 (BA)
(Q1002, 1036)
NJU7231F30
(Q1001)
TA75S01 (SA)
(Q1054)
3SK296ZQ (ZQ)
(Q1080, 1085, 1086)
BU2090FS
(Q1030)
