Table 1. Instrument and Controls (See Figure 3, Figure 4, Figure 5, Figure 6, and Figure 7) (Continued)
Item No. Item Function

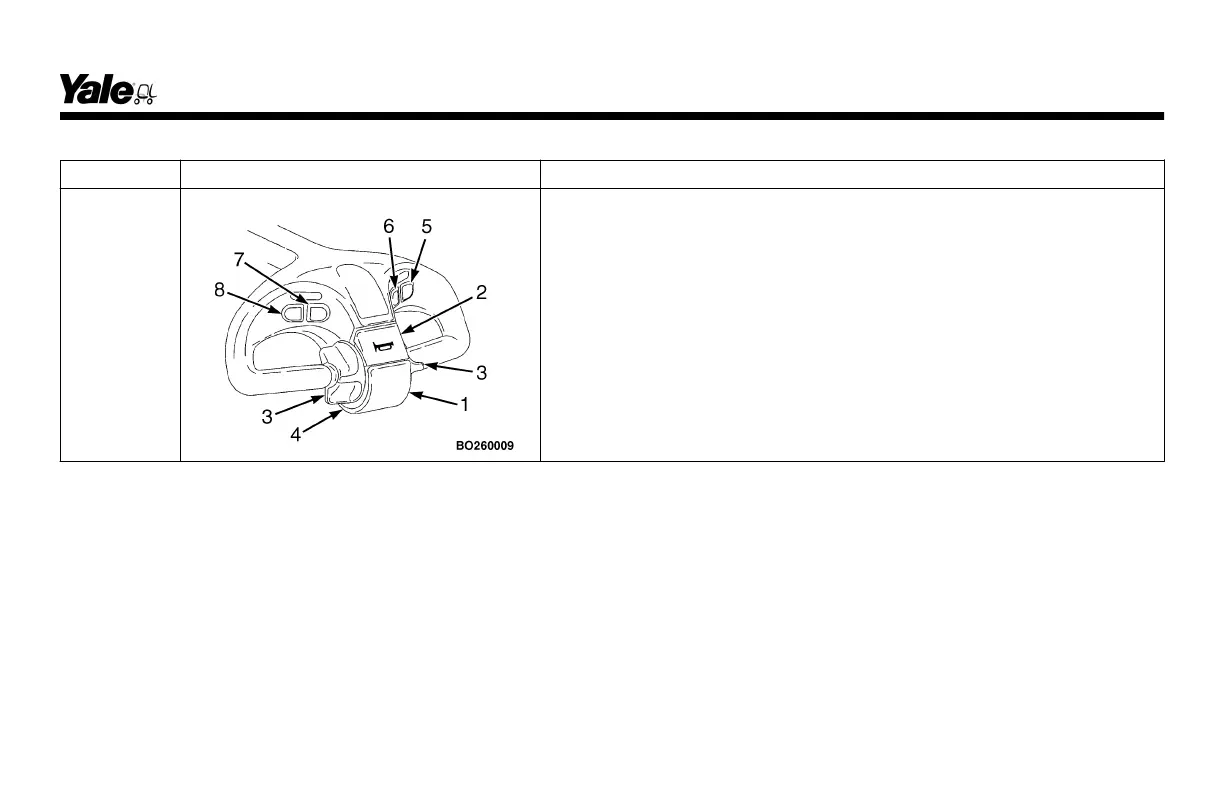

1 Straddle Control Handle Assembly The control handle assembly has the following controls:
(1) Traction Reverse button
(2) Horn button
(3) Direction and speed control
(4) Slow speed button. (Optional)
(5) Proportional Lower button
(6) Proportional Lift button
(7) Lift button (Optional Sideshift - Right)
(8) Lower button. (Optional Sideshift - Left)
Operation of these controls is described in the following paragraphs.
